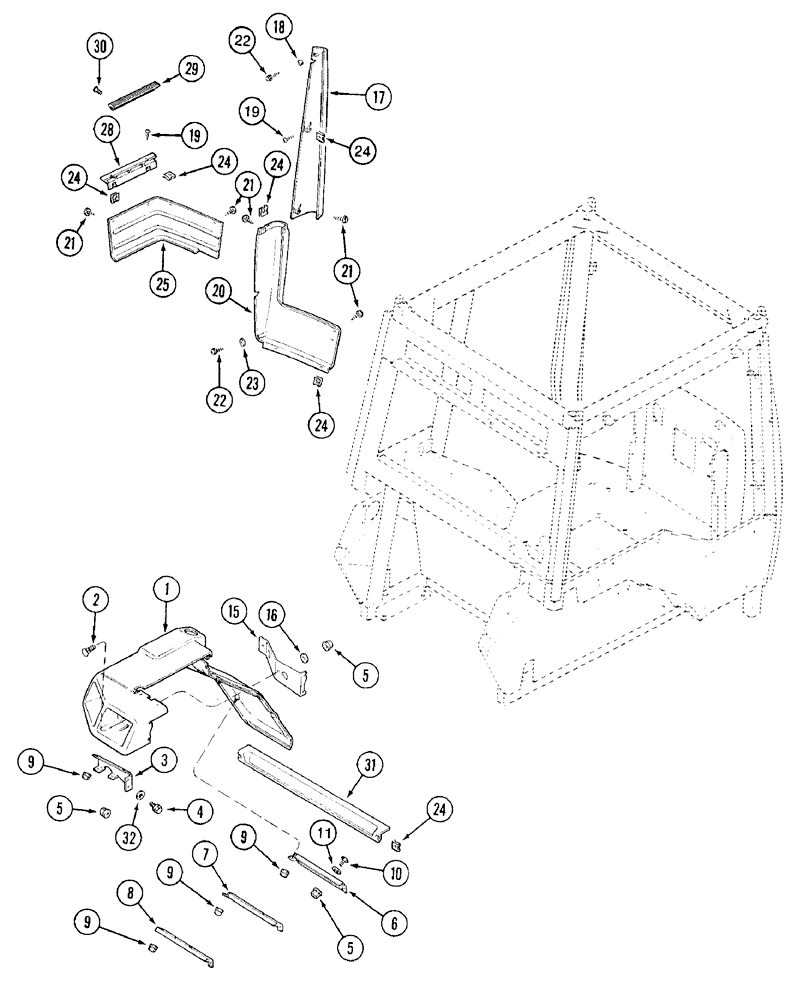

Запчасти Case IH 7220 (9-106) - LEFT REAR FENDER AND PANELS (09) - CHASSIS/ATTACHMENTS

1

97003C2

FENDER

tractor, left

1шт.

2

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

3

1990666C1

SUPPORT

fuel filler tube

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Replaces 1348499C1 bolt

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

1990669C1

SUPPORT

fender, lower left

1шт.

7

1990668C1

SUPPORT

fender, center left

1шт.

8

1990667C1

SUPPORT

fender, upper left

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Mounting, Replaces 632227R1 screw

4шт.

11

198983A1

WASHER

flat, 11/32 x 1-1/8 x 1/16 inch thick, used with item 10 screw

4шт.

15

1283847C1

SUPPORT

BRACKET - rear support

1шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

17

96704C2

COVER

post, upper left

1шт.

18

495-31016

WASHER,#6

Used with item 22 screw on upper post cover, if used

1шт.

19

1270762C1

SELF-TAP SCREW

pan head Phillips, No. 10-16 x 3/4 inch, panel

2шт.

20

96709C1

COVER ASSY

post, lower left

1шт.

20a

220941A1

TAPE

protective, polyurethane, apply tape to 96709C1 cover above

1шт.

21

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

22

140670A1

CAPTIVE WASHER SCREW,Hi-Lo, #8 x 3/4"

hex washer, No. 8 x 3/4 inch, if used, may be replaced by 253419A1 screw with washer, item 33

2шт.

23

495-31016

WASHER,#6

If used

2шт.

24

96900C1

SPRING NUT,U, #10-16, Panel type

1шт.

25

96764C2

PANEL ASSY.

frame, lower left front

1шт.

28

96763C1

PANEL ASSY.

step

1шт.

29

1971318C1

STEP

THRESHOLD - entrance, tractor

1шт.

30

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

2шт.

31

96930C1

PLATE

PANEL - tail lamp

1шт.

32

1990583C1

WASHER

flat, fender mounting

1шт.

33

253419A1

SCREW,Hex Wshr Hd, #8 - 18 x 5/8"

Special, Hi-Lo, if used

2шт.
