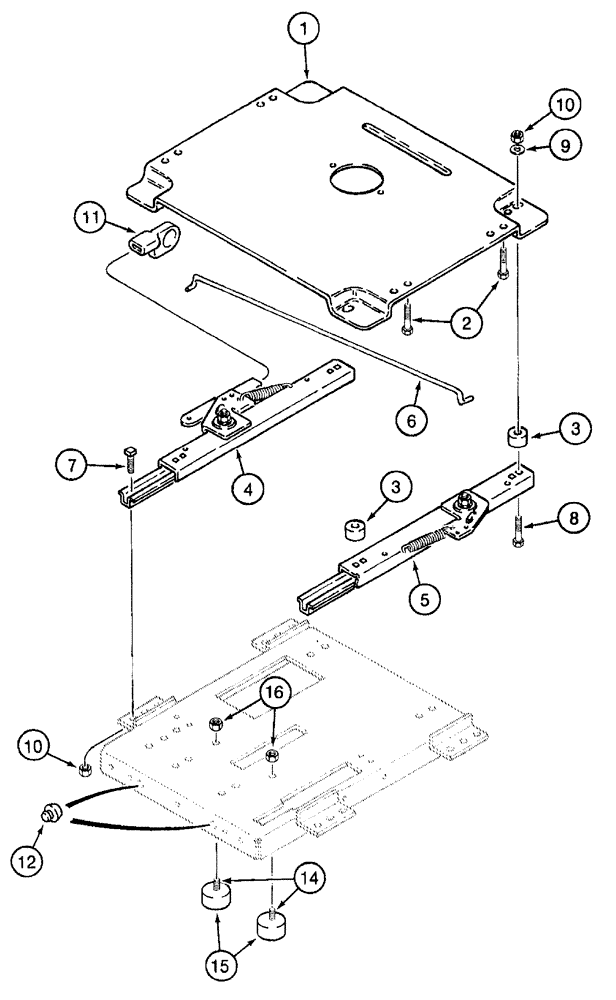

Запчасти Case IH 7220 (9-066) - STANDARD AIR SUSPENSION SEAT - MOUNT PLATE & SLIDES, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS

1999934C2

SEAT ASSY.

standard air suspension, parts list fig'.s 9-64 - 9 72

1шт.

1

134180A1

PLATE

seat adapter

1шт.

2

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

3

134144A1

SPACER

plate

4шт.

1344248C1

SLIDE

KIT - double locking

1шт.

4

NSS

NOT SOLD SEPARAT

SLIDE - locking, with handle

1шт.

5

NSS

NOT SOLD SEPARAT

SLIDE - locking

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - slide

1шт.

7

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

10

231-4115

NUT,5/16"-18, GB

8шт.

11

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, order 1999691C1 knob kit on fig. 9-54

1шт.

12

133422A1

BUMPER

down stop

2шт.

180593A1

KIT

KIT - bumper

1шт.

14

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

15

NSS

NOT SOLD SEPARAT

BUMPER - rubber

2шт.

16

231-1444

NUT,1/4"-20, GB

2шт.

NSS

NOT SOLD SEPARAT

SPACER - not shown

2шт.
