Запчасти Case IH 7220 (9-030) - HOOD LOWER SIDE PANELS AND SCREENS, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

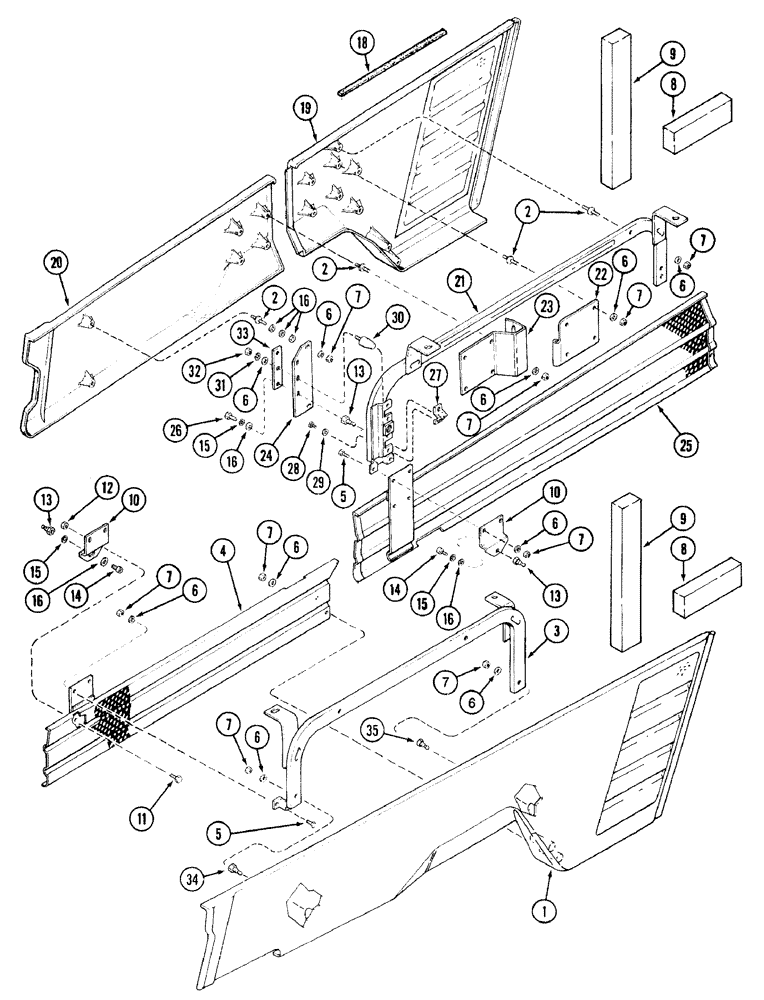

Схема запчастей Case IH 7220 - (9-030) - HOOD LOWER SIDE PANELS AND SCREENS, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS
6
7
10
7
2
6
7
35
16
27
16
14
5
22
2
7
28
15
11
25
21
7
7
8
19
20
15
9
6
26
6
6
15
33
34
31
7
32
6
1
7
13
10
4
24
3
6
23
13
12
6
18
16
13
14
6
9
30
7
5
8
6
2
29
16

Артикул

Название

Примечание

Количество

1

105506A1

PANEL ASSY.

screen, hood, lower right side, includes item 36

1шт.

2

1968127C1

STUD

1/4 inch NC

1шт.

3

122967A1

SUPPORT

side panel, right

1шт.

4

1960793C5

PROTECTION PLATE

SCREEN - hood, side right

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

7

231-1444

NUT,1/4"-20, GB

1шт.

8

1993508C1

SEAL

lower side panel, front

2шт.

9

1974407C2

SEAL

lower side panel

2шт.

10

1960849C1

BRACKET

screen latch outer

2шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

13

1348465C1

BALL STUD,#10 - 32

rear side panel latch

1шт.

14

463-61010

SCREW,Hex, #10 - 32 x 5/8"

2шт.

15

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

16

495-31022

WASHER,#10

1шт.

18

1348429C1

SEAL

lower side panels, top, 15-3/16 inch (386 mm) long, cut from 252768A1 bulk seal

2шт.

19

105505A1

PANEL ASSY.

screen, hood front low, includes item 36

1шт.

20

1289399C3

PANEL ASSY.

hood, rear lower side left

1шт.

21

122969A1

SUPPORT

side panel, left

1шт.

22

1348384C1

HINGE

side panel, front, left

1шт.

23

1348383C1

HINGE

side panel, rear, left

1шт.

24

1968038C3

SUPPORT ASSY.

latch outer

1шт.

25

1960792C5

PROTECTION PLATE

SCREEN - hood side, left

1шт.

26

463-61010

SCREW,Hex, #10 - 32 x 5/8"

2шт.

27

1960763C3

LATCH

RECEIVER - left rear side panel stud

2шт.

28

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

self-tapping, pan slotted, No. 8-18 x 1/2 inch, if used

4шт.

28a

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips, If used, not shown

4шт.

29

495-21019

WASHER,#8

4шт.

30

A149863

GUIDE

left rear side panel

1шт.

31

492-11025

LOCK WASHER,1/4"

1шт.

32

425-104

NUT,1/4"-20, Cl 5

1шт.

33

1968137C1

PLATE ASSY.

latch, outer rear, no longer required

1шт.

34

1348552C1

STUD,9/32" - 16 x 0.7"

mounting, lower side panel

1шт.

35

1348465C1

BALL STUD,#10 - 32

rear side panel latch

2шт.

36

1348479C1

FOAM

STRIP - wear, 517 mm (20-3/8 inch) long, cut from 1348532C1X bulk strip, not shown

2шт.

252768A1

RUBBER SEAL,15240mm L

SEAL - foam, adhesive back, 6.4 (1/4) x 10.0 (25/64) x 15240 mm (600 inch) long, replaces 1348430C1

1шт.

1348532C1X

ROLL

STRIP - wear, 12.7 mm (1/2 inch) x 10.97 meters (36 foot) long

1шт.

Выбрано товаров: 38
