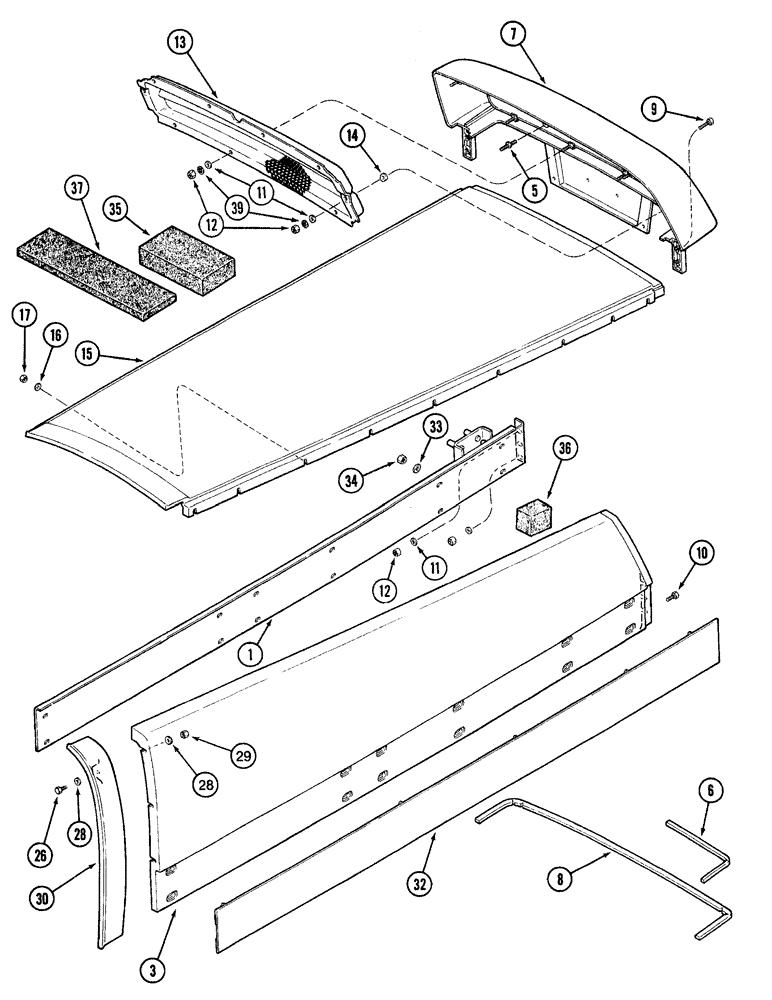

Запчасти Case IH 7220 (9-026) - HOOD, UPPER SIDE PANELS AND UPPER GRILLE, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

1

1348364C1

SILL

FRAME - hood side, right, shown

1шт.

1

1348455C1

SILL

FRAME - hood side, left

1шт.

3

1348355C1

PANEL ASSY.

hood, upper right, shown

1шт.

3

1289341C2

PANEL ASSY.

hood, upper left

1шт.

5

1968127C1

STUD

1/4 inch NC

1шт.

6

1334318C1

SEAL - foam, adhesive back, 343 mm (13-1/2 inch) long, cut from 252768A1 bulk seal, upper grille housing, bottom right

1шт.

6

1334317C2

FOAM INSULATION,6.4mm W x 343mm L x 6.4mm Thk

foam, adhesive back, 343 mm (13-1/2 inch) long, cut from 252768A1 bulk seal, upper grille housing, bottom left

1шт.

7

1289074C2

HOUSING

upper grille

1шт.

8

1348428C1

SEAL

foam, adhesive back, 1042 mm (41 inch) long, cut from 252768A1 bulk seal, upper grille

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

20шт.

12

231-1444

NUT,1/4"-20, GB

20шт.

13

1976792C1

SIEVE

SCREEN - grille, upper

1шт.

14

A147030

SPACER

SPACER - grille screen

2шт.

15

1289314C1

PANEL ASSY.

HOOD - top center

1шт.

16

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

18шт.

17

231-1444

NUT,1/4"-20, GB

18шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

28

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

12шт.

29

231-1444

NUT,1/4"-20, GB

6шт.

30

1289322C1

HOUSING

COVER - hood, to cab transition, right, shown

1шт.

30

1289321C1

HOUSING

COVER - hood, to cab transition, left

1шт.

32

1974411C1

PANEL

decal

2шт.

33

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

20шт.

34

131-205

LOCK NUT,5/16"-18

heavy hex, self-locking, 5/16 inch NC

20шт.

35

1342160C1

SEAL

, Serial Range: hood-radiator

1шт.

36

1968082C1

SEAL

hood to radiator corner

2шт.

37

1342164C1

SEAL

, Serial Range: hood-radiator

1шт.

39

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

10шт.

252768A1

RUBBER SEAL,15240mm L

SEAL - foam, adhesive back, 6.4 (1/4) x 10.0 (25/64) x 15240 mm (600 inch) long, replaces 1348430C1

1шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
