Запчасти Case IH 7220 (9-018) - ENGINE MOUNT AND SIDE FRAME (09) - CHASSIS/ATTACHMENTS

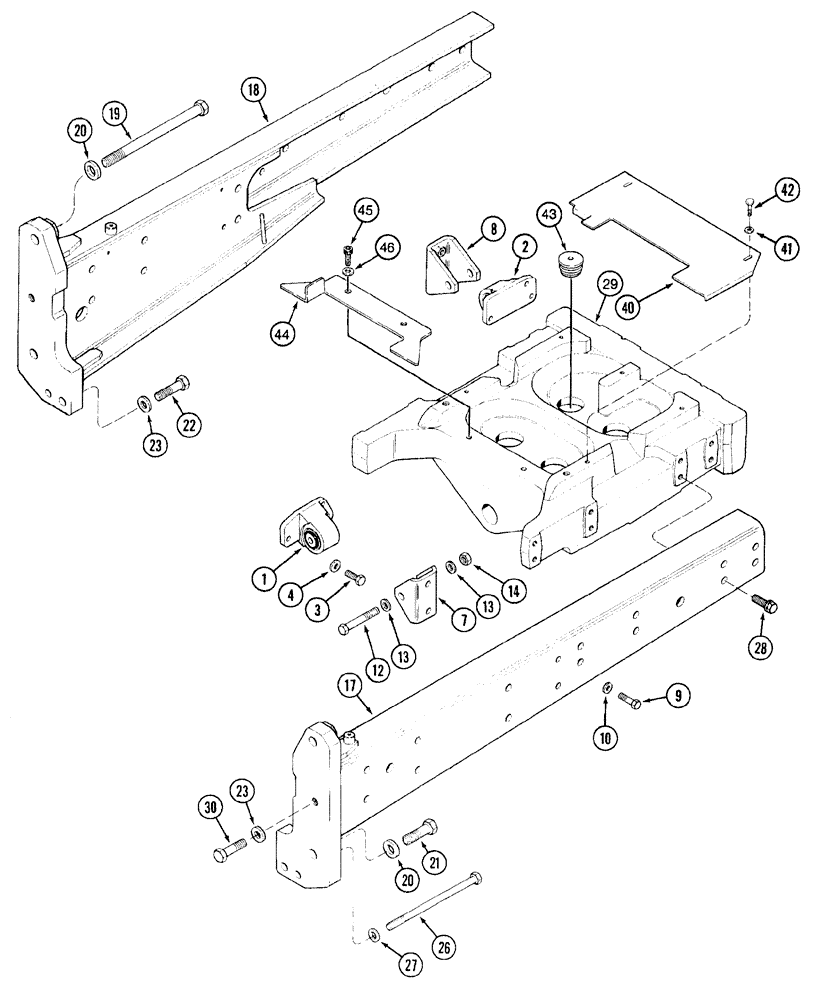

Схема запчастей Case IH 7220 - (9-018) - ENGINE MOUNT AND SIDE FRAME (09) - CHASSIS/ATTACHMENTS
45
3
21
40
20
29
13
46
4
13
23
20
8
9
22
19
28
17
41
26
7
12
27
14
44
10
23
18
2
1
43
42
30

Артикул

Название

Примечание

Количество

1

1334670C4

SUPPORT

MOUNT - engine, right

1шт.

2

1334669C4

SUPPORT

MOUNT - engine, left

1шт.

3

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

6шт.

7

1960839C1

SUPPORT

BRACKET - engine mount, right

1шт.

8

1960841C1

SUPPORT

BRACKET - engine mount, left

1шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

12

826-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

13

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

4шт.

14

825-1416

NUT,M16, Cl 8

2шт.

17

1289057C2

RAIL

FRAME - side rail, right

1шт.

18

1289056C1

RAIL

FRAME - side rail, left

1шт.

19

828-22305

BOLT,Hex, M22 x 2.5 x 305mm, Cl 10.9

2шт.

20

1289069C1

WASHER

flat, hardened, hardened

4шт.

21

828-22070

BOLT,Hex, M22 x 2.5 x 70mm, Cl 10.9

2шт.

22

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

23

A177650

WASHER

flat, hardened

4шт.

26

828-16280

BOLT,Hex, M16 x 2 x 280mm, Cl 10.9

2шт.

27

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened

2шт.

28

A169100

BOLT

hex flange 16 - 2 x 45 mm, class 10.9

16шт.

29

137316A3

SUPPORT ASSY.

BOLSTER - steering, front end, replaces A185918 support

1шт.

30

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

40

1955424C1

PLATE

bolster cover, if used

1шт.

41

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), If used

2шт.

42

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If used

5шт.

43

192896A1

PLUG

front support, if used

4шт.

44

225151A1

PROTECTION PLATE

Bolster cover, if used

1шт.

45

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

If used

2шт.

46

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

2шт.

Выбрано товаров: 30
