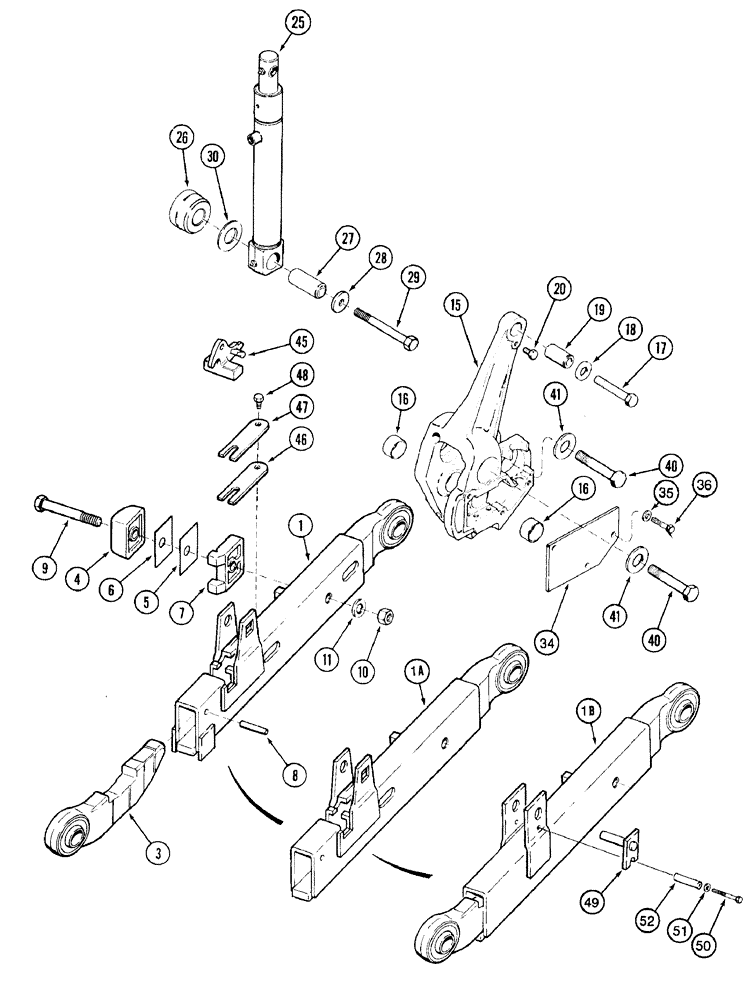

Запчасти Case IH 7220 (9-008) - HITCH LOWER LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

130316A1

DRAG LINK

lower lift, left-hand front, not shown, no longer available, order 1331893C8 link

1шт.

1

130317A1

DRAG LINK

lower lift, right-hand front, no longer available, order 1331894C8 link

1шт.

1a

1331893C8

LIFTING ROD

LINK - lower lift, left-hand front, telescoping, not shown, if used

1шт.

1a

1331894C8

LIFTING ROD

LINK - lower lift, right-hand front, telescoping, if used

1шт.

1b

134313A3

LOWER LINK

lift, left-hand, rigid, not shown, if used

1шт.

1b

134318A3

LOWER LINK

lift, right-hand, rigid, if used

1шт.

3

1282114C4

LOWER LINK

lift, left-hand rear, not shown

1шт.

3

1282115C4

LOWER LINK

lift, right-hand rear

1шт.

4

1286752C1

BLOCK

BUMPER - cam

2шт.

1965317C1

SHIM

KIT - bumper, kit no longer available, order components

1шт.

5

70479C1

SHIM

1/32 inch, bumper

2шт.

6

70480C1

SHIM

1/16 inch, bumper

12шт.

7

1266811C1

SPACER

cam bumper

2шт.

8

738-31260

PIN,M12 x 60, Coiled

roll, 12 x 60 mm

2шт.

9

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

hex, self-locking, NC

2шт.

11

495-11081

WASHER,3/4", SAE

2шт.

15

1347900C3

SUPPORT ASSY.

BRACKET ASSEMBLY - lower link, left-hand, not shown, includes Ref. 16

1шт.

15

1347902C3

SUPPORT ASSY.

BRACKET ASSEMBLY - lower link, right-hand

1шт.

16

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

bracket

2шт.

17

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

18

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened

2шт.

19

1347983C1

BUSHING,16.38mm ID x 28.4mm OD x 56mm L

bracket

2шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, hitch , for correct assembly and components, see fig'.s 8-34 or 8-36

2шт.

26

1998150C1

SPACER

cylinder mounting

2шт.

27

1998013C1

BUSHING

cylinder

2шт.

28

145678C3

WASHER

flat, 17 mm

2шт.

29

828-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

30

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

2шт.

34

1347904C1

LARGE PLATE

PLATE, LARGE sensing pin retaining

2шт.

35

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

36

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

40

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

41

896-16024

WASHER,26mm ID x 56mm OD x 6mm Thk

flat, 26 x 56 x 6 mm

4шт.

45

398399R1

LATCH

lower link

2шт.

46

382192R1

SPRING

link latch

2шт.

47

382193R1

SPRING

stiffener

2шт.

48

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

Replaces 414-58 bolt

2шт.

49

125685A1

PIN

Used with rigid lower link, if used

2шт.

50

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

51

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

52

D95748

SPACER,10.34mm ID x 15.88mm OD x 7.11mm L

pin

2шт.
