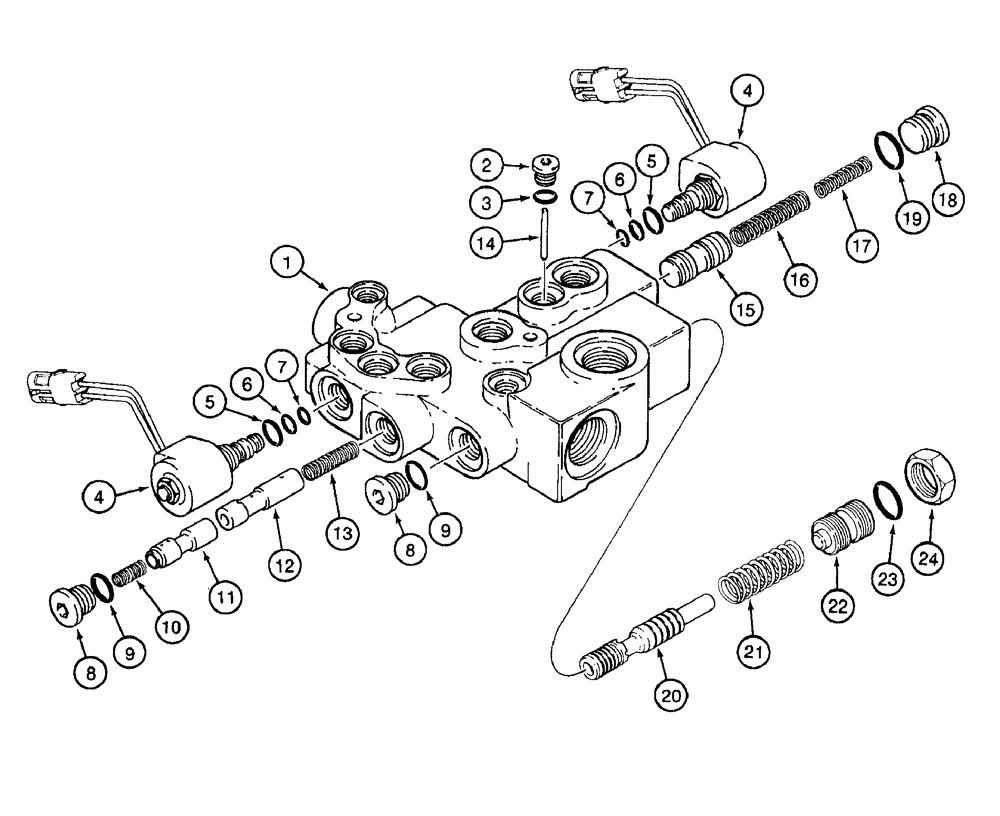

Запчасти Case IH 7220 (8-012) - PTO VALVE ASSEMBLY, TRACTOR P.I.N. JJA0064978 AND AFTER (08) - HYDRAULICS

134850A1

VALVE

ASSEMBLY - PTO

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, PTO

1шт.

2

9625178

PLUG,9/16" - 18 ORB

1шт.

110415A1

SOLENOID

VALVE ASSEMBLY - 12 volt, differential lock

2шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - differential lock, 12 volt

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

144487A1

SPRING

brake

1шт.

11

143740A1

SPOOL

PTO brake

1шт.

12

143739A1

SPOOL

PTO modulator

1шт.

13

144486A1

SPRING

reducing

1шт.

14

139402A1

PIN

retaining

1шт.

15

187224A1

PISTON

modulator

1шт.

16

139404A1

SPRING

outer, modulator

1шт.

17

139405A1

SPRING

inner, modulator

1шт.

18

9841223

PLUG,1-1/16" - 12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

1986880C1

SPOOL

regulator

1шт.

21

1341961C2

SPRING

regulator

1шт.

22

1341962C1

PLUG

adjusting

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
