Запчасти Case IH 7220 (8-008) - PTO HYDRAULICS, TRACTOR P.I.N. JJA0064978 AND AFTER (08) - HYDRAULICS

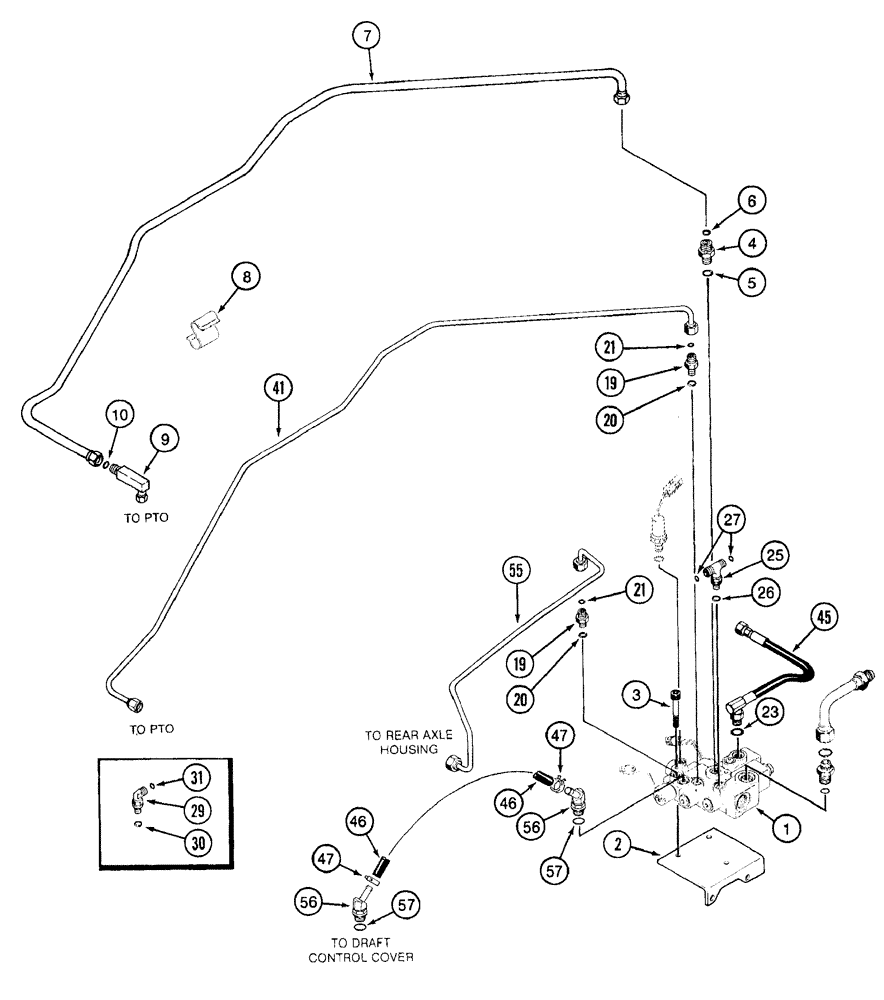

Схема запчастей Case IH 7220 - (8-008) - PTO HYDRAULICS, TRACTOR P.I.N. JJA0064978 AND AFTER (08) - HYDRAULICS
46
3
45
56
8
20
9
19
21
6
31
20
4
23
2
19
21
46
57
47
27
29
10
25
1
47
41
5
26
7
30
56
57
55

Артикул

Название

Примечание

Количество

1

134850A1

VALVE

ASSEMBLY - PTO, parts list fig. 8-12

1шт.

See fig. 5-16 for adapter and cooler supply tube (items 22 and 23) that attach to the PTO valve

1шт.

2

226395A1

SUPPORT

BRACKET - mounting, valve

1шт.

3

461-33844

HEX SOC SCREW,3/8"-16 x 2 3/4"

BOLT - hex socket, 3/8 NC x 2-3/4 inch

2шт.

4

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

ADAPTER - straight, 1-14 face seal x 9/16-18 inch O-ring

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

7

223730A1

TUBE

TUBE - PTO, clutch supply, 5/8 inch

1шт.

8

226390A2

CLAMP

S-type, tube

1шт.

9

225500A1

FITTING

ELBOW - 90 degree, 1-14 male x 11/16-16 inch straight thread

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

2шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

25

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

1997585C1

HYD TUBE

TUBE - brake, PTO

1шт.

45

1348381C1

HOSE,9.53mm ID x 409mm L, SAE 100R1

409 mm (16 - 1/8 inch) long, drain, PTO

1шт.

46

220888A1

TUBE

HOSE - 10 (3/8) x 16 (5/8) x 635 mm (25 inch) long, return, regulator valve

1шт.

47

1348264C1

HOSE CLAMP

3/8 inch

2шт.

55

1348309C1

HYD TUBE,0.375" OD, 531.1, 196 mm Length

differential lock

1шт.

55a

203-909

SLEEVE,ORFS, 3/8" Tube, Braze

tube, 9.68 mm (3/8 inch) tube O.D., not shown

2шт.

55b

203-901

TUBE NUT,17 mm Length

tube, O-ring face seal, 9.52 mm (3/8 inch) tube O.D., not shown

2шт.

56

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW - 45 degree, 3/8 stem end x 9/16-18 inch adj O-ring boss

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

57

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
