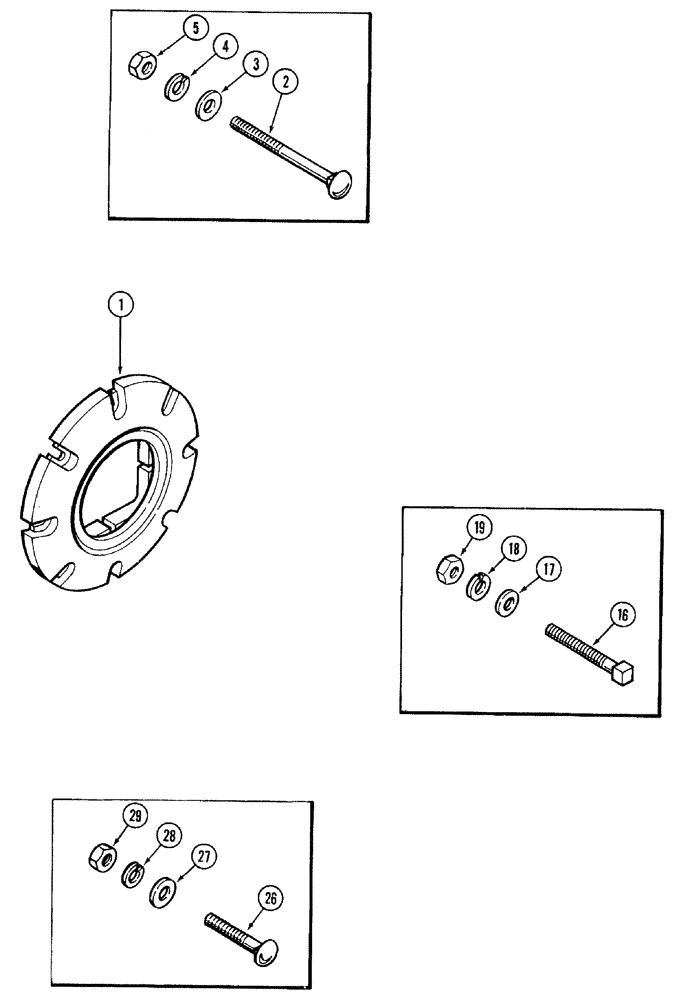

Запчасти Case IH 7220 (6-098) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

A67923

WEIGHT, WHEEL

WHEEL WEIGHT KIT - rear set, Machinery Price List, hardware kits

1шт.

1

A33178

WEIGHT

wheel, rear, order from Machinery Price List, hardware kits

2шт.

A67484

PACKAGE

KIT - hardware, rear wheel weight, order from Machinery Price List (For first weight on outside of 32 and 34 inch steel wheels; and outside of universal cast wheels with 38, 42 and 46 inch wheel rims)

1шт.

2

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT - carriage, 5/8 NC x 7 inch, hardware kits

8шт.

3

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, hardware kits

8шт.

4

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

Hardware kits

8шт.

5

425-1010

NUT,5/8"-11, G5

Hardware kits

8шт.

A67519

PACKAGE

KIT - hardware, rear wheel weight, order from Machinery Price List (For first weight on outside of solid cast wheel A161818 with 38 & 42 inch wheel rims

1шт.

16

117-511

SQUARE BOLT,5/8" - 11 x 5", Gr 5

BOLT - square head, 5/8 NC x 6-1/4 inch, hardware kits

8шт.

17

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, hardware kits

8шт.

18

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

Hardware kits

8шт.

19

425-1010

NUT,5/8"-11, G5

Hardware kits

8шт.

A62577

PACKAGE

KIT - hardware, rear wheel weight, order from Machinery Price List (For second and additional weights on all wheels.), hardware kits

1шт.

26

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT - carriage, 5/8 NC x 4 inch, hardware kits

8шт.

27

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, hardware kits

8шт.

28

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

Hardware kits

8шт.

29

425-1010

NUT,5/8"-11, G5

Hardware kits

8шт.
