Запчасти Case IH 7220 (6-090) - SOLID CAST REAR WHEELS, 38 AND 42 INCH RIMS (06) - POWER TRAIN

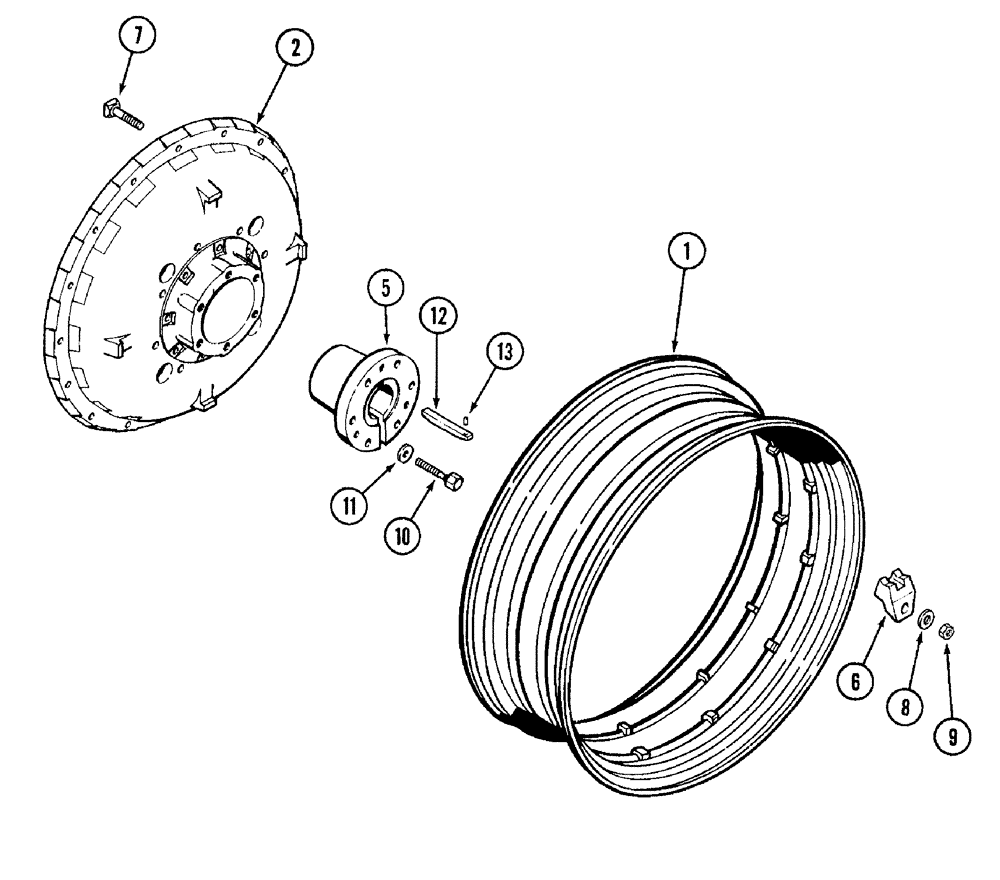

Схема запчастей Case IH 7220 - (6-090) - SOLID CAST REAR WHEELS, 38 AND 42 INCH RIMS (06) - POWER TRAIN
5
6
11
12
1
8
9
10
2
7
13

Артикул

Название

Примечание

Количество

1

1334480C1

RIM

WHEEL (For 18.4-38 tire)

2шт.

1

1334481C1

RIM

WHEEL (For 20.8-38 tire)

2шт.

1

1334482C1

RIM

WHEEL (For 18.4-42 tire)

2шт.

1

1334483C1

RIM

WHEEL (For 20.8-42 tire)

2шт.

2

A161818

WHEEL

HUB - cast, rear

2шт.

5

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID, 7210 tractor only

2шт.

5

223769A1

HUB

axle, rear, 102 mm (4 inch), 7220 tractor only, replaces 1289233C1 bushing

2шт.

6

A57654

CLAMP

adjusting, double ramp

32шт.

7

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

BOLT - square head, 3/4 NC x 3-1/2 inch

32шт.

8

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat, wheel

32шт.

9

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

32шт.

10

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, replaces A60095 bolt

12шт.

11

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

12

1530716C1

BUCKET TOOTH KEY

axle, 5/8 x 5 inch, 7210 tractor only

2шт.

12

A63219

KEY

axle, 3/4 x 6 inch, 7220 tractor only

2шт.

13

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

Выбрано товаров: 16
