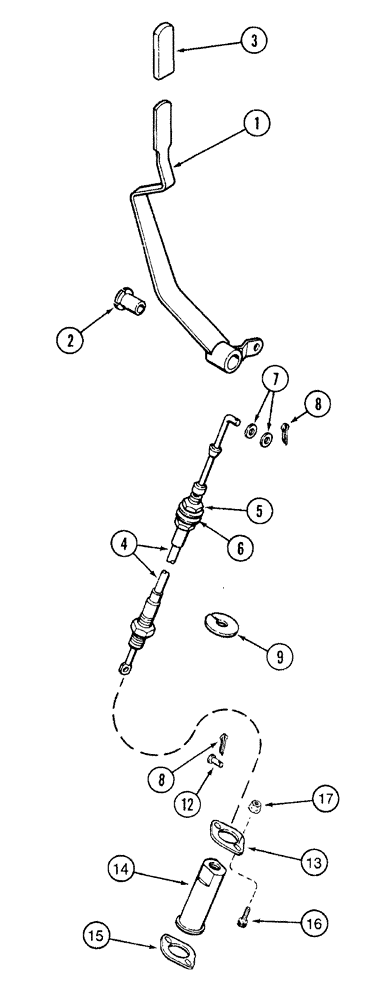

Запчасти Case IH 7220 (6-078) - PTO CONTROL, (IF EQUIPPED) (06) - POWER TRAIN

1

1280389C2

HANDLE

LEVER - control handle, PTO, for electrically operated PTO, see fig. 4-2 for PTO toggle switch

1шт.

2

1283599C1

BUSHING,19.08mm ID x 28.58mm OD x 28.57mm L

pivot

1шт.

3

1283907C1

GRIP

control lever

1шт.

4

1280308C2

CABLE

ASSEMBLY - PTO control, for electrically operated PTO, see fig. 4-2 for PTO toggle switch

1шт.

5

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

3шт.

6

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

8

432-48

COTTER PIN,1/16" x 1/2"

2шт.

9

1344103C1

WASHER

split, cable

1шт.

12

97237C1

AXLE PIN

clevis

1шт.

13

1280055C2

FLANGE

cable support housing

1шт.

14

1340478C1

HOUSING

support, cable

1шт.

15

97238C1

SPACER

cable support housing

1шт.

16

879-10625

SET SCREW,Hex Skt, M6 x 20mm, Cup Pt

set, hex socket, 6 x 25 mm

2шт.

17

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.
