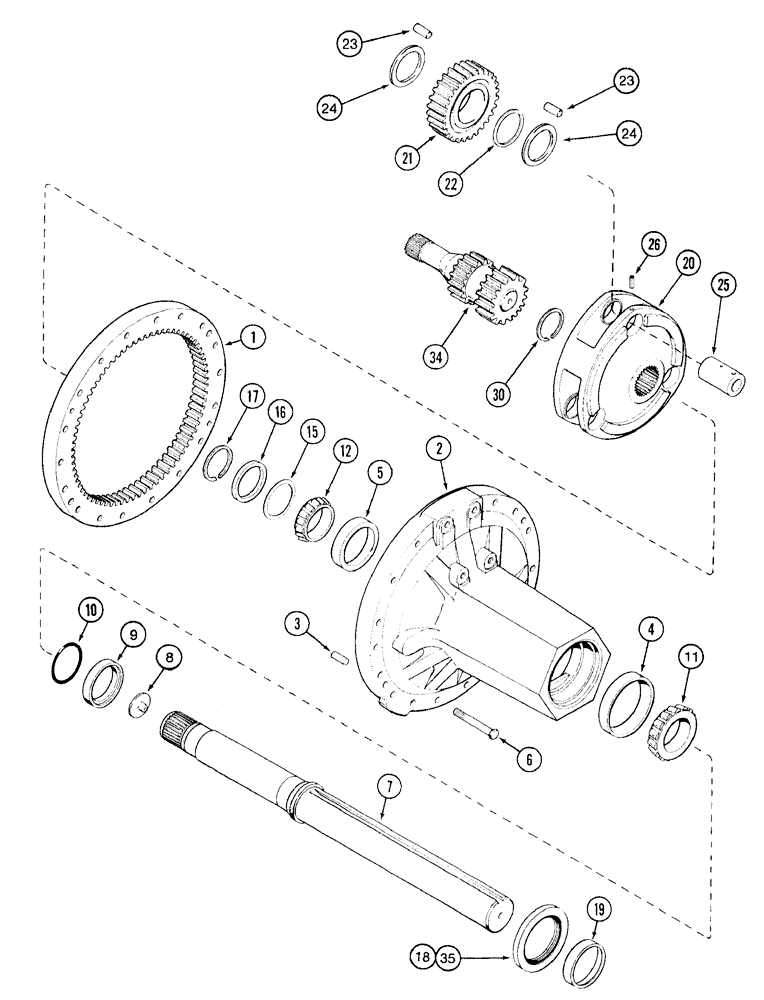

Запчасти Case IH 7220 (6-070) - REAR AXLE AND CARRIERS, 96 AND 112 INCH AXLE, 7220 TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
120942C2
GEAR
ring, axle
2шт.
2
1968489C1
CARRIER
ASSEMBLY - axle
2шт.
3
837-16040
DOWEL,M16 x 40
Hardened
2шт.
4
630899C1
BEARING CUP
tapered roller
1шт.
5
619697C1
BEARING CUP,149.98mm OD x 26.90mm W
tapered roller, inner
1шт.
6
813-16120
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
BOLT - hex, 16 - 2.0 x 120 mm
32шт.
7
1968338C4
SHAFT
AXLE ASSEMBLY - rear, 4 inch diameter x 112 inch
2шт.
7
1968339C3
SHAFT ASSY.
AXLE - rear, 4 inch diameter x 96 inch
2шт.
8
1981270C1
INSERT
rear axle
1шт.
9
1968334C1
BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L
spacer, bearing
1шт.
10
238-5241
O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
2шт.
11
630874C1
ROLLER BEARING,99.99mm ID x 41mm W
tapered roller, outer
2шт.
12
123869R1
ROLLER BEARING,95.263 mm ID x 36.535 mm
tapered roller, inner
2шт.
1264591C1
SHIM KIT
shim, bearing, kit no longer available, order components
1шт.
15
143921C1
SHIM,95mm ID x 120mm OD x 0.76mm Thk
Bearing
1шт.
15
143922C1
SHIM,95mm ID x 120mm OD x 0.3mm Thk
Bearing
1шт.
15
143923C1
SHIM,95mm ID x 120mm OD x 0.13mm Thk
Bearing, 0.18mm
1шт.
15
143924C1
SHIM,95mm ID x 120mm OD x 0.1mm Thk
Bearing (0.10 - 0.13 mm)
1шт.
15
143925C1
SHIM,95mm ID x 120mm OD x 0.08mm Thk
Bearing (0.06 to 0.09 mm)
1шт.
16
124744C1
WASHER,95.63mm ID x 120mm OD x 8mm Thk
thrust, axle
2шт.
17
1277020C2
RING
retaining, axle
2шт.
94547C1
SEAL KIT
seal and sleeve, axle
2шт.
18
92689C1
SEAL
oil, oversize
1шт.
19
92687C1
SLEEVE
wear
1шт.
20
1349355C1
PINION CARRIER
gear, planet
2шт.
21
1349354C2
PINION
GEAR - planet, 27 teeth
6шт.
22
1349348C1
THRUST RING
6шт.
23
1349353C1
NEEDLE BEARING
BEARING
348шт.
24
1997886C1
THRUST WASHER
12шт.
25
1349352C1
SHAFT
bearing, planet gear
6шт.
26
838-3826
PIN,M8 x 26, Coiled
Replaces 30355R1 pin
6шт.
30
101-11350
SNAP RING,#350, Ext
Replaces 598318R1
2шт.
34
1981238C1
SHAFT
sun gear, final drive
2шт.
Выбрано товаров: 34
