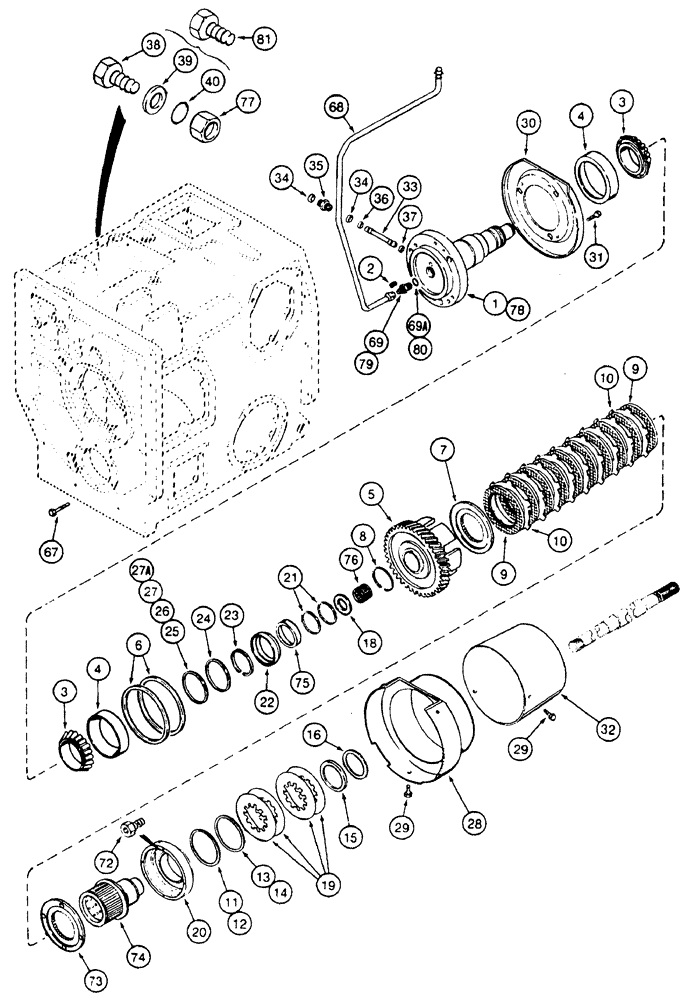

Запчасти Case IH 7220 (6-062) - MECHANICAL FRONT DRIVE (06) - POWER TRAIN

1

1997873C1

SHAFT

clutch, used with 3/4 inch adapter, item 69, no longer available, order 137221A1 shaft and 218-5351 adapter, items 78 & 79

1шт.

2

877-11010

SET SCREW,Hex, M10 x 10mm

set, hex socket, 10 - 1.5 x 10 mm, flat point

1шт.

3

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

tapered roller

2шт.

4

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

tapered roller

2шт.

5

1997874C1

GEAR

driven, MFD, 46 teeth

1шт.

6

101-21412

SNAP RING,#412, 4.430", Int

2шт.

7

128297A1

CLUTCH DISC,98.63mm ID x 142mm OD x 7.5mm Thk

CLUTCH DISK PLATE - clutch backing, no holes, 48 teeth

1шт.

8

101-11400

SNAP RING,#400, 3.771, Ext

RING - external retaining, No. 400, external

1шт.

9

1997907C1

PLATE

Friction

13шт.

10

128114A1

DISC

Clutch Separator

12шт.

11

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

seal, clutch, Serial Range: hub-actuator

1шт.

12

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

piston, clutch, Serial Range: hub-actuator

1шт.

13

1997879C1

SEALING RING

RING - sealing, clutch, Serial Range: hub-actuator

1шт.

14

238-7037

O-RING,0.07" Thk x 2.489" ID, -37, Cl 7, 75 Duro

1шт.

15

123135A1

WASHER,69.64mm ID x 92mm OD x 5.45mm Thk

spring retainer

1шт.

16

123517A1

RING, SNAP

RING SNAP retaining, external

1шт.

18

121192A1

THRUST WASHER

1шт.

19

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

clutch

4шт.

20

1997877C1

PISTON

ACTUATOR - clutch

1шт.

21

1997897C1

RING

sealing

2шт.

22

1997885C1

OIL SEAL

oil

1шт.

23

1997891C1

SNAP RING

retaining, external

1шт.

24

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

RING - backup

1шт.

25

1997893C1

SHIM,65.5mm ID x 80mm OD x 0.51mm Thk

Bearing

1шт.

26

1997894C1

SHIM,65.5mm ID x 80mm OD x 0.56mm Thk

Bearing

1шт.

27

1997895C1

SHIM,65.5mm ID x 80mm OD x 0.64mm Thk

Bearing

1шт.

27a

138121A1

SHIM,65mm ID x 80mm OD x 0.2mm Thk

Bearing

1шт.

28

1997923C1

SHIELD

gear, front

1шт.

29

782-84413

SELF-TAP SCREW,Hex Flg, M4.8 x 1.6 x 13mm

BOLT - hex washer, self-tapping, 4.8 - 1.6 x 13 mm

5-6шт.

30

1997881C1

SHIELD

gear, rear

1шт.

31

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

BOLT - hex, self-locking, 8 - 1.25 x 16 mm, class 10.9, locking insert

3шт.

32

1997924C1

SHIELD

clutch

1шт.

33

93201C1

TUBE,11 mm DIA x 110 mm L

TUBE - inlet, oil

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

35

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

613-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

Bolt, , if used, may be replaced by item 81 on some models Hex, M16 x 30, 8.8, Full Thd

2шт.

39

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

If used

2шт.

40

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

If used

2шт.

67

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

6шт.

68

124306A1

TUBE,12.7 mm OD, 469, 181 mm Length

TUBE - lube, supply

1шт.

69

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, used with 1997873C1 shaft, item 1

1шт.

69a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

72

863-4012

HEX SOC SCREW,M4 x 12mm, Cl 12.9

BOLT - hex socket, 4 - 0.7 x 12 mm, class 10.9

4шт.

73

1997876C1

PLATE, THRUST

Clutch backing, Four Mounting Holes, 48 Teeth

1шт.

1997882C1

HUB

ASSEMBLY - clutch

1шт.

74

NSS

NOT SOLD SEPARAT

HUB - clutch

1шт.

75

A13083

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 12.7mm W

needle, outer, clutch hub

1шт.

76

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

needle, inner, clutch hub

1шт.

77

829-1316

NUT,M16, Cl 10

2шт.

78

137221A1

SHAFT

clutch, used with 9/16 inch adapter, item 79

1шт.

79

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, used with 137221A1 shaft, item 78

1шт.

81

605-16020

BOLT,Hex, M16 x 20mm, Cl 8.8

BOLT - hex, locking, 16 - 2.0 x 20 mm, replaces items 38-40 on some models

2шт.

80

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
