Запчасти Case IH 7220 (6-044) - TRANSMISSION, RANGE COUNTERSHAFT (06) - POWER TRAIN

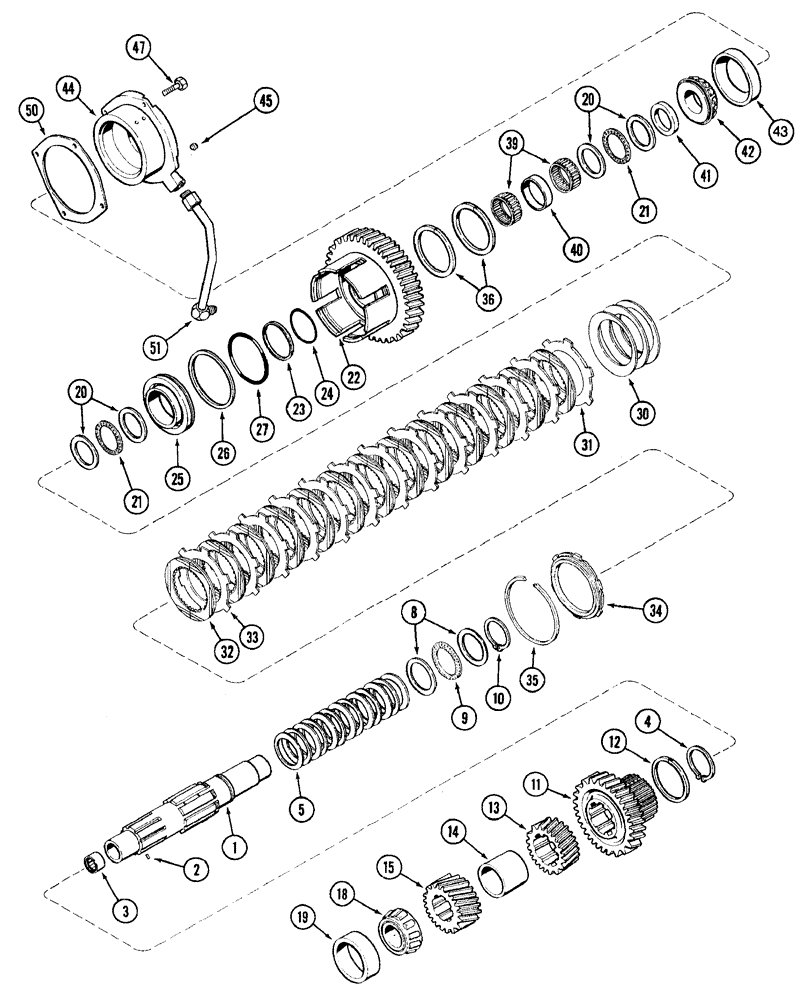

Схема запчастей Case IH 7220 - (6-044) - TRANSMISSION, RANGE COUNTERSHAFT (06) - POWER TRAIN
11
31
5
21
27
30
42
43
45
40
13
4
14
8
10
32
35
50
22
34
20
33
26
47
41
51
20
25
2
18
3
19
39
15
9
24
12
1
23
36
21
44

Артикул

Название

Примечание

Количество

1

1954059C2

SHAFT

ASSEMBLY - counter

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

3шт.

3

D63322

ROLLER BEARING,Needle, 31.75mm ID x 38.1mm OD x 19.05mm W

roller, replaces 1277191C1 bearing

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

external

1шт.

5

1286012C2

BELLEVILLE WASHER

Belleville spring

13шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

needle, 2-1/2 inch ID

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

1шт.

10

583564R1

SNAP RING,#250, 2.356, Ext

RING - snap

1шт.

11

1285978C1

PINION

GEAR - driven, 39 teeth, medium range

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

1шт.

13

1285980C1

PINION

GEAR - driven, 24 teeth, high range

1шт.

14

1286041C2

SPACER

gear

1шт.

15

1285990C1

PINION

GEAR - driver, 23 teeth, constant mesh

1шт.

18

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

tapered roller

1шт.

19

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

tapered roller bearing, replaces 84987C1 cup

1шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

needle, 2-1/4 inch ID

4шт.

21

K620185

THRUST BEARING

needle, thrust, replaces 374011R1 bearing

2шт.

22

1285968C3

GEAR

driven, low range, 54 teeth

1шт.

23

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

driven, low range

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

1шт.

25

1285999C2

PISTON ASSY.

clutch, low

1шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

1шт.

30

93129C1

BELLEVILLE WASHER

Belleville spring

3шт.

31

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction, spring

1шт.

32

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction, clutch

13шт.

33

92934C2

DISC

separator, clutch

12шт.

34

1342854C2

DISC

backing, clutch, 16.45 mm thick, replaces 1342854C1 disc

1шт.

35

1285996C1

SNAP RING,151mm OD, Internal

retaining, plate

1шт.

36

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

gear, low range

2шт.

39

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

caged

2шт.

40

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

bearing

1шт.

41

1286038C1

SPACER

bearing, front

1шт.

42

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

CONE - tapered

1шт.

43

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

tapered roller

1шт.

44

1342622C1

BEARING HOUSING

bearing

1шт.

45

1286084C1

PIN,12.02mm OD x 11mm L

dowel, 12 x 11 mm

1шт.

47

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

4шт.

93277C1

SHIM KIT

KIT - shim, kit no longer available, order components

1шт.

50

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

1шт.

50

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

1шт.

50

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

1шт.

50

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

1шт.

50

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

1шт.

51

1286087C1

TUBE

rear, low clutch

1шт.

Выбрано товаров: 45
