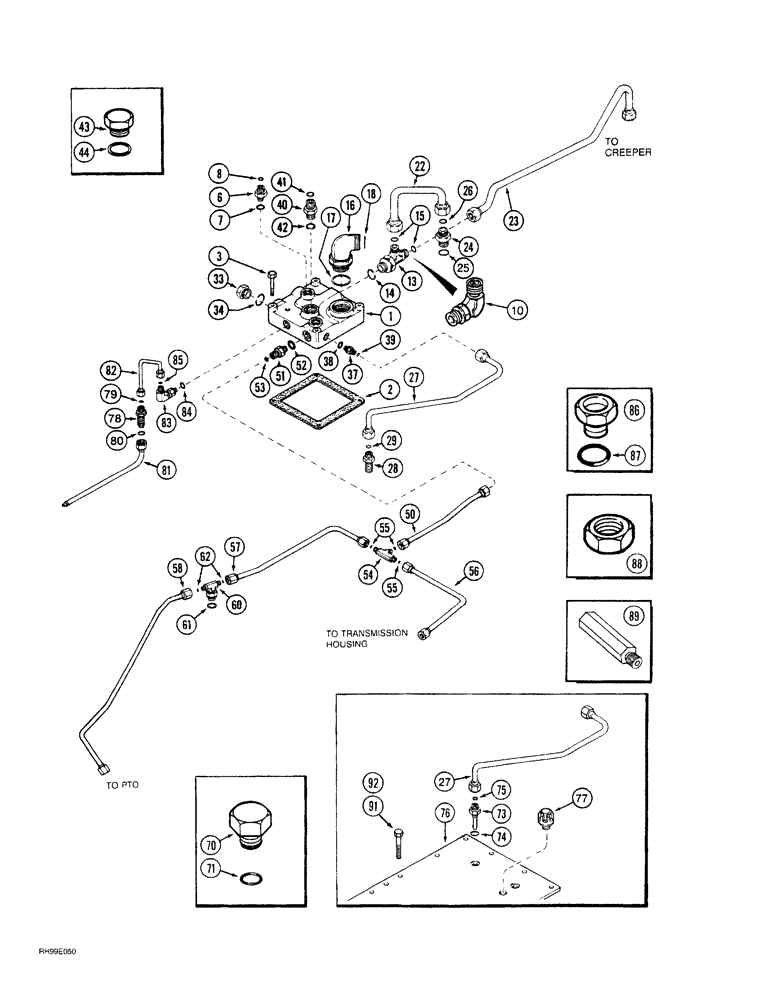

Запчасти Case IH 7220 (6-020) - TRANSMISSION, RANGE HOUSING TUBES AND MANIFOLD (06) - POWER TRAIN

1

124542A1

MANIFOLD

lubrication

1шт.

2

145400C2

MANIFOLD GASKET,0.91mm Thk

manifold

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

6

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss, without creeper

1шт.

13

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1-14 face branch x face x 7/8-14 inch adj O-ring boss, with creeper

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

201-310

ELBOW,90 Degree Elbow, 2" - 12 Male ORFS x 1-7/8" - 12 Male ORB

90 degree, 2-12 face x 1-7/8 inch adj O-ring boss

1шт.

17

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

18

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

22

1342029C1

TUBE,0.625" OD, 132.6 mm Length

lubrication, odd/even

1шт.

23

1348316C1

HYD TUBE,0.5" OD, 548.8, 32.6 mm Length

TUBE - lubrication, creeper drive

1шт.

24

131165A1

FITTING

lube

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

1349444C1

HYD TUBE,0.375" OD, 518, 61 mm Length

lubrication, draft cylinder

1шт.

28

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

straight, 11/16-16 inch face seal x bulkhead face seal

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

86625138

PLUG,7/18" - 14

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

40

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

9672438

PLUG,7/16" - 20 ORB

W/O hitch

1шт.

44

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

50

1289215C1

HYD TUBE,0.5" OD, 328.2, 17.6 mm Length

lube main supply

1шт.

51

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

56

1289214C1

HYD TUBE,0.5" OD, 263.8, 205 mm Length

lube, right-hand brake

1шт.

57

1289212C1

HYD TUBE,0.5" OD, 380,146.1 mm Length

lube, left-hand brake

1шт.

58

107813A1

TUBE

TUBE - lubrication, PTO rear

1шт.

60

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

3/4-16 adj O-ring branch x 13/16-16 inch face x face

1шт.

61

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

62

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

70

76349

PLUG,9/16" - 18 ORB

without MFD

1шт.

71

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

73

1349199C3

FITTING

bevel gear and bearing lube, without hitch

1шт.

74

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

75

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

76

1342229C3

COVER

housing, rear frame, without hitch

1шт.

77

1971726C1

BREATHER,1/4" - 18

housing

1шт.

78

93103C1

UNION

bulkhead, lube

1шт.

79

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

80

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

81

124306A1

TUBE,12.7 mm OD, 469, 181 mm Length

TUBE - lube

1шт.

82

1289222C1

HYD TUBE

TUBE - lube, range spray

1шт.

83

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss, with MFD

1шт.

84

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

85

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

86

9625178

PLUG,9/16" - 18 ORB

without hitch

1шт.

87

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

88

221-62

REDUCER,Hex, 1" x 1/4" NPT

reducing pipe, 1 x 1/4, without hitch

2шт.

89

1330639C1

FITTING

ADAPTER - straight, 9/16-18 inch O-ring boss, without hitch

1шт.

90

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

91

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Bolt, , without hitch Hex, M16 x 35, 10.9, Full Thd

14шт.

92

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

Without hitch

2шт.
