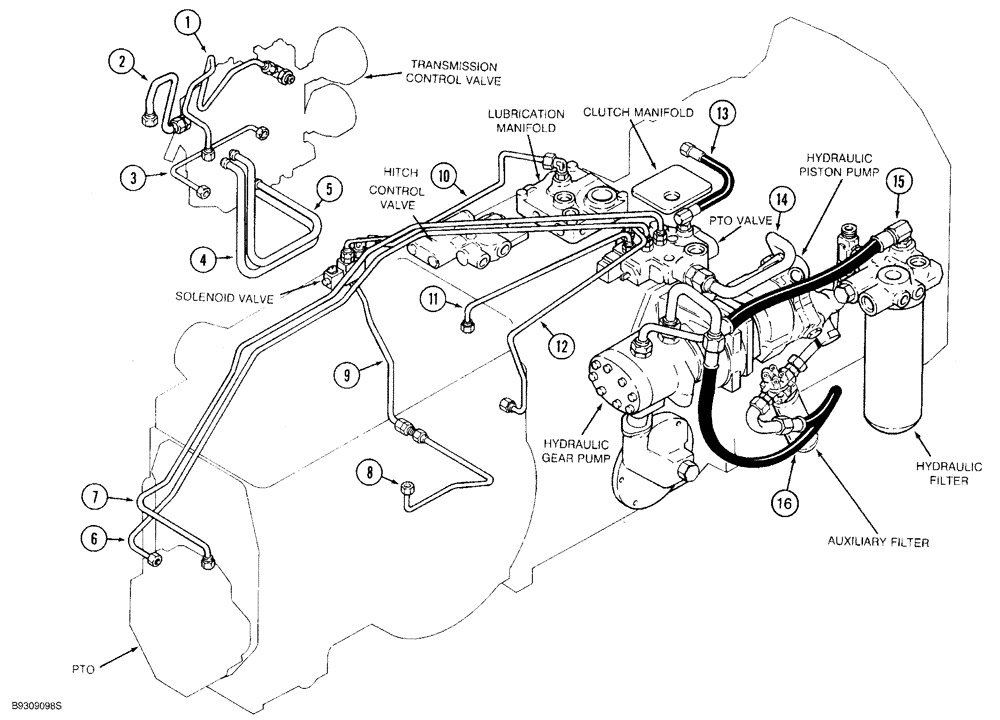

Запчасти Case IH 7220 (1-012) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Valve Inlet Tube, Page 6-25

1шт.

2

Master Clutch Tube, Page 6-25

1шт.

3

Jumper Tube, Page 6-25

1шт.

4

Old Clutch Tube, Page 6-25

1шт.

5

Even Clutch Tube, Page 6-25

1шт.

6

PTO Clutch Tube, Page 8-7

1шт.

See Fig. 8-8 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

7

PTO Brake Tube, Page 8-7

1шт.

See Fig. 8-8 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

8

Transmission Pressure Tube, Page 6-13

1шт.

9

Valve Pressure Tube, Page 8-15

1шт.

10

Valve Return Tube, Page 8-15

1шт.

11

Regulator Valve Return Tube, Page 8-7

1шт.

See Fig. 8-8 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

12

Differential Lock Tube, Page 8-7

1шт.

See Fig. 8-8 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

13

PTO Drain Hose, Page 8-7

1шт.

See Fig. 8-8 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

14

Auxiliary Filter to PTO Valve Tube, Page 8-5

1шт.

15

Pump to Filter Hose Assembly, Page 8-3

1шт.

16

Auxiliary Filter to Pump Hose Assembly, Page 8-5

1шт.
