Запчасти Case IH 7220 (5-034) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, MFD TRACTOR (05) - STEERING

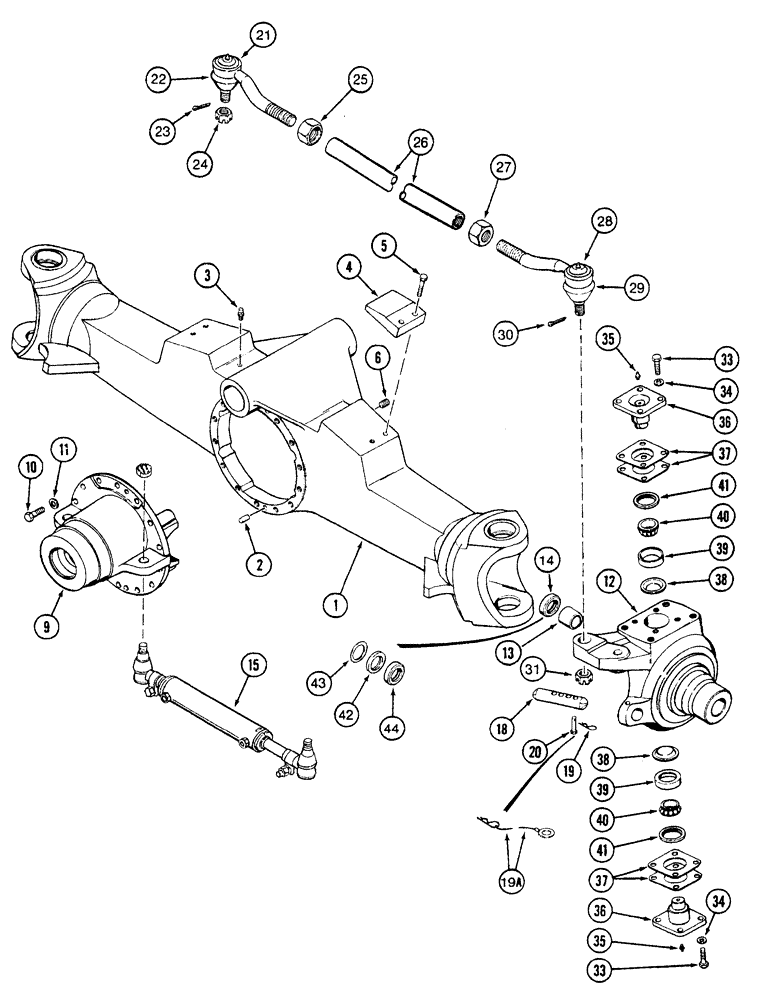

Схема запчастей Case IH 7220 - (5-034) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, MFD TRACTOR (05) - STEERING
13
41
5
36
6
19
35
44
38
1
2
10
40
4
3
41
23
25
15
38
37
42
14
9
11
18
33
36
39
34
40
28
21
31
12
26
35
27
43
20
33
24
37
19a
29
22
39
30
34

Артикул

Название

Примечание

Количество

123480A1

AXLE, FRONT

ASSEMBLY - parts list fig's. 5-38 - 5-48, no longer available, order 197318A1 or 197320A1 axle assembly

1шт.

197318A1

AXLE, FRONT

ASSEMBLY - 30 kph, parts list fig's. 5-38 - 5-48, if used

1шт.

197320A1

AXLE, FRONT

ASSEMBLY - 40 kph, parts list fig's. 5-38 - 5-48, if used

1шт.

1

1961740C1

CENTER AXLE

HOUSING ASSEMBLY - front axle

1шт.

2

37-1816

DOWEL,1/2" x 1"

PIN - 1/2 x 1 inch, hardened, replaces 19904R1 pin

2шт.

3

78787C1

BREATHER

axle housing

1шт.

4

1969527C1

PLATE

stop, front axle

2шт.

5

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

6

221-887

PLUG

square socket, 3/4 inch PT, replaces 273469 plug

2шт.

9

1961734C1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 123480A1 or 197318A1 axle assembly, parts list fig. 5-40

1шт.

9

128926A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 197320A1 axle assembly, parts list fig. 5-40

1шт.

10

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

12

128867A1

STEERING KNUCKLE

ASSEMBLY - left-hand, includes item 13

1шт.

12

128875A1

STEERING KNUCKLE

ASSEMBLY - right-hand, shown

1шт.

13

1961754C1

BUSHING

spindle

1шт.

14

128647A1

OIL SEAL

oil, 1-9/16 x 2-1/8 x 1/2 inch, no longer included with knuckle assembly, order 193075A2 seal kit, items 42-45

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering axle, left-hand, for correct assembly and components, see fig. 5-46 or 5-48

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering axle, right-hand, for correct assembly and components, see fig. 5-46 or 5-48

1шт.

18

118660A1

TIE-ROD

stop, steering

2шт.

19

136-164

COTTER PIN,Int, 5/16" x .120"

cotter, hair, 5/16 x 2-25/32 inch, if used

2шт.

19a

139217A1

SPLIT PIN/SAFETY PIN

CLIP - retainer, if used

2шт.

20

427-12267

CLEVIS PIN,19.05mm OD x 72.95mm L

clevis, 3/4 x 2-43/64 inch, replaces 20243R1 pin

2шт.

122421A1

TIE-ROD

ASSEMBLY - front axle, complete

1шт.

128609A1

BALL JOINT

ASSEMBLY - left-hand thread

1шт.

21

NSS

NOT SOLD SEPARAT

JOINT - ball, left-hand thread

1шт.

22

1342940C1

BOOT

dust, ball joint

1шт.

23

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

24

429-1314

NUT,7/8"-14, G8

hex, slotted, 7/8 inch NF, grade 8

1шт.

25

128591A1

NUT

hex, special, left-hand thread

1шт.

26

128642A1

TUBE

ROD - tie, front axle

1шт.

27

128589A1

NUT

hex, special, right-hand thread

1шт.

128604A1

BALL JOINT

ASSEMBLY - right-hand thread

1шт.

28

NSS

NOT SOLD SEPARAT

JOINT - ball, right-hand thread

1шт.

29

1342940C1

BOOT

dust, ball joint

1шт.

30

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

31

429-1314

NUT,7/8"-14, G8

hex, slotted, 7/8 inch NF, grade 8

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - front, see fig. 5-34 for axle options

1шт.

33

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

16шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

35

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch, used with 1277406C1 cap, if used

4шт.

35a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Used with 1277406C2 cap, if used, not shown

4шт.

36

1277406C1

BALL STUD

BALL PIN If used, replaced by 1277406C2 cap

4шт.

36a

1277406C2

BALL STUD

BALL PIN If used, not shown

4шт.

37

473001C1

SHIM

king pin, .005 inch

1шт.

37

78810C1

SHIM

king pin, .01 inch

1шт.

38

1277271C1

RETAINER

grease

4шт.

39

671033R1

BEARING, CUP

4шт.

40

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

4шт.

41

1277270C1

OIL SEAL

king pin

4шт.

193075A2

SEAL KIT

KIT - Sunshaft seals, includes instructions

1шт.

42

185760A1

OIL SEAL,39.67mm ID x 52.55mm OD x 3.68mm Thk

lip, oil

1шт.

43

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

44

128647A1

OIL SEAL

oil, 1-9/16 x 2-1/8 x 1/2 inch

1шт.

45

B17069

LOCTITE

Hi Strength, No. 601, 2 oz (50 ml), not shown

1шт.
