Запчасти Case IH 7220 (5-024) - STEERING CYLINDER ASSEMBLY, 2 WHEEL DRIVE (05) - STEERING

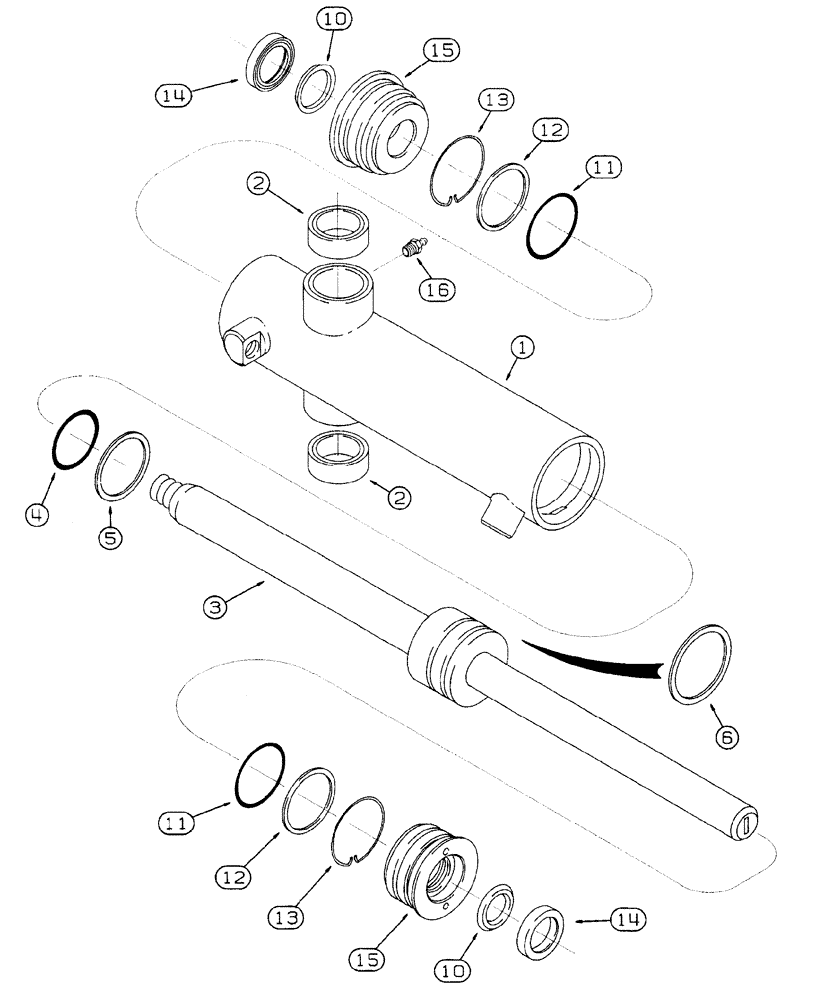

Схема запчастей Case IH 7220 - (5-024) - STEERING CYLINDER ASSEMBLY, 2 WHEEL DRIVE (05) - STEERING
14
15
12
11
5
6
1
16
13
12
14
15
11
10
13
3
2
10
4
2

Артикул

Название

Примечание

Количество

93194C8

STEERING CYLINDER

ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke

1шт.

93194C9R

REMAN-HYD CYLINDER

7210, 7220, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke (10/93-12/96), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

1255304C1

BUSHING

pivot

2шт.

3

1255306C5

PISTON ROD

cylinder, replaces 1255306C4 rod

1шт.

80448C2

SEAL KIT

seal, repair

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

piston, cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - piston

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

piston rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

backup

2шт.

13

1255312C1

RETAINING WIRE

WIRE - retaining, 205 mm (8-1/16 inch) long, cut from 140600C1 bulk wire

2шт.

14

D95141

WIPER SEAL

WIPER - piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - cylinder, end

2шт.

16

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

Выбрано товаров: 17
