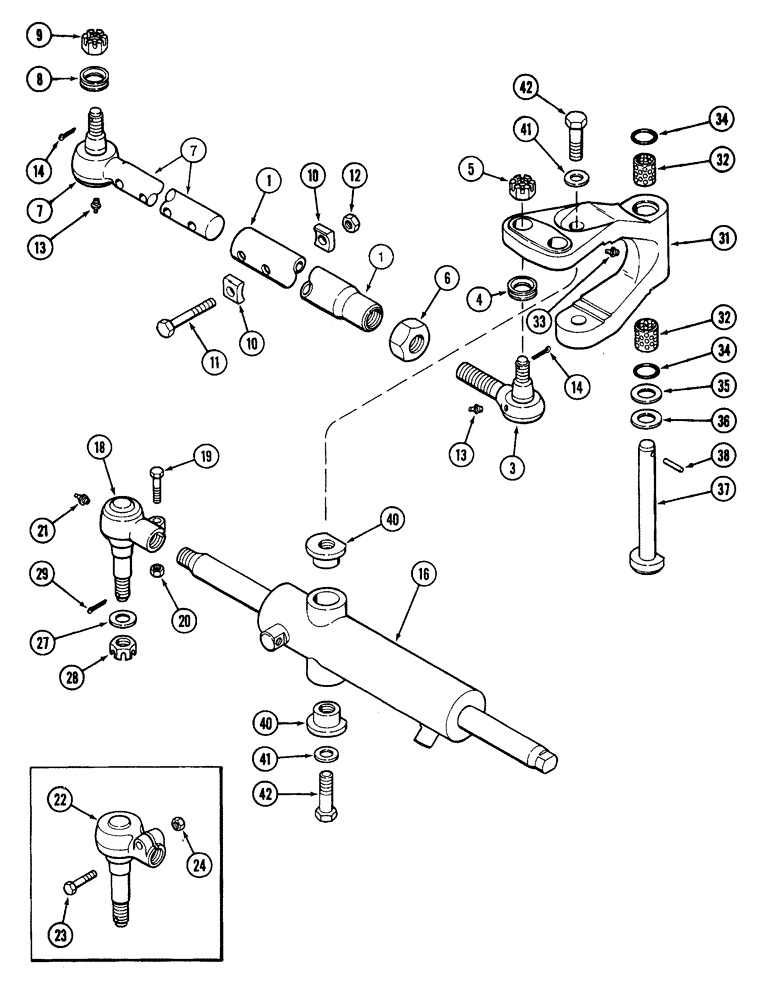

Запчасти Case IH 7210 (5-030) - TIE RODS AND STEERING LINKAGE, 2 WHEEL DRIVE (05) - STEERING

1270788C1

DRAG LINK

ROD ASSEMBLY - tie

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

tie rod

1шт.

3

1280658C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

dust

1шт.

5

1280660C1

SLOTTED NUT

hex slotted, 20 mm - 1.50

1шт.

6

1280661C1

NUT

hex, jam, 1-1/8" inch NF

1шт.

7

1280662C1

BALL JOINT

SOCKET ASSEMBLY - tie rod

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

dust

1шт.

9

1280660C1

SLOTTED NUT

hex slotted, 20 mm - 1.50

1шт.

10

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

tie rod, replaces A43369 clamp

4шт.

11

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

12

232-4616

LOCK NUT,3/8"-24, GC

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

16

93194C8

STEERING CYLINDER

ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke, parts list fig. 5-24

1шт.

16

93194C9R

REMAN-HYD CYLINDER

7210, 7220, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke (10/93-12/96), Reman For New PN 93194C8

1шт.

16

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1280566C2

BALL JOINT

ASSEMBLY - end, steering cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, (TRW)

1шт.

19

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

BOLT - hex, 7/16 NC x 2 inch, replaces 413-632 bolt, 3/8 x 2 inch, if used

1шт.

20

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC, replaces 131-463 nut, 3/8 inch NC, if used

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, (0 & S)

1шт.

23

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

24

232-4117

LOCK NUT,7/16"-14, GC

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

1шт.

28

25-1914

SLOTTED NUT,7/8"-14, G5, Thk

hex, slotted, 7/8 inch NF

1шт.

29

32-1028

COTTER PIN,5/32" x 1 3/4"

1шт.

31

1259579C5

ARM

ASSEMBLY - center, steering

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

center, steering arm

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

35

71421C1

WASHER

flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

36

95-81052

WASHER,1.03" ID x 1.75" OD x 0.05" Thk

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

pivot, center arm

1шт.

38

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

Replaces 19534R1 pin

1шт.

40

1259582C3

FITTING

cap, trunnion

2шт.

41

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

42

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.
