Запчасти Case IH 7210 (5-022) - STEERING PRIORITY VALVE (05) - STEERING

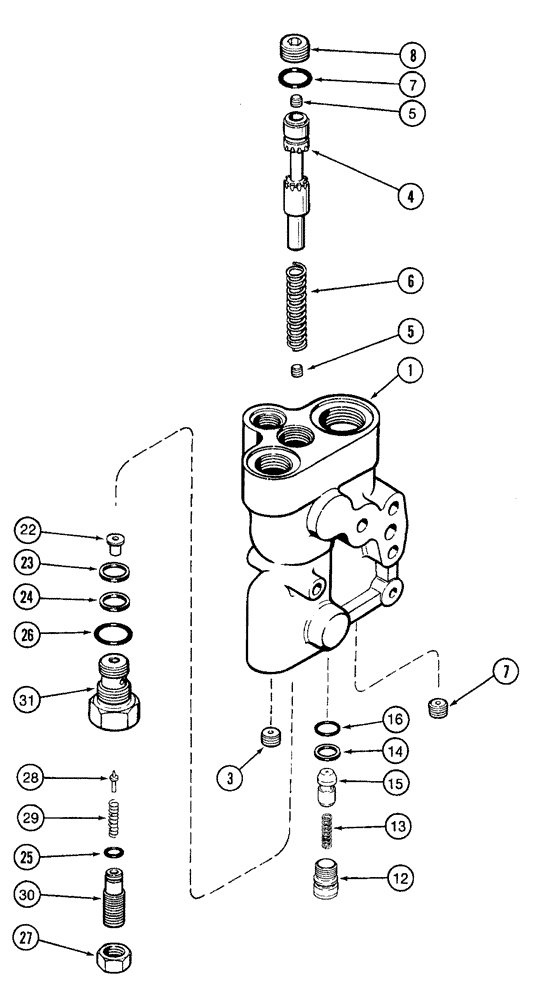

Схема запчастей Case IH 7210 - (5-022) - STEERING PRIORITY VALVE (05) - STEERING
16
12
23
26
30
1
3
13
8
5
5
14
29
22
15
31
4
6
25
7
28
27
7
24

Артикул

Название

Примечание

Количество

1994591C4

VALVE

ASSEMBLY - priority steering, replaces 1994591C3 valve

1шт.

1

1978362C1

BODY

valve

1шт.

3

1994566C1

PLUG

orifice

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

5

G108700

PLUG

orifice, spool

2шт.

6

G110111

VALVE SPRING

priority

1шт.

7

118923A2

PLUG

orifice, replaces 118923A1 plug

1шт.

8

86625138

PLUG,7/18" - 14

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

1542563C1

KIT

ASSEMBLY

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

1994581C1

SPRING,6.1mm OD x 31.1mm L

load check

1шт.

14

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

15

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

G108868

VALVE PRESSURE RELIE

ASSEMBLY - relief, pilot

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT - poppet, replaces G108869 seat

1шт.

22a

NSS

NOT SOLD SEPARAT

SCREEN - relief valve, not shown

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

28

G108556

VALVE POPPET

relief

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - poppet, replaces G109275

1шт.

30

G108867

PLUG

special, adjusting screw

1шт.

31

G108866

HOUSING,1-1/16" - 12

BODY - pilot relief

1шт.

Выбрано товаров: 27
