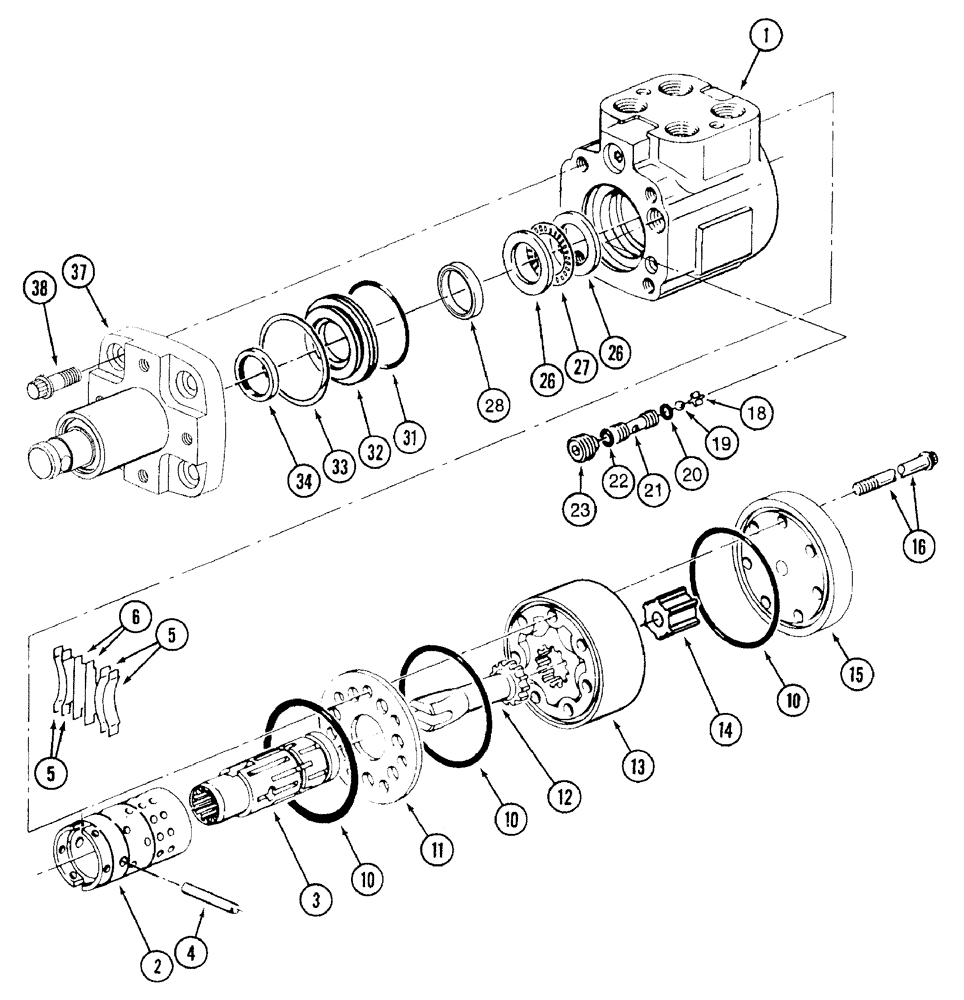

Запчасти Case IH 7210 (5-018) - STEERING PUMP ASSEMBLY, 2-WHEEL DRIVE (05) - STEERING

1542616C3

PUMP

ASSEMBLY - steering, hydrostatic, replaces 1542616C2 pump, no longer available, for service order 225388A1 pump, see item 39 pump and see note

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND CONTROL ASSEMBLY - pump

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering, not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet, not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - centering

1шт.

NSS

NOT SOLD SEPARAT

SPRING KIT - centering

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering (Set of 6 springs)

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

end cap

3шт.

Part of the Seal Kit P/N 1343658C3

1шт.

11

S113037

PLATE

spacer

1шт.

12

L30878

DRIVE SHAFT

gerotor

1шт.

13

1343636C1

ROTOR

GEROTOR - pump

1шт.

14

1343644C1

SPACER

gerotor

1шт.

15

136493A1

COVER

KIT - repair, end cap and spacer plate, also includes 7 bolts, replaces D82809 end cap

1шт.

16

79-1532

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

BOLT - 12 point flange, 5/16 NC x 2 inch, grade 8, replaces 1343639C1 bolt

7шт.

18

L35368

RETAINER

check ball

1шт.

19

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

5/16 ID x 1/8 inch wide, seal

1шт.

Part of the Seal Kit P/N 1343658C3

1шт.

21

D82806

VALVE SEAT

ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Replaces N8539

1шт.

Part of the Seal Kit P/N 1343658C3

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

thrust, bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller

1шт.

28

121179A1

SEAL

teflon, shaft

1шт.

Part of the Seal Kit P/N 1343658C3

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Replaces A14515 seal

1шт.

Part of the Seal Kit P/N 1343658C3

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

697494R91

OIL SEAL

1 inch ID, spool, replaces A28211 seal

1шт.

Part of the Seal Kit P/N 1343658C3

1шт.

37

1343647C1

HOUSING

COLUMN ASSEMBLY - pump, not included with pump, order separately

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

4шт.

39

225388A2

PUMP

ASSEMBLY - steering, hydrostatic, component parts are not serviced separately, not shown, if used, for service of seals, order 1343658C2 seal kit, see note

1шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: REF 10, 20, 22, 28, 31 & 34, replaces 1343658C2

1шт.
