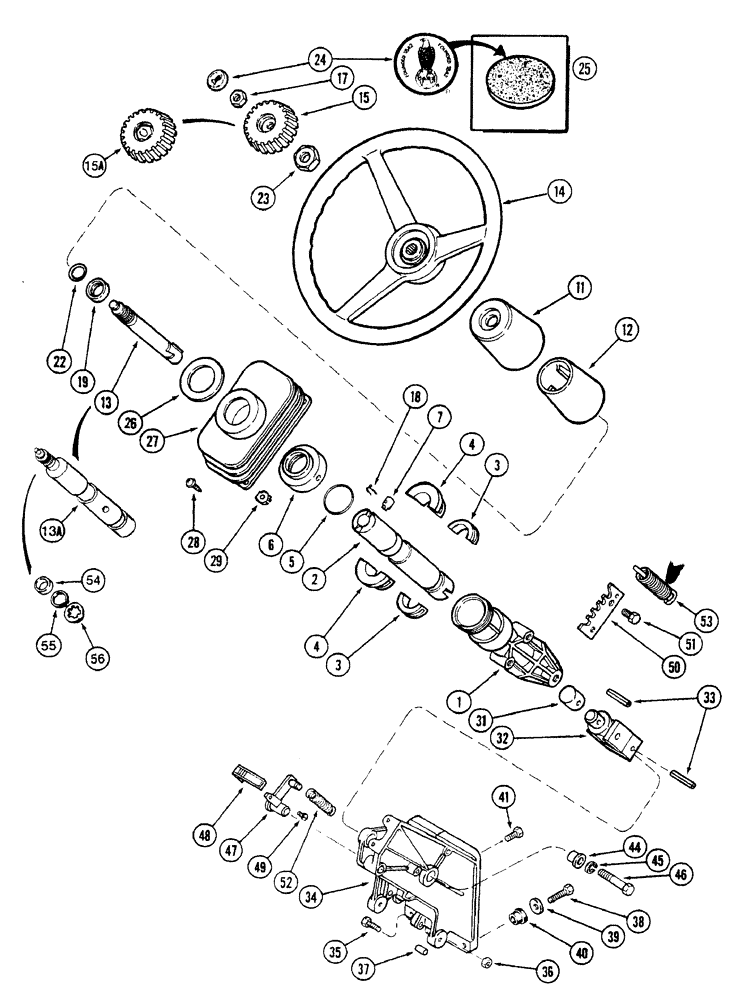

Запчасти Case IH 7210 (5-002) - STEERING WHEEL AND COLUMN, STANDARD (05) - STEERING

1

1989917C1

HOUSING

support, steering

1шт.

2

1954243C2

TUBE

steering wheel, no longer available, order B92960 kit, if used

1шт.

3

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

lower, steering tube

2шт.

4

103985C1

BUSHING,35.05mm ID x 50.9mm OD x 38.1mm L

upper, steering tube

2шт.

5

1348393C1

O-RING,1.984" ID x 0.139" Width

steering column cap

1шт.

6

148921C1

CAP

column, steering

1шт.

7

1954248C1

PIN

stop, telescoping, no longer available, order B92960 kit, if used

1шт.

11

1954245C1

SHIELD

outer, column

1шт.

12

1954244C1

PROTECTOR

SHIELD - inner, column

1шт.

13

1954247C1

SHAFT

telescoping, no longer available, order B92960 kit

1шт.

13a

139202A2

SHAFT

telescoping, replaces 139202A1 shaft

1шт.

14

A65544

STEERING WHEEL

15-1/4"

1шт.

15

A141827

CAP

KNOB - lock, wheel, round center hole, used with item 13 shaft, no longer available, order 138969A1 knob, if used

1шт.

15a

138969A1

CAP

KNOB - lock, wheel, oval center hole, used with item 13A shaft, if used

1шт.

17

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

18

1954249C2

LINCH PIN

CLIP - stop upper, if used

1шт.

19

1954250C1

GASKET

COLLAR - lower, no longer available, order B92960 kit, if used

1шт.

22

1954253C1

SNAP RING,#87, Ext, Crescent

#87, Ext, if used

1шт.

23

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

24

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

24

1342054C1

PLASTIC PLUG

INSERT - plastic, black, if used

1шт.

25

114983A1

BEZEL

eagle medallion, adhesive backing, locations other than steering insert

1шт.

26

1954246C1

WASHER

shield

1шт.

27

1974720C2

BOOT

column

1шт.

28

1975919C1

SELF-TAP SCREW

special

4шт.

29

104036C1

NUT

expansion

4шт.

31

104008C1

RUBBER INSULATOR

vibration, shaft

1шт.

32

148431C1

JOINT

universal

1шт.

33

438-32428

PIN,3/8" x 1 3/4", Coiled

replaces 617944R1 pin 3/8" x 1 3/4", Coiled

2шт.

34

148426C2

SUPPORT ASSY.

column

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

37

837-10016

DOWEL,M10 x 16

dowel, 10 x 16 mm, hardened

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

39

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

3шт.

40

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

vibration damper

3шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

44

148920C1

BUSHING

pivot, column

2шт.

45

892-11012

LOCK WASHER,M12

2шт.

46

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

47

97109C1

LEVER

release, tilt

1шт.

48

97111C4

HANDLE

lever

1шт.

49

170-101

SCREW,Sl Pan Hd, #8 - 32 x 5/16"

No. 8 x 5/16 inch

1шт.

50

96972C1

PLATE ASSY.

detent, tilt

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

52

538321R1

SPRING

detent

1шт.

53

148480C1

SPRING

support, tilt

1шт.

54

228340A1

WASHER

rubber, snubber, 7/8 inch ID, if used

1шт.

55

100-1187

SNAP RING,#87, Ext

If used

1шт.

56

100-1587

SNAP RING,#87, Ext, Crescent

If used

1шт.
