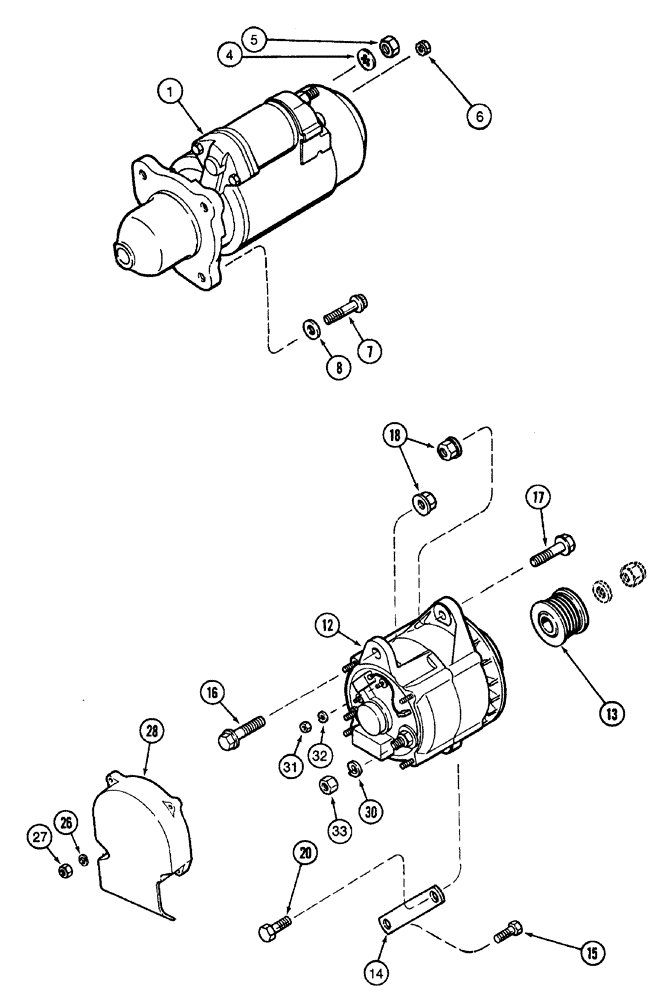

Запчасти Case IH 7210 (4-028) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187728

STARTING MOTOR

ASSEMBLY - engine, parts list fig. 4-30

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter

1шт.

1

87297381

CORE-STARTER

Return Part Number

1шт.

1

A187728GV

STARTER MOTOR

Value

1шт.

4

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal tooth lock, 1/2 inch, battery terminal

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF, switch terminal

1шт.

7

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

BOLT - 12 point flange, 12 - 1.75 x 40 mm, class 12.9

3шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

12

91448C2

ALTERNATOR

ASSEMBLY - engine, 110 ampere, parts list fig. 4-34

1шт.

12

91448C2R

REMAN-ALTERNATOR

Reman For New P/N 91448C2

1шт.

12

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

12

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

13

A189616

PULLEY

alternator

1шт.

14

J911485

SUPPORT

BRACE - alternator

1шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd, Brace to engine

1шт.

16

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

1шт.

17

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

18

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

20

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

26

892-11005

LOCK WASHER,M5

4шт.

27

824-1405

NUT,M5, Cl 5

4шт.

28

1968023C1

PROTECTOR

SHIELD - alternator

1шт.

30

492-11044

LOCK WASHER,7/16"

1шт.

31

825-1404

NUT,M4, Cl 8

1шт.

32

892-11004

LOCK WASHER,M4

1шт.

33

425-147

JAM NUT,Jam, 7/16"-14, G5

hex, jam, 7/16 inch NC

1шт.
