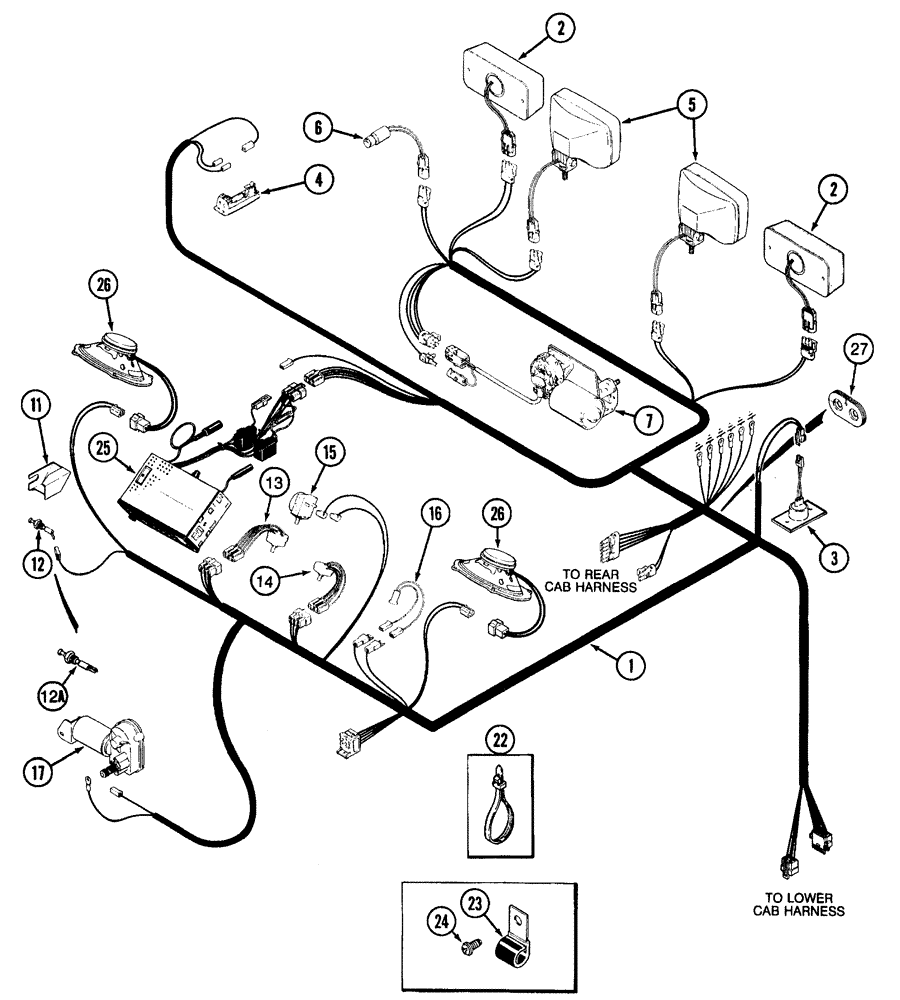

Запчасти Case IH 7210 (4-014) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS

1

1964559C2

HARNESS

headliner, no longer available, order 140646A1 harness and 136893A1 door dome lamp switch, items 1A and 12A

1шт.

Speakers have different connectors, If unit is equipped with round speakers and the headliner harness needs replaced, order 140646A1 headliner

1шт.

1a

140646A1

HARNESS

headliner, not shown, see fig. 4-44 for speaker adapter harness

1шт.

Speakers have different connectors, If unit is equipped with round speakers and the headliner harness needs replaced, order 140646A1 headliner

1шт.

2

92185C1

LIGHT ASSY.

LAMP ASSEMBLY - warning, flasher, parts list fig. 4-36

2шт.

3

83882C91

LAMP

ASSEMBLY - console illumination, parts list fig. 4-40

1шт.

4

1983391C1

LAMP,12V, 10W

dome, parts list fig. 4-40

1шт.

5

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY - flood, parts list fig. 4-40

2шт.

6

122579A1

SWITCH, A/C LOW PRES

Low, air conditioning

1шт.

7

A186256

WIPER MOTOR,12V

12 volt, windshield

1шт.

11

1977350C1

COVER

switch, door

1шт.

12

245175C1

SWITCH

door, dome lamp, with bent blade terminal, if used

1шт.

12a

136893A1

SWITCH

door, dome lamp, with straight male blade terminal, if used

1шт.

13

92115C2

SWITCH

wiper, windshield

1шт.

14

92100C2

SWITCH

blower

1шт.

15

92101C1

SWITCH

thermostat

1шт.

16

1964672C1

LIGHT

indicator, amber, 14 volt, air conditioning shut down

1шт.

17

F93209

WIPER MOTOR

MOTOR, WIPER ASSEMBLY - rear, parts list fig. 4-48

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

23

97249C1

CLIP

CLAMP - harness

2шт.

24

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch, polyseal

2шт.

25

REF

INSTRUCTION

RADIO - entertainment, see fig. 4-44

1шт.

26

REF

INSTRUCTION

SPEAKER - radio, see fig 4-44 for correct speakers and adapter harness

2шт.

27

97039C1

GROMMET

windshield upper channel

1шт.
