Запчасти Case IH 7210 (4-012) - CAB FENDER HARNESS (04) - ELECTRICAL SYSTEMS

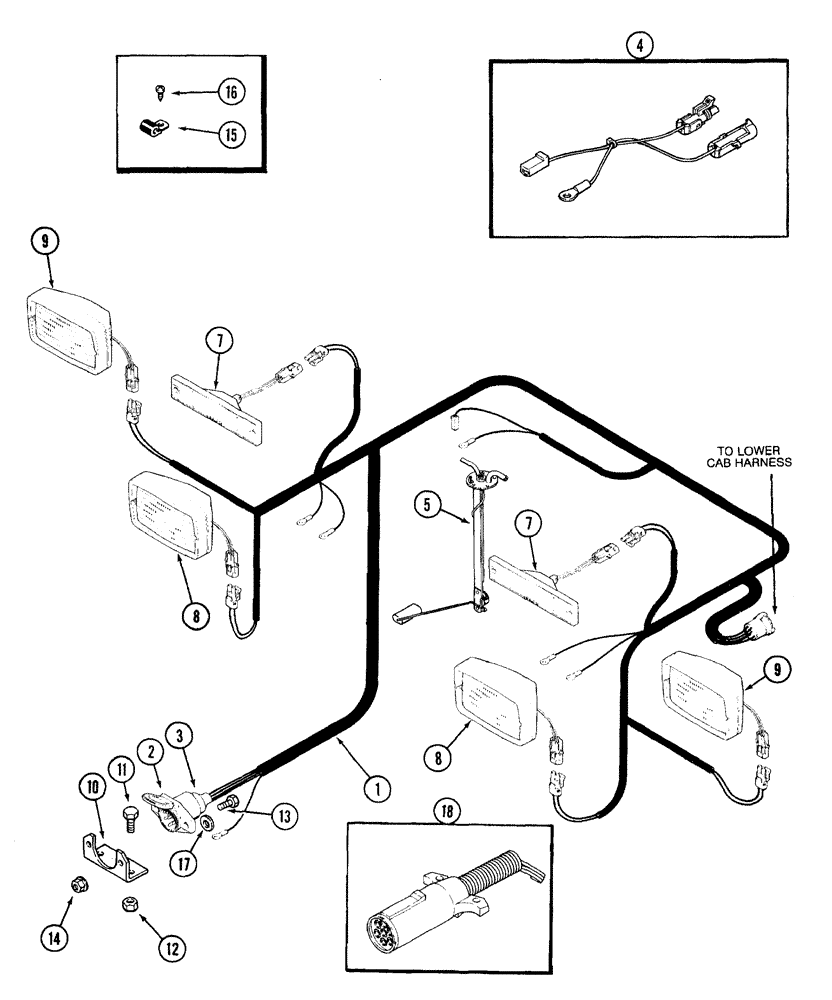

Схема запчастей Case IH 7210 - (4-012) - CAB FENDER HARNESS (04) - ELECTRICAL SYSTEMS
3
8
15
7
8
18
9
1
4
14
10
17
2
16
7
12
13
11
9
5

Артикул

Название

Примечание

Количество

1

1964584C1

HARNESS

fender

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

covered, 7 Pin

1шт.

3

481849C1

PROTECTIVE COVER

BOOT - wiring harness

1шт.

4

92261C1

HARNESS

sender, auxiliary fuel level, used with auxiliary tank

1шт.

5

REF

INSTRUCTION

SENSOR - level, main fuel tank, see fig. 3-28

1шт.

7

1546476C1

LAMP

ASSEMBLY - tail, not available for service, see fig. 4-36 for components

2шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, inner, see fig. 4-38

2шт.

9

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, outer, see fig. 4-38

2шт.

10

102590A1

SUPPORT ASSY.

auxiliary outlet

1шт.

11

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - hex, 10 x 25 mm class 10.9, support

2шт.

12

825-1410

NUT,M10, Cl 8

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

15

362123R1

CLIP

harness retaining

6шт.

16

97212C1

SCREW,Pan, #6 - 20 x 7/8"

pan head, No. 6-20 x 7/8 inch

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

121646C1

TERMINAL CONNECTOR,Female

male, 7 pin, if used

1шт.

Выбрано товаров: 17
