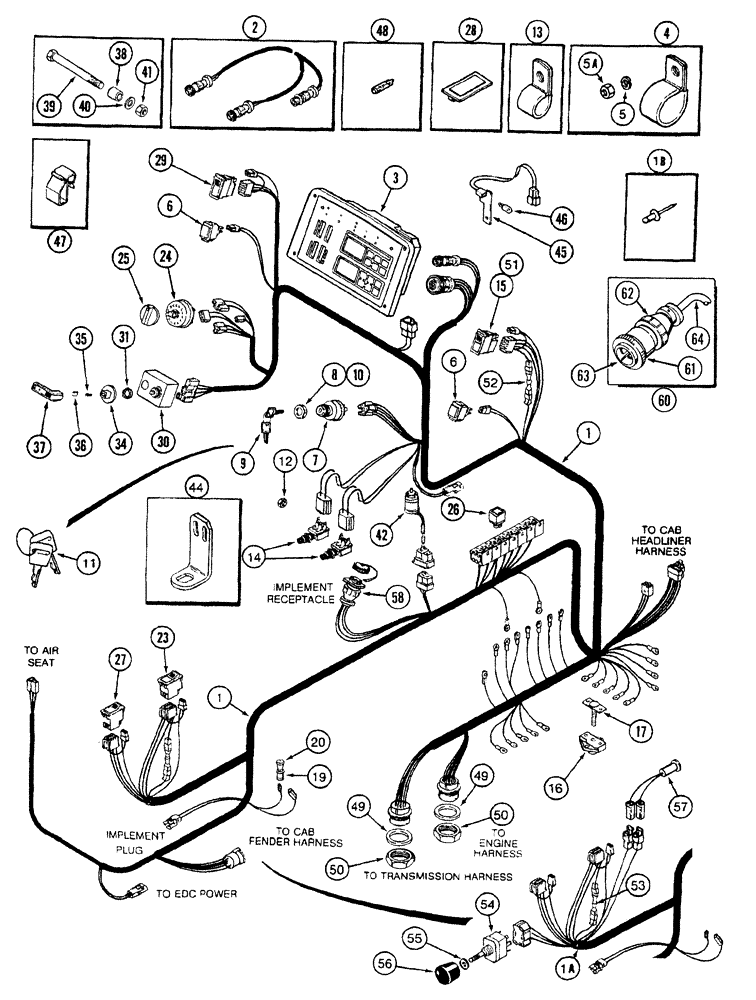

Запчасти Case IH 7210 (4-002) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
122661A1
HARNESS
cab, lower, without connection for electrically operated PTO valve and switch, prior to tractor P.I.N. JJA0064978
1шт.
1a
189571A2
HARNESS
cab, lower, with connection for electrically operated PTO valve and switch, tractor P.I.N JJA0064978 and after
1шт.
1b
151-535
RIVET,Pop, 1/8" x .462"
Break mandrel, to mount three pin connector
4шт.
2
A177090
HARNESS
monitor, implement
1шт.
3
1964859C6
CLUSTER
ASSEMBLY - instrument, new, parts list fig. 4-20
1шт.
3
1964859C6R
REMAN-INSTR CLUSTER
Remanufactured Instrument Cluster
1шт.
3
1964859C6C
CORE-MONITOR
Return Part Number, Instrument Cluster
1шт.
4
515-24349
CLAMP,1 3/8", Insul, 7/16" Bolt
Retaining
1шт.
5
492-11038
LOCK WASHER,3/8"
Replaces 192-111
1шт.
5a
425-166
NUT,3/8"-16, G5, Hvy
heavy hex, 3/8 inch NC
1шт.
6
92365C1
SWITCH
horn and ether start
2шт.
7
D134737
IGNITION SWITCH
SWITCH ASSEMBLY - ignition, includes keys
1шт.
8
1964785C1
NUT
hex special, black
1шт.
9
A77313
SET OF 2 KEYS
Metal Without Padding
1шт.
10
1964785C1
NUT
mounting, ignition switch
1шт.
11
1964831C1
IGNITION SWITCH
ignition, coated, if used
1шт.
12
122860A1
NUT
switch
1шт.
13
515-25254
CLAMP,1", Insul, 1/2" Bolt
P-type, Harness
1шт.
14
123014A1
SWITCH
brake, differential lock
2шт.
15
92345C1
SWITCH
override shutdown (Includes Ref 48), without description or symbol on switch, if used, may be replaced by 137430A1 switch, item 51
1шт.
91855C1
SWITCH
rocker
1шт.
134608A1
LAMP SOCKET
SOCKET - bulb
1шт.
91957C1
DECAL
red, lens, snap-in
1шт.
16
468647C2
BLOCK ASSY.
junction, replaces 468647C1 block, see fig. 4-24 for mounting hardware
1шт.
17
1964561C1
BAR
junction block buss, see page 4-25 for mounting hardware
1шт.
19
1964773C1
CIGAR LIGHTER
12 volt, small knob, if used
1шт.
20
A177447
LIGHTER, CIGARETTE
ELEMENT - pop-out unit, small knob
1шт.
19
245576C1
LIGHTER, CIGARETTE
ASSEMBLY - 12 volt, large knob, if used
1шт.
20
378781R1
LIGHTER, CIGARETTE
ELEMENT - pop up, lighter, large knob
1шт.
23
92346C1
SWITCH
differential lock (Includes Ref 48)
1шт.
91956C1
SWITCH ASSY
rocker
1шт.
134608A1
LAMP SOCKET
SOCKET - bulb
1шт.
83884C1
SYMBOLS
SYMBOL LENS - green, decal, snap-in
1шт.
24
91921C1
SWITCH
lighting
1шт.
25
97107C3
BUTTON
KNOB - light switch
1шт.
26
1983394C2
RELAY
mini, 12 volt, replaces 146461C1 relay
1шт.
27
129130A1
SWITCH
MFD (Includes Ref 48)
1шт.
129129A1
SWITCH
rocker, not available, order 129130A1 switch assembly
1шт.
134608A1
LAMP SOCKET
SOCKET - bulb
1шт.
83884C1
SYMBOLS
SYMBOL LENS - green, decal, snap-in
1шт.
28
245918C1
LENS
PLUG blanking switch - rectangular, if used
1шт.
29
92344C1
SWITCH
ASSEMBLY - high/low (Includes Ref 48)
1шт.
91855C1
SWITCH
rocker
1шт.
134608A1
LAMP SOCKET
SOCKET - bulb
1шт.
91856C1
SYMBOLS
SYMBOL DECAL - blue, lens, snap-in, high beam
1шт.
30
1987422C1
SWITCH
and flasher
1шт.
31
131-428
LOCK NUT,PAL, 3/4"-20
hex, self-locking, 3/4-20 inch, 3/4-20
1шт.
34
97102C1
ADAPTER
lever, turn signal
1шт.
35
170-104
SCREW,Sl Pan Hd, #5 - 40 x 3/8"
machine, pan head Phillips, No. 5 NC x 3/8 inch
1шт.
37
97103C3
LEVER
turn signal
1шт.
38
1334638C1
SPACER
electrical, if used, see fig. 9-16 for spacer at tool box
1шт.
39
814-16150
BOLT,Hex, M16 x 2 x 150mm, Cl 8.8
1шт.
40
893-16016
LOCK WASHER,Int Tooth, M16
1шт.
41
825-1416
NUT,M16, Cl 8
1шт.
42
92043C3
SWITCH
drive, creeper, replaces 92043C2 switch
1шт.
44
96890C2
BRACKET
creeper switch
1шт.
45
1983363C2
LAMP
LIGHT ASSEMBLY - cluster
1шт.
46
F64363
BULB
lamp, replaces 28791R1 bulb
1шт.
47
104389C1
CLIP
retaining, light
1шт.
49
459330C1
LOCK WASHER
lock, No. 24
2шт.
50
459329C1
NUT
hex, No. 24
2шт.
51
137430A1
SWITCH
ASSEMBLY - override shutdown (Includes Ref 48), with shutdown override description on lens if used, order components
1шт.
91855C1
SWITCH
rocker
1шт.
134608A1
LAMP SOCKET
SOCKET - bulb
1шт.
137428A1
SYMBOLS
SYMBOL DECAL - red, lens, snap-in
1шт.
52
548239R2
RECTIFIER
DIODE - nonlocking, used with 122661A1 lower cab harness, prior to tractor P.I.N. JJA0064978
1шт.
53
113699A1
RECTIFIER
locking, 2-5/8 inch long, diode, used with 189571A2 lower cab harness, tractor P.I.N. JJA0064978 and after
1шт.
54
189574A2
TOGGLE SWITCH
toggle, PTO, if used
1шт.
55
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
flat, 13.5 x 28 x 4 mm, hardened
1шт.
56
223565A1
BALL KNOB
control, PTO switch
1шт.
57
183696A1
INDICATOR
LAMP - green, PTO
1шт.
58
225164C1
ELEC CONNECTOR
electrical, type GH, implement receptacle, female
1шт.
59
225168C1
TERMINAL CONNECTOR,Female, 2 - 3 mm2
electrical, female, 14-16 ga., type THI, not shown
3шт.
60
187103A1
ELEC CONNECTOR
auxiliary power, assembly
1шт.
61
225165C1
ELEC CONNECTOR
electrical, type GQ, male
1шт.
Part of the Harness Repair Kit P/N 1714005
1шт.
62
225153C1
CONTACT HOUSING
CONNECTOR - electrical, type GX, strain relief clamp
1шт.
Part of the Harness Repair Kit P/N 1714005
1шт.
63
225166C1
ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm
electrical male blade, 14-16 ga., type TJ1, not shown
3шт.
Part of the Harness Repair Kit P/N 1714005
1шт.
64
NSS
NOT SOLD SEPARAT
CABLE - electrical, 14 gauge, 3 strand, 450 mm (17-3/4 inch) long
1шт.
65
245485C1
ELEC CONNECTOR,Male, 3 Pin
receptacle, type DK, female, implement plug auxiliary power source, not shown
1шт.
66
225119C1
TERMINAL
TERMINAL - wire, type T1, 14-16 ga.,used with 245485C1 connector, not shown
1шт.
1714005
PACKAGE,SERVICE
KIT - harness repair, auxiliary power, Includes: REF 61, 62, 63, components packaged loose and must be assembled
1шт.
