Запчасти Case IH 7210 (3-030) - FUEL LINES, MODELS WITH ONE FUEL TANK, PRIOR TO TRACTOR P.I.N. JJA0064978 (03) - FUEL SYSTEM

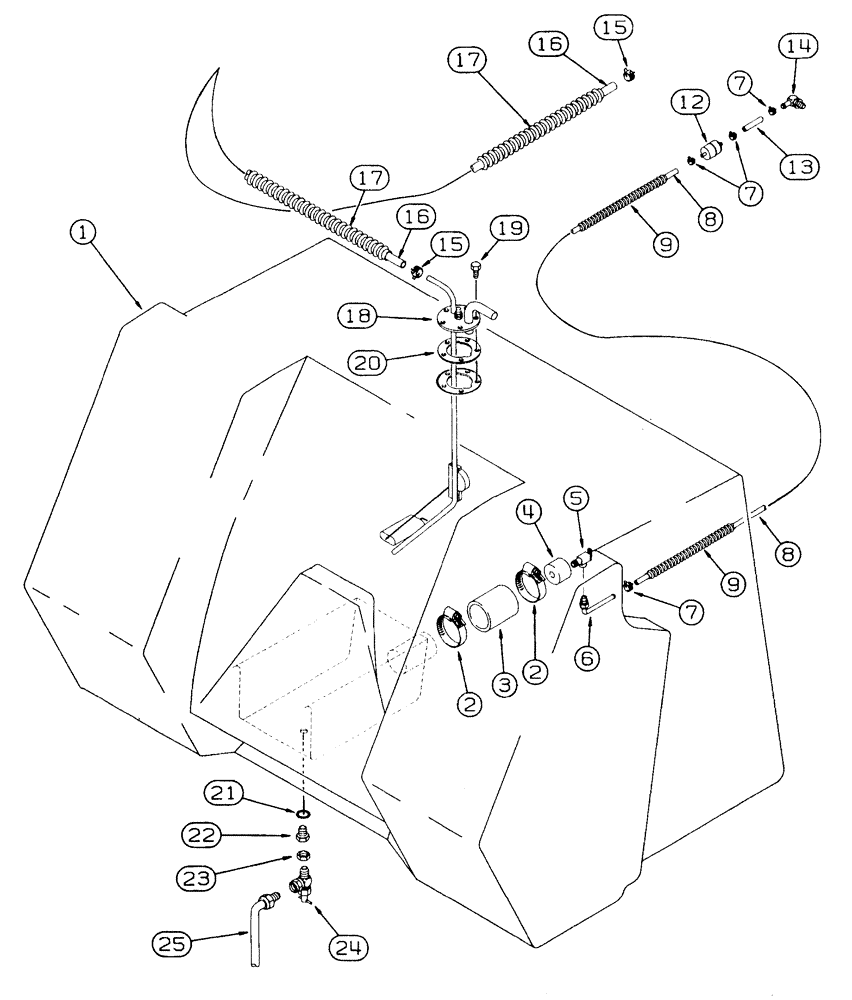

Схема запчастей Case IH 7210 - (3-030) - FUEL LINES, MODELS WITH ONE FUEL TANK, PRIOR TO TRACTOR P.I.N. JJA0064978 (03) - FUEL SYSTEM
2
9
13
7
8
17
15
6
15
22
24
4
19
8
5
7
16
21
2
9
1
14
18
16
17
23
7
12
20
25
3

Артикул

Название

Примечание

Количество

1

96903C3

RESERVOIR

TANK ASSEMBLY - fuel, main, includes items 21-23, see fig. 3-16 for mounting and related parts

1шт.

When ordering Ref 1 or 18, also order 104812C3 gasket, item 20

1шт.

2

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

2шт.

3

130345C1

FUEL HOSE

60 mm (2-3/8 inch) long, fuel tank outlet

1шт.

4

130346C1

ADAPTER

fuel line hose to shutoff valve

1шт.

5

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE - fuel shutoff

1шт.

6

1348241C1

FUEL TUBE,0.375 mm OD, 101.6 mm Length

fuel line, at tank

1шт.

7

1348264C1

HOSE CLAMP

3/8 inch, fuel supply

4шт.

8

1348242C1

FUEL HOSE

1700 mm (66-15/16 inch) long, fuel supply

1шт.

9

1348274C1

CONDUIT

SLEEVE - corrugated, 17 (5/8) ID x 1575 mm (62 inch) long

1шт.

10

1954474C4

SHIN

CLAMP - at left front cab support

1шт.

11

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

12

D139225

FILTER, FUEL

in-line, 9.5 mm (3/8 inch) shank

1шт.

13

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

Filter to engine

1шт.

14

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90 degree, 3/8 barb end x 1/4 inch PT

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose

2шт.

16

1348240C1

FUEL HOSE

4310 mm (169-11/16 inch) long, fuel, Serial Range: return-tank

1шт.

17

1348275C1

LOOM

SLEEVE - corrugated, 17 (5/8) ID x 4064 mm (160 inch) long, fuel return

1шт.

18

1987599C2

FUEL GAUGE

SENSOR - fuel level, main tank, models without auxiliary tank, replaces 1987599C1 sender

1шт.

When ordering Ref 1 or 18, also order 104812C3 gasket, item 20

1шт.

19

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

hex, with external tooth lock, No.10 NC x 3/4 inch

5шт.

20

104812C3

GASKET,3.05mm Thk

fuel level sender

1шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

22

1251790C1

FITTING

ADAPTER - straight, fuel tank drain

1шт.

23

1251791C1

JAM NUT,3/4" - 16 LH Thread

hex, jam, special

1шт.

24

104465C1

DRAIN VALVE

main fuel tank

1шт.

25

104896C1

TUBE,9.52 mm OD, 457.2 mm Length

fuel tank drain, 457 mm (18 inch) long, cut from 74813C1 bulk tube, see below

1шт.

74813C1

TUBE,7.09mm ID x 15240mm L

bulk, 9.5 (3/8) OD x 15240 mm (600 inch) long

1шт.

Выбрано товаров: 28
