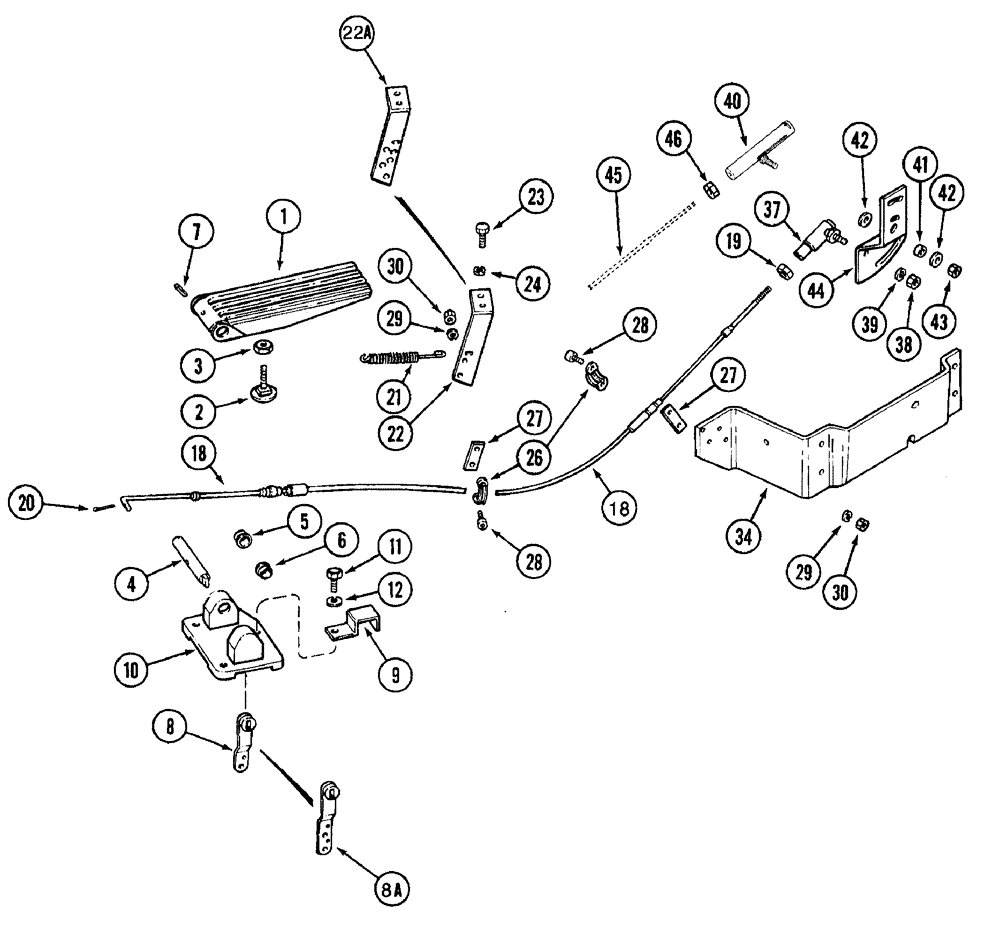

Запчасти Case IH 7210 (3-026) - FOOT THROTTLE (03) - FUEL SYSTEM

1

1975959C4

PEDAL ASSY.

foot throttle, with pad

1шт.

2

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

3

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

4

97043C4

SHAFT

throttle pedal

1шт.

5

1975973C1

BUSHING

left, long

1шт.

6

1975974C1

BUSHING

right, short

1шт.

7

38-3816

PIN,1/8" x 1", Coiled

1шт.

8

1975961C2

LEVER ASSY.

throttle pedal, prior to tractor P.I.N. JJA0064978

1шт.

8a

220355A1

LEVER ASSY.

throttle pedal, tractor P.I.N. JJA0064978 and after

1шт.

9

1977463C1

STOP

throttle pedal

1шт.

10

97046C4

SUPPORT

throttle pedal

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

12

892-11008

LOCK WASHER,8mm ID

3шт.

18

97173C3

CABLE

foot throttle

1шт.

19

225-14210

NUT,#10-32

1шт.

20

432-48

COTTER PIN,1/16" x 1/2"

1шт.

21

1975966C1

SPRING

detent, pedal return (two springs required for 7250 tractor P.I.N. JJA0064978 and after)

1-2шт.

22

1344278C1

SUPPORT ASSY.

BRACKET - cable, foot throttle, prior to tractor P.I.N. JJA0064978

1шт.

22a

220359A1

SUPPORT ASSY.

BRACKET - cable, foot throttle, tractor P.I.N. JJA0064978 and after

1шт.

23

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

24

892-11006

LOCK WASHER,M6

2шт.

26

A75815

CLAMP

retaining

2шт.

27

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

clamp

2шт.

28

461-31012

HEX SOC SCREW,#10 - 24 x 3/4"

4шт.

29

492-11010

LOCK WASHER,#10

Prior to tractor P.I.N. JJA0064978

4шт.

30

225-14110

NUT,#10-24

Replaces 193-1004 nut with external tooth lock washer used on some models, prior to tractor P.I.N. JJA0064978

4шт.

30

224900A1

LARGE PLATE

PLATE, LARGE locking, cable clamp, not shown, see item 33 on fig. 3-24 for plate, tractor P.I.N. JJA0064978 and after

1шт.

34

REF

INSTRUCTION

BRACKET - throttle cable, see fig. 3-22 or 3-24 for bracket options

1шт.

37

19725R1

BALL JOINT

foot throttle

1шт.

38

225-14210

NUT,#10-32

1шт.

39

492-11010

LOCK WASHER,#10

1шт.

40

84728C1

JOINT

hand throttle, replaces 120319C2 ball joint, prior to tractor P.I.N. JJA0064978

1шт.

40

1974525C1

BALL JOINT

throttle cable, tractor P.I.N. JJA0064978 and after

1шт.

41

1971259C1

SPACER

3/8 ID x 7/32 inch

1шт.

42

495-81107

WASHER,.281" x 7/8" x .060"

flat, 9/32 x 7/8 x 3/64 inch

2шт.

43

230-4714

LOCK NUT,1/4"-28, GA

hex, self-locking, 1/4 inch NF

1шт.

44

97038C4

LEVER

throttle, replaces 97038C3 lever, prior to tractor P.I.N. JJA0064978

1шт.

44

198834A1

SUPPORT

BRACKET - throttle lever, not shown, see item 7 on fig. 3-24 for bracket, tractor P.I.N. JJA0064978 and after

1шт.

45

REF

INSTRUCTION

CABLE - hand throttle, see fig. 3-22 or 3-24

1шт.

46

225-14210

NUT,#10-32

1шт.

A67887

THROTTLE

ATTACHMENT - foot, order from Machinery Price List, includes instructions, prior to tractor P.I.N. JJA0064978, includes above items 1-46, except for items 8A, 22A, 34 and 45

1шт.

229817A1

ATTACHMENT

THROTTLE - foot, order from Machinery Price List, includes instructions, tractor P.I.N. JJA0064978 and after, includes above items 1-46, except for items 8, 22, 34 and 45

1шт.
