Запчасти Case IH 7210 (3-008) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, ALL 7210 TRACTRS, 7220 MDLS PRIOR TO P.I.N. JJA0064978 (03) - FUEL SYSTEM

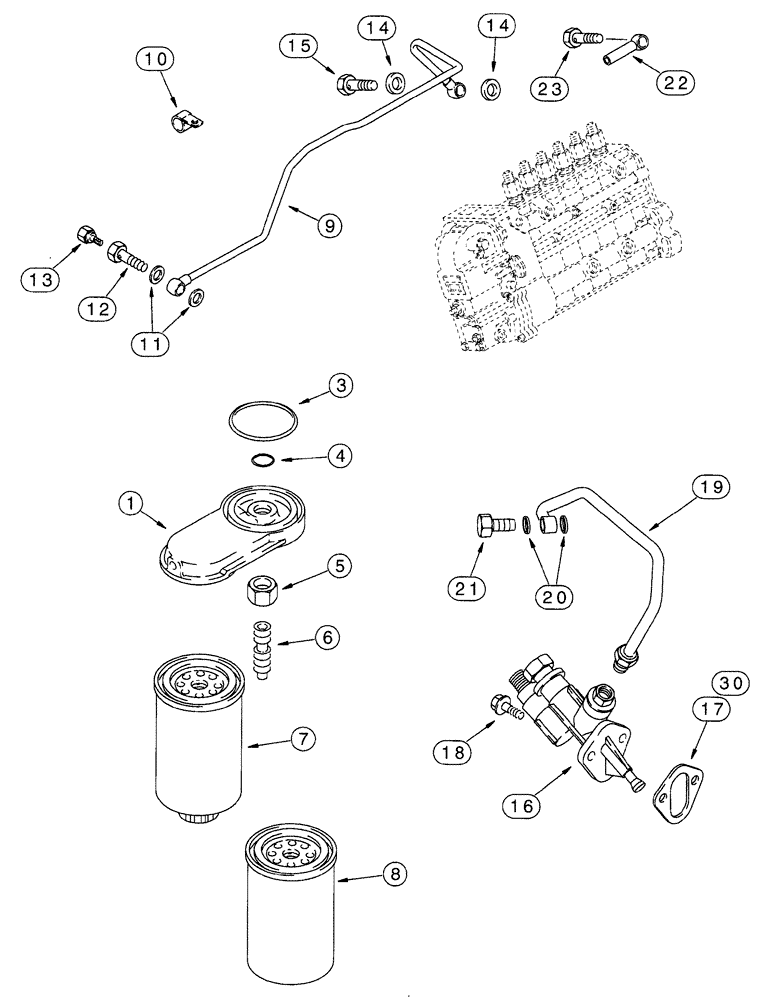

Схема запчастей Case IH 7210 - (3-008) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, ALL 7210 TRACTRS, 7220 MDLS PRIOR TO P.I.N. JJA0064978 (03) - FUEL SYSTEM
16
14
8
21
30
7
15
14
12
18
23
17
5
1
11
6
4
22
13
3
10
9
19
20

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD - fuel filter, replaces J915240 head

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, replaces J903845 adapter

1шт.

A77470

SEPARATOR

KIT - fuel

1шт.

7

J930942

SEPARATOR

Primary, Replaces J925274 filter

1шт.

8

J903640

FILTER, FUEL

secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

fuel supply

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, replaces J918191 washer

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

15

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

16

J933252

FEED PUMP

lift, fuel, see J926764 repair kit below, replaces J917998 pump

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, replaces J923054 gasket

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

supply

1шт.

20

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, replaces J918191 washer

2шт.

21

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

23

REF

INSTRUCTION

VALVE - bolt, overflow, see item 6, fig. 3-12 and 3-14

1шт.

24

J926764

GASKET KIT

transfer pump repair, no longer available, identify and order complete pump assembly, replaces J923615 kit, not shown

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J923054

GASKET

mounting, fuel transfer pump, replaces J914304 gasket

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

Выбрано товаров: 32
