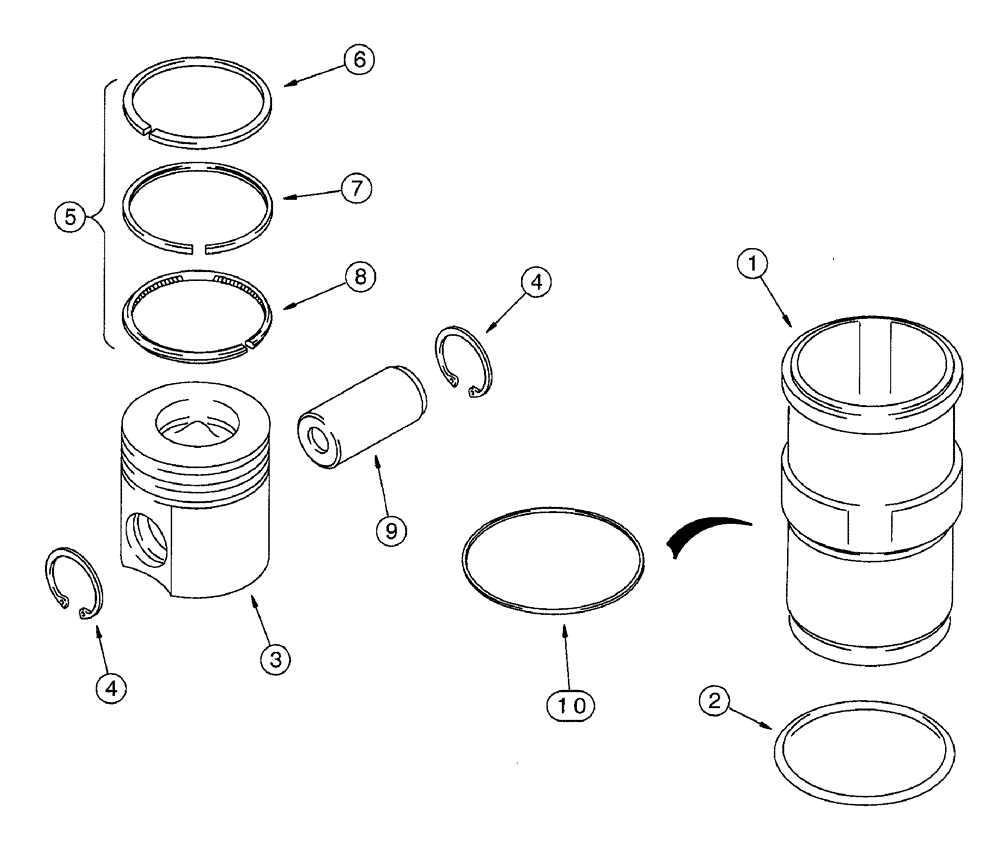

Запчасти Case IH 7210 (2-102) - PISTONS, 6T-830 ENGINE, ALL 7210 TRACTORS, 7220 MODELS PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, engine, includes piston stamped 9564 or 3163

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sealing, sleeve

1шт.

A77771

PISTON ASSY.

KIT - engine, standard, includes piston stamped 9564 or 3163

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

(Replaces G109044)

2шт.

5

A77802

PISTON RING SET

KIT - used with piston stamped 9564 or 3163

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9

J901597

PIN

piston

1шт.

10

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010")

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm)

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm)

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030")

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040")

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.
