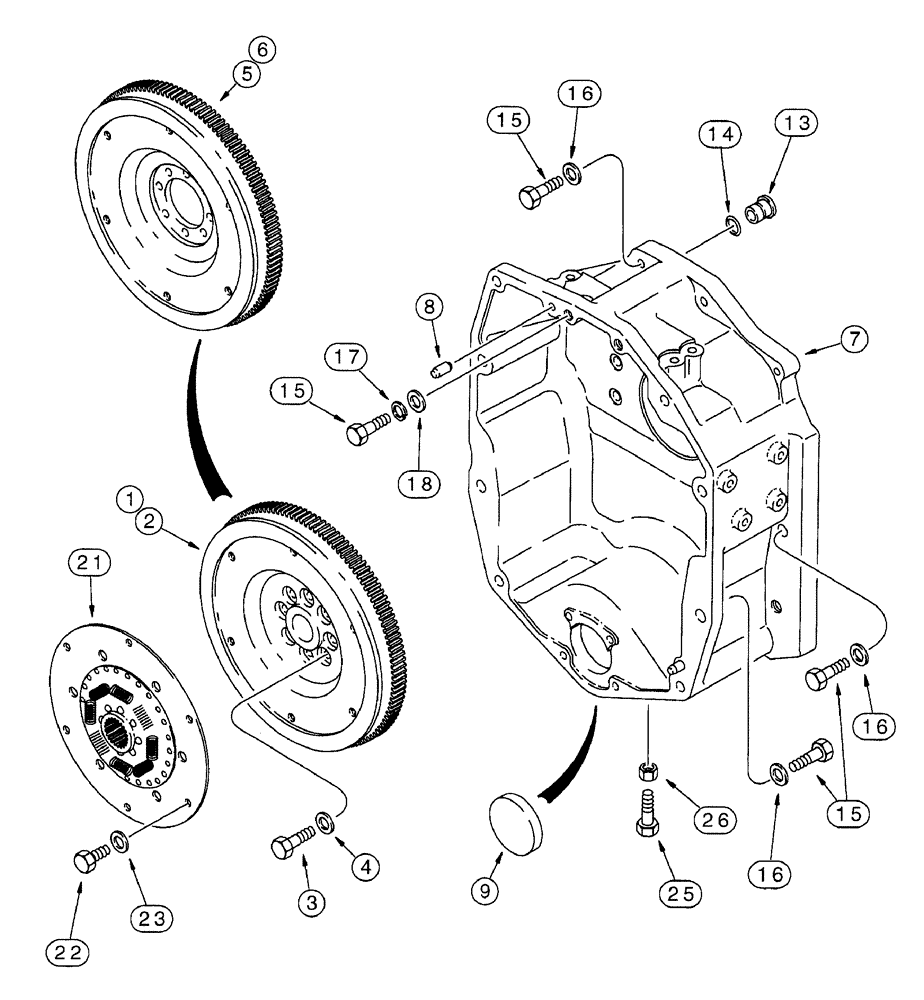

Запчасти Case IH 7210 (2-098) - FLYWHEEL AND HOUSING, 6T-830 ENGINE, ALL 7210 TRACTORS, 7220 MODELS PRIOR TO P.I.N. JJA0064978 (02) - ENGINE

1

J909939

FLYWHEEL

ASSEMBLY - engine, no longer used, for service order item 5, J934838 flywheel assembly

1шт.

2

J905031

GEAR

GEAR - flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, retaining

8шт.

5

J934838

FLYWHEEL

ASSEMBLY - engine, replaces J925872 flywheel assembly

1шт.

6

J905031

GEAR

GEAR - flywheel

1шт.

7

119491A1

HOUSING

flywheel

1шт.

8

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, 1/2 x 1-3/8 inch

2шт.

9

93141C1

PLUG

cup (Use without MFD)

1шт.

13

J910248

PLUG

flywheel housing, replaces J904470 plug

1шт.

14

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces J904469)

1шт.

15

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

Flywheel housing to bottom of clutch housing

2-14шт.

15

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

Flywheel housing to top of clutch housing

1шт.

15

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Flywheel housing to top of clutch housing

1шт.

15

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

Flywheel housing to bottom of clutch housing

2шт.

15

628-22065

BOLT,Hex, M22 x 2.5 x 65mm, Cl 10.9, Full Thd

Flywheel housing to side of clutch housing

2шт.

15

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

Flywheel housing to center of side channel

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

Speed housing to top of flywheel housing

2шт.

16

A157918

WASHER

flat, 12 mm, flywheel housing into engine

10шт.

16

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened, flywheel housing to top of clutch housing

1-2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, speed housing to top of flywheel housing

2шт.

16

1289123C1

WASHER

flat, 22 mm, flywheel housing to side of clutch housing

2шт.

16

A177650

WASHER

flat, flywheel housing to center of side channel

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, speed housing to top of flywheel housing

2шт.

17

892-11012

LOCK WASHER,M12

Flywheel Housing into Engine

2шт.

18

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

4шт.

21

92590C2

CLUTCH DISC,354.25mm OD

drive

1шт.

21

92590C2R

REMAN-CLUTCH DISC

Drive

1шт.

21

92590C2C

CORE-CLUTCH DISC

Return Number

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

25

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

(Plug hole without MFD)

2шт.

26

832-41312

NUT,M12 x 1.75, Cl 10

(Plug hole without MFD)

2шт.
