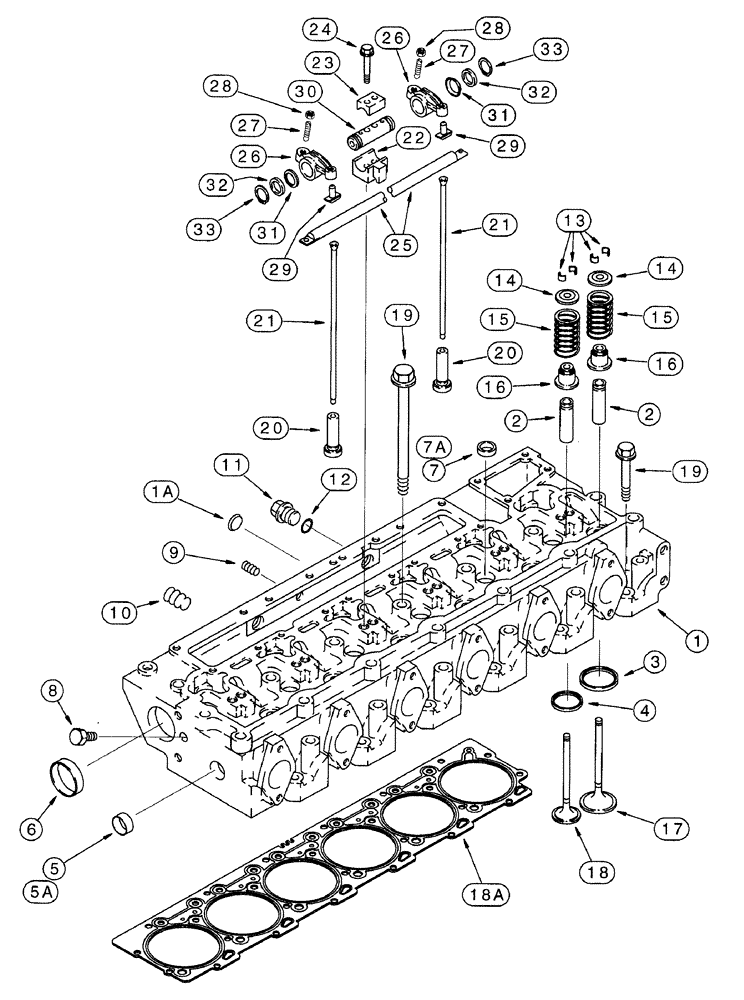

Запчасти Case IH 7210 (2-062) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENG, ALL 7210 TRCTR, 7220 MDLS PRIOR TO P.I.N. JJA0064978 (02) - ENGINE

JC913111

HEAD (CYLINDER)

Return Part Number - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

JR968930

REMAN-CYLINDER HEAD

ASSEMBLY - cylinder, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 18

1шт.

JC968930

CORE-CYLINDER HEAD

Return Part Number

1шт.

J925644

HEAD (CYLINDER)

ASSEMBLY - new, with valves

1шт.

1

J920026

HEAD (CYLINDER)

ASSEMBLY - new, without valves, no longer available, order J925644 new head assembly

1шт.

1a

J912900

PLUG

expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

valve stem

12шт.

3

J924582

INSERT

INSERT - intake valve, replaces J908830 insert

6шт.

3

J925468

SEAT, VALVE

INSERT - intake valve, 0.254 mm oversize, service repair only, replaces J914839 insert

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

seat, exhaust valve, replaces J904716 and J924583 insert

6шт.

4

J929006

INSERT

seat, exhaust valve, 0.254 mm oversize, service repair only, replaces J914386 and J925469 insert

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

seat, exhaust valve, 0.508 mm oversize, service repair only, replaces J925471 insert

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

expansion, 30 mm OD, used with J919919 head assembly

1шт.

5a

J920443

PLUG

expansion, 30 mm OD

1шт.

6

A77782

PLUG

expansion, 58 mm OD

2шт.

7

A77590

PLUG

expansion, used with J919919 head assembly

5шт.

7a

41-1616

PLUG,Cup, 1", Stainless

Replaces A77539

5шт.

8

A77534

PLUG

hex, 1/16 inch PT

1шт.

9

A77428

PLUG

hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, replaces J904386 plug

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J912976

RETAINER

valve spring

12шт.

15

J906412

VALVE SPRING

12шт.

16

J915707

SEAL

intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

J928168

GASKET

cylinder head, standard, replaces J921850 gasket

1шт.

19

J917728

BOLT

BOLT - cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J925031

TAPPET

valve, push rod, replaces J907240 tappet

12шт.

21

J905194

PUSH ROD

rocker arm

12шт.

22

J905870

SUPPORT

shaft, rocker arm

6шт.

23

J901693

CLAMP

retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

oil, rocker arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex, jam

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

rocker

6шт.

31

J906100

SPRING CUP

WASHER

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

flat, special, end

12шт.

33

100-1187

SNAP RING,#87, Ext

Replaces B18206

12шт.
