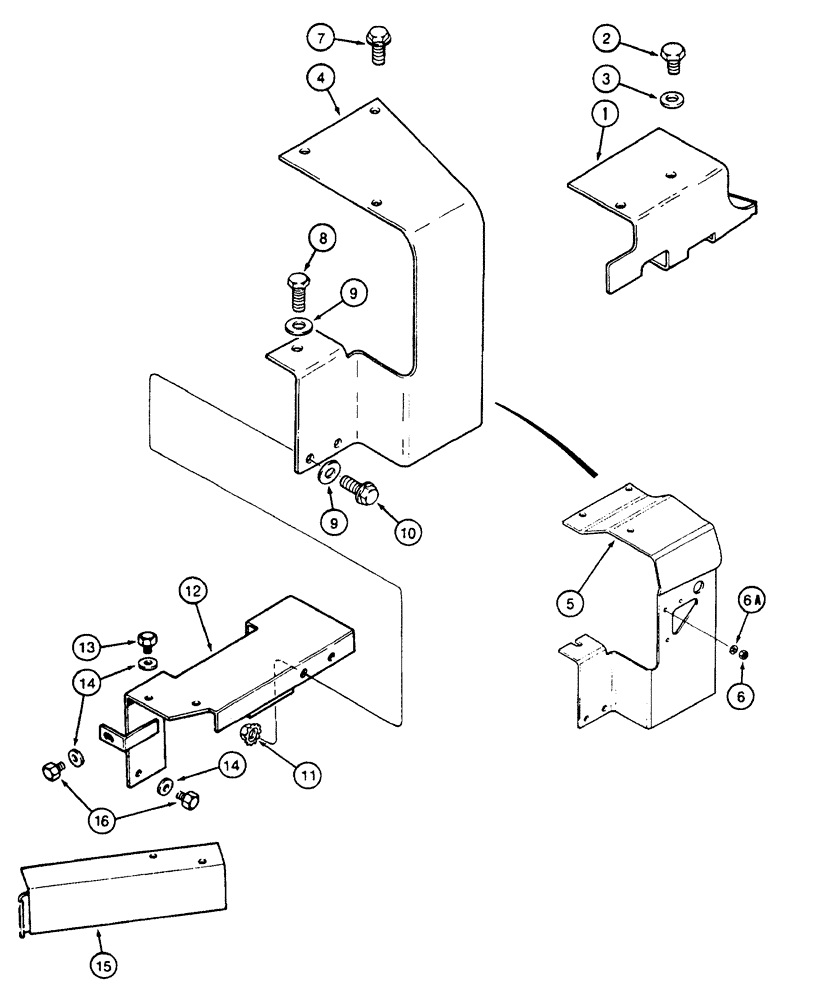

Запчасти Case IH 7210 (2-022) - EXHAUST SYSTEM SHIELDS (02) - ENGINE

1

1334628C6

GUARD

SHIELD - manifold

1шт.

2

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

1340698C1

SHIELD

turbocharger, see Fig. 2-14, items 16-22 for attaching clamp and hardware, prior to tractor P.I.N. JJA0064978

1шт.

5

102225A2

SHIELD

turbocharger, tractor P.I.N. JJA0064978 and after

1шт.

6

832-41306

NUT,M6 x 1, Cl 10

7220 only, Turbo shield to turbocharger mounting bosses

2шт.

6a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

2шт.

7

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

8

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

If Used

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

If Used

3шт.

10

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

11

1348399C1

FLANGE NUT

hex serrated flange, 10 - 15 mm, replaces 829-2410 flange nut used on some models

2шт.

12

1968122C1

SHIELD

starter, front

1шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

15

1289443C1

SHIELD

starter, rear

1шт.

16

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.
