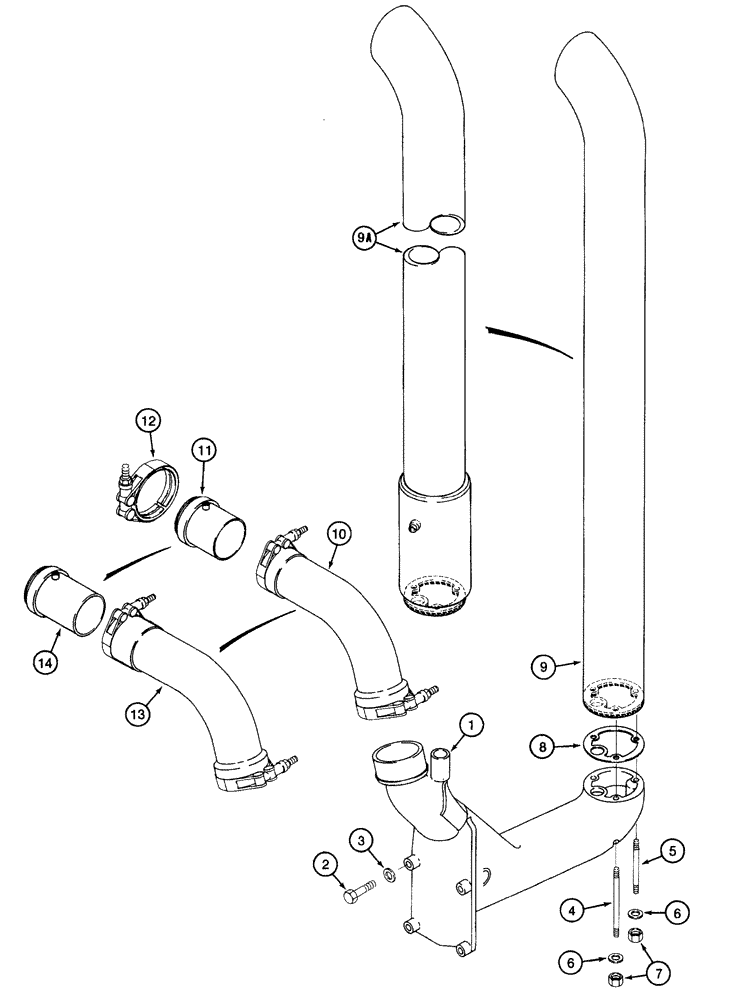

Запчасти Case IH 7210 (2-020) - EXHAUST SYSTEM (02) - ENGINE

1

1998855C2

ELBOW

exhaust casting

1шт.

2

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

1998799C2

STUD

12 x 150 mm

2шт.

5

1998800C2

STUD

12 x 60 mm

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

127594A1

NUT

hex, 12 mm - 1.75, special

3шт.

8

1998778C2

GASKET,1.22mm Thk

muffler, Serial Range: elbow-extension

1шт.

9

1347836C3

MUFFLER

PIPE - exhaust, extension, replaces 1347836C2 pipe, if used

1шт.

9a

139789A3

MUFFLER

PIPE - exhaust, extension, spark arresting muffler, if used

1шт.

9b

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

139789A3 pipe, Not shown

1шт.

10

135162A1

TUBE

TUBE - to turbocharger, no longer available, order 135725A2 tube and 180428A1 adapter, items 13 and 14

1шт.

11

1998707C1

ADAPTER

turbocharger, 4-23/32 inch (120 mm) long, no longer available, order 135725A2 tube and 180428A1 adapter, items 13 and 14

1шт.

12

A170807

CLAMP,102mm ID

retaining, special

1шт.

13

135725A3

TUBE

TUBE, Serial Range: --turbocharger

1шт.

14

180428A2

ADAPTER

turbocharger, 5-23/32 inch (145 mm) long

1шт.
