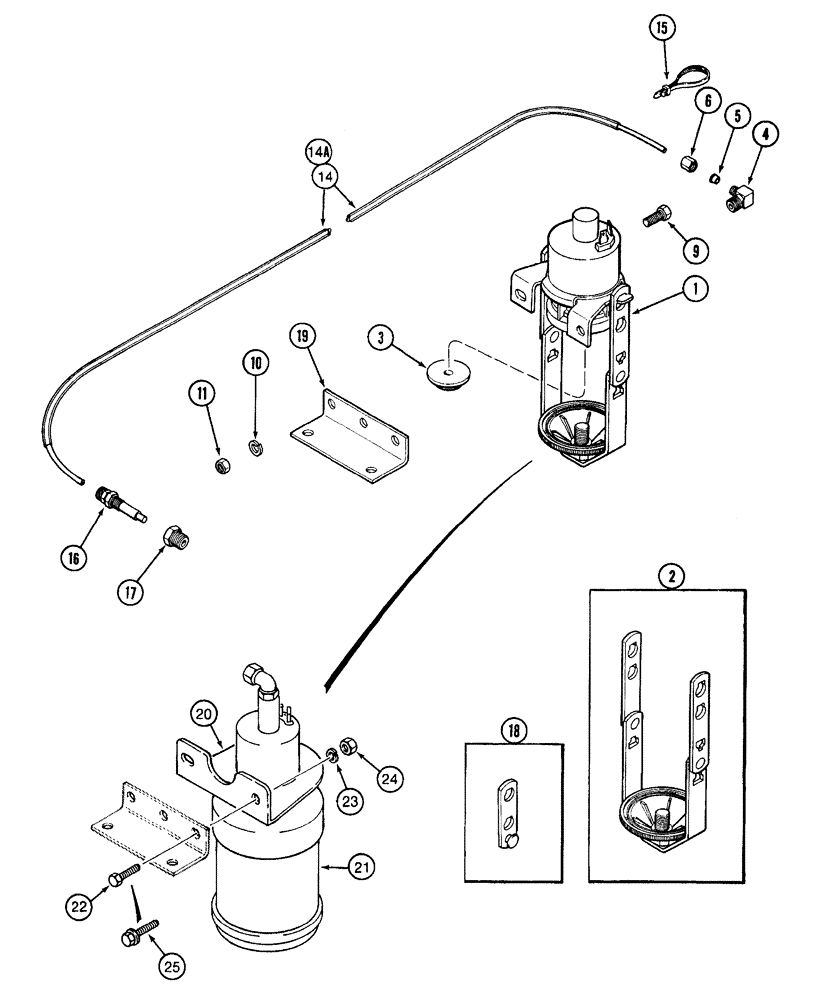

Запчасти Case IH 7210 (2-018) - ETHER STARTING SYSTEM (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, no longer available, order 185552A2 ether start solenoid, item 20

1шт.

2

D77648

BAIL

HANGER - ether can, no longer available, order 185552A2 solenoid assembly

1шт.

3

395686R1

GASKET

injector solenoid, 15/64 inch diameter, if used

1шт.

3a

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter, if used, not shown

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

4шт.

10

492-11031

LOCK WASHER,5/16"

If used

4шт.

11

425-105

NUT,5/16"-18, G5

If Used

4шт.

14

1974410C1

TUBE

1600 mm (63 inch) long, no longer available, order item 14A tube

1шт.

14a

A149932

TUBE

2006 mm (79 inch) long

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

16

A172900

NOZZLE CAP

ASSEMBLY - atomizer

1шт.

17

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Brass

1шт.

18

R30812

LINK

extension

2шт.

19

1960785C2

SUPPORT

BRACKET - ether mounting, if used

1шт.

20

185552A2

SOLENOID

ASSEMBLY - ether injection, continuous flow

1шт.

21

190752A1

HOUSING

ether injection solenoid

1шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If used

4шт.

23

892-11008

LOCK WASHER,8mm ID

If used

4шт.

24

825-1408

NUT,M8, Cl 8

If used

4шт.

25

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

Replaces items 9 through 11 or 22 through on some models

2шт.
