Запчасти Case IH 7210 (2-014) - AIR INDUCTION SYSTEM (02) - ENGINE

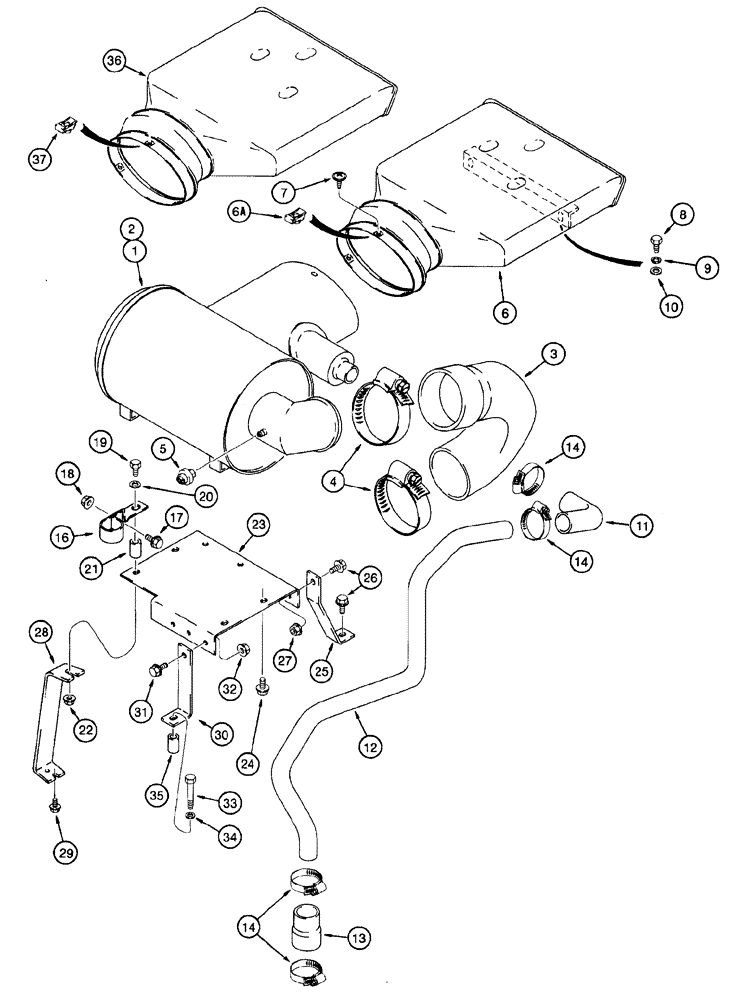

Схема запчастей Case IH 7210 - (2-014) - AIR INDUCTION SYSTEM (02) - ENGINE
35
13
19
29
21
12
28
14
24
4
30
36
32
23
37
9
2
33
14
16
18
1
11
5
6a
6
8
25
7
26
20
14
22
34
3
17
27
31
10

Артикул

Название

Примечание

Количество

1

113077A1

AIR CLEANER

Assembly W/ Precleaner, Includes Ref. 2, See Figure 2-016

1шт.

2

NSS

NOT SOLD SEPARAT

PRECLEANER - engine, included with air cleaner assembly

1шт.

3

1289073C2

LARGE HOSE

HOSE,LARGE air, Serial Range: cleaner-turbocharger

1шт.

4

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

Adj.

2шт.

5

1983640C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

6

113078A1

DUCT

air intake, with lower bracket, prior to tractor P I N JJA0064978

1шт.

6a

96900C1

SPRING NUT,U, #10-16, Panel type

3шт.

7

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

Precleaner to air duct

3шт.

8

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

If used

2шт.

9

892-11008

LOCK WASHER,8mm ID

If used

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If used

2шт.

11

1998851C1

HOSE

90 degree, aspirator

1шт.

12

121746A1

TUBE

TUBE - aspirator

1шт.

13

1998858C1

HOSE

aspirator

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

4шт.

16

1334309C2

COLLAR CLAMP

aspirator tube, mounts to turbo shield

1шт.

17

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.

18

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

19

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

A176570

SPACER

clamp

1шт.

22

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

23

1348516C3

SUPPORT

BRACKET - plate, air cleaner

1шт.

24

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

25

1348518C1

SUPPORT

BRACKET - air cleaner support, mounts to cylinder head

1шт.

26

905-10025

BOLT,Hex Flg, M10 x 25mm

2шт.

27

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

28

1340702C1

SUPPORT

air cleaner

1шт.

29

905-8012

BOLT,Hex Flg, M8 x 12mm

1шт.

30

1348517C1

SUPPORT

BRACKET - air cleaner mounting, mounts to cylinder head

1шт.

31

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.

32

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

33

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

35

A176570

SPACER

clamp

1шт.

36

142742A1

DUCT

air intake, without lower bracket, tractor P.I.N. JJA0064978 and after

1шт.

37

96900C1

SPRING NUT,U, #10-16, Panel type

3шт.

Выбрано товаров: 37
