Запчасти Case IH 7210 (9-116) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

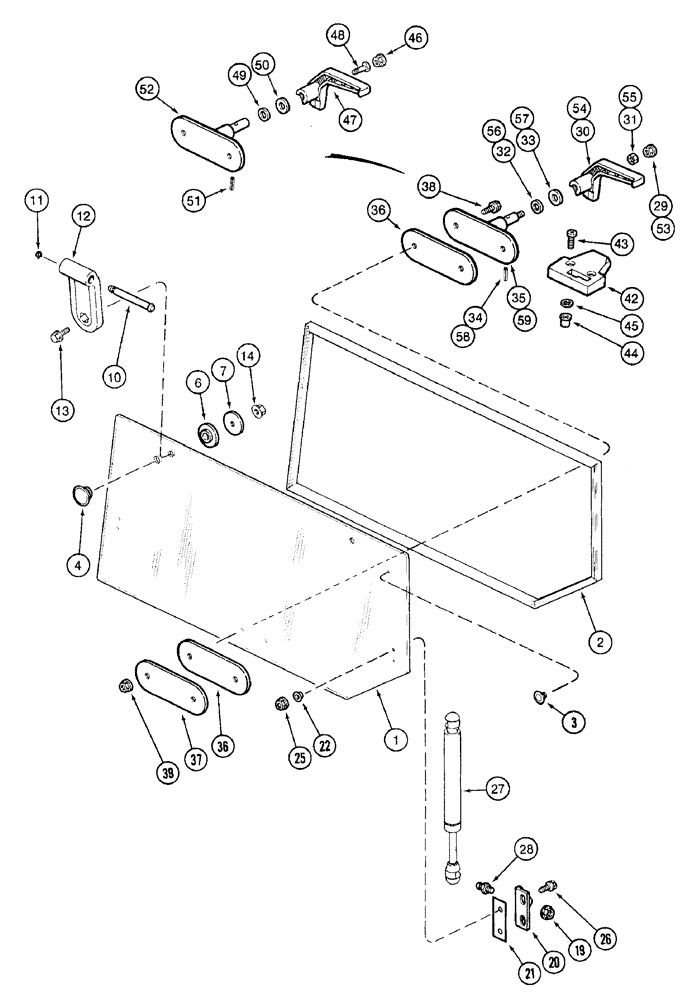

Схема запчастей Case IH 7210 - (9-116) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS
39
47
59
53
48
21
10
43
46
38
27
25
14
2
33
36
7
50
37
52
6
31
1
45
20
30
57
58
51
13
44
32
55
35
54
49
34
12
3
28
26
29
11
56
22
42
19
4
36

Артикул

Название

Примечание

Количество

1

232329A1

GLASS

window, rear, replaces 1999977C2 glass

1шт.

2

1999976C1

SEAL

glass, window

1шт.

3

F66089

PLUG

3/8 inch diameter, window

1шт.

4

F66090

PLUG

29/32 inch diameter, window

1шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

rubber

2шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

flat, 6 mm

2шт.

10

K303517

PIN

hinge

2шт.

11

800-418

SNAP RING,M8, Ext

Replaces 31355R1 ring

2шт.

12

1999808C1

HINGE

window

2шт.

13

107135A1

BOLT

BOLT - hex flange

2шт.

14

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

2шт.

19

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

2шт.

20

138739A1

SUPPORT

BRACKET - cylinder

2шт.

21

109587C2

PAD

bracket

2шт.

22

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

bolt

4шт.

25

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

4шт.

26

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

4шт.

27

1343825C1

GAS STRUT,306mm Extended, 207.02mm Compressed

CYLINDER - gas spring

2шт.

28

1999766C1

BALL JOINT

STUD

2шт.

1340201C1

HANDLE

ASSEMBLY - window, with 6 mm nut, no longer available, order 194910A1 handle

1шт.

29

1340207C1

PLUG

window hinge

1шт.

30

1340205C1

HANDLE

rear window, for service order 19491OA1 handle

1шт.

31

825-1406

NUT,M6, Cl 8

1шт.

32

1340206C1

RUBBER BUSHING

rubber

1шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

34

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

Replaces 19443R1 pin

1шт.

35

1340202C1

PLATE

clamping, for service order 224730A1 handle

1шт.

36

1340208C1

RUBBER PAD

PAD - rubber

2шт.

37

1340203C1

PLATE

clamping

1шт.

38

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

BOLT - hex flange, special

2шт.

39

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

2шт.

42

1340142C1

PLATE

striker

1шт.

43

261-34720

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

2шт.

44

97017C1

INSERT

threaded, 6 mm, if used

2шт.

45

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

194910A1

HANDLE

ASSEMBLY - window, with bolt instead of nut, used in production, for service order 224730A1 handle

1шт.

46

1340207C1

PLUG

window hinge

1шт.

47

1340205C1

HANDLE

rear window, for service order 194910A1 handle

1шт.

48

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

1шт.

49

1340206C1

RUBBER BUSHING

rubber

1шт.

50

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

51

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

52

194322A1

PLATE

clamping, for service order 224730A1 handle

1шт.

224730A1

HANDLE

ASSEMBLY - window, with 8 mm nut

1шт.

53

224734A1

PLUG

window hinge

1шт.

54

224731A1

HANDLE

rear window

1шт.

55

825-1408

NUT,M8, Cl 8

1шт.

56

1340206C1

RUBBER BUSHING

rubber

1шт.

57

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

58

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

59

224732A1

PLATE ASSY.

clamping

1шт.

Выбрано товаров: 51
