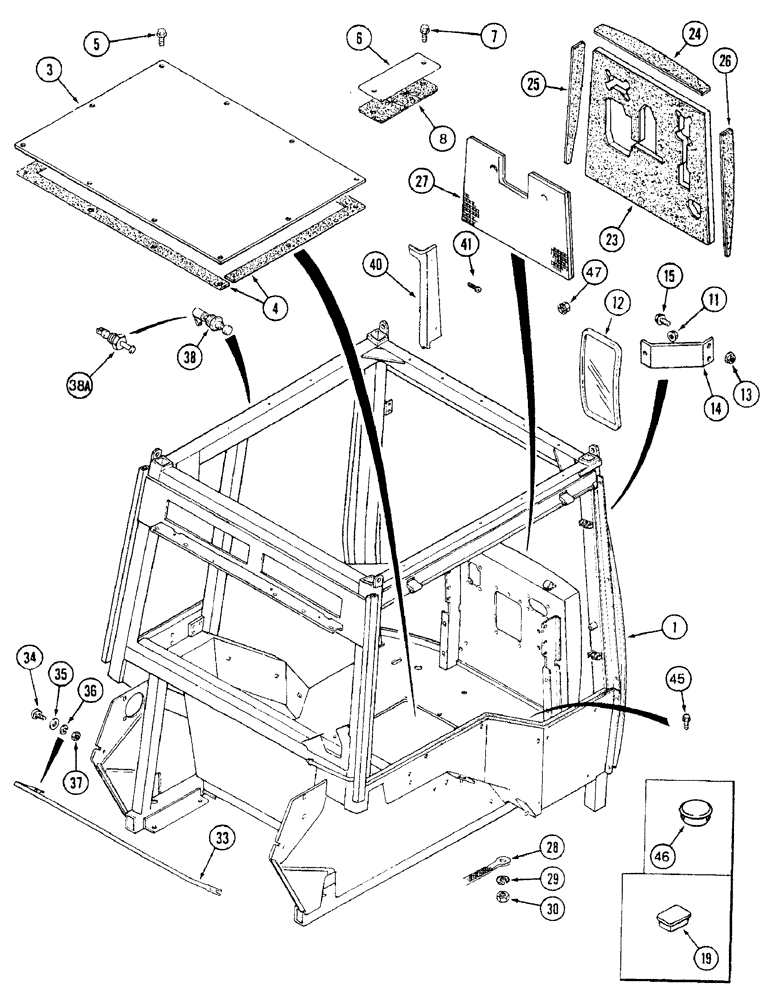

Запчасти Case IH 7210 (9-104) - CAB FRAME (09) - CHASSIS/ATTACHMENTS

A67965

CAB

ASSEMBLY - stripped, tractor, see note, no longer available, can use A67974 cab assembly but some modifications may be needed to the tractor depending on tractor version

1шт.

Stripped cab consists of: Frame weldment, interior and exterior trim, air conditioning, heater, fenders, glass and door

1шт.

A67963

CAB

ASSEMBLY - fully equipped, tractor, see note, no longer available, order cab assembly A67976 for Magnum tractors built prior to serial number JJA00719999; order cab assembly A67975 for serial number JJA0072000 and after

1шт.

Fully equipped cab consists of : Frame weldment, interior and exterior trim, air conditioning, heater, fenders, glass, door, deluxe seat, fuel tank, and complete instrumentation and console controls.

1шт.

1

104606A3

FRAME

ASSEMBLY - cab, not serviced separately, order cab assembly, not shown

1шт.

3

96964C1

PLATE ASSY.

floor access

1шт.

4

1971260C1

SEAL

floor access plate

2шт.

5

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

10шт.

6

96951C1

PLATE ASSY.

implement cable

1шт.

7

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

2шт.

8

A165354

SEAL

plate

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

12

A177462

MIRROR

rear view, includes mounting hardware

1шт.

13

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

2шт.

14

96845C1

BRACKET

mirror

1шт.

15

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

self-locking, hex flange, special, 5/16 NC x 3/4 inch

2шт.

19

97028C1

PLUG

post, right

1шт.

23

1334281C3

INSULATOR

PAD - firewall, front

1шт.

24

1334282C2

INSULATOR

PAD - upper

1шт.

25

1334283C2

INSULATOR

PAD - firewall, left

1шт.

26

1334284C2

INSULATOR

PAD - firewall, right

1шт.

27

97027C1

PAD

firewall

1шт.

28

91963C1

GROUND STRAP

1шт.

29

892-11010

LOCK WASHER,M10

1шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

33

97246C2

HANDLE

rear, models without remote hitch switch, (see item 13, fig. 8-32, for handle on models with remote hitch switch)

1шт.

34

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

35

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

36

492-11031

LOCK WASHER,5/16"

4шт.

37

425-105

NUT,5/16"-18, G5

4шт.

38

245175C1

SWITCH

dome lamp, with bent blade terminals, if used

1шт.

38a

136893A1

SWITCH

dome lamp, with straight male blade terminals, if used

1шт.

40

96720C2

COVER ASSY

front cab post, left side lower

1шт.

41

1344112C1

SCREW,Cross Rec Pan Hd, 10" - 24 x 1"

Phillips, self-tapping, polyseal (Black)

2шт.

41

1990953C1

SELF-TAP SCREW

Phillips washer, No. 10-24 x 1 inch (Gray)

2шт.

45

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm

2шт.

46

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with interior mirror

1шт.
