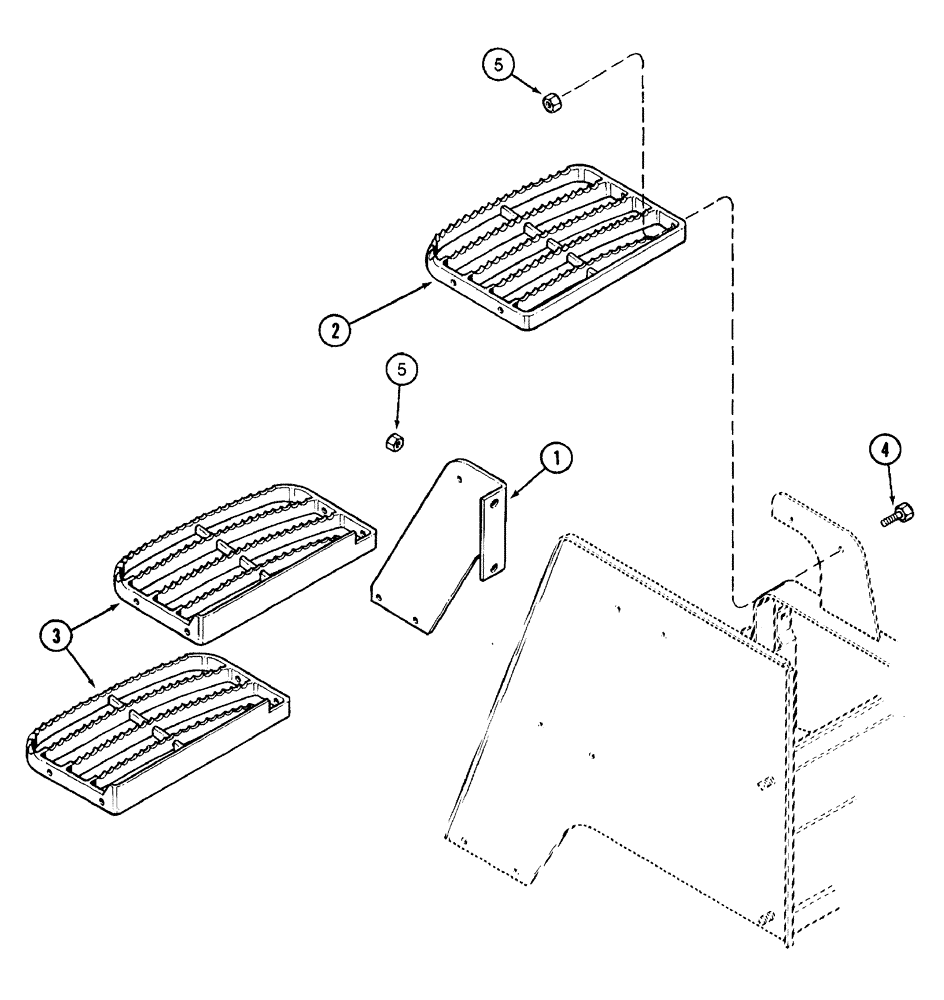

Запчасти Case IH 7210 (9-102) - STEPS (09) - CHASSIS/ATTACHMENTS

1

96639C1

SUPPORT ASSY.

step, intermediate and lower

1шт.

2

97049C3

STEP

tractor, top

1шт.

3

97050C3

STEP

ladder, intermediate and lower

2шт.

4

1348398C1

BOLT

BOLT - hex, 10 x 35 mm, grade 8.8

12шт.

5

1348399C1

FLANGE NUT

hex serrated flange, 10 - 1.5 mm

14шт.

6

198841A1

STEP

Attachment, 4th Step Support

1шт.
