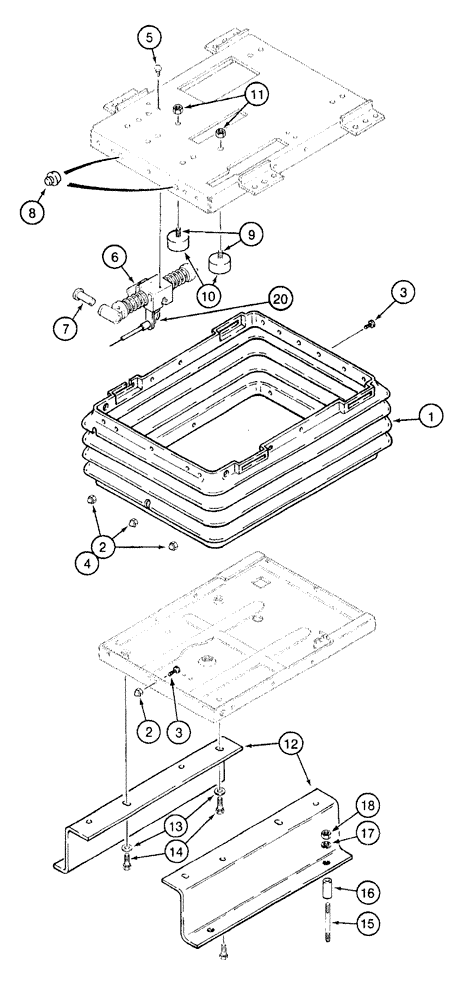

Запчасти Case IH 7210 (9-098) - DELUXE AIR SUSPENSION SEAT - BOOTS & MOUNTS, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS

1999936C3

SEAT ASSY.

deluxe air suspension, parts list fig.'s 9- 86 - 9-98

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, service, parts list fig.'s 9-90 - 9-98

1шт.

133421A1

PACKAGE

KIT - boot, with buttons

1шт.

1

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - dome

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

25шт.

4

NSS

NOT SOLD SEPARAT

CLIP - dart

3шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

6

132863A1

ISOLATOR

LATCH - fore and aft, component parts not serviced separately

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, included in 180594A3 roller and bearing kit on fig.9-94

1шт.

8

133422A1

BUMPER

down stop

2шт.

180593A1

KIT

KIT - bumper, service

1шт.

9

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

10

NSS

NOT SOLD SEPARAT

BUMPER - rubber, upper housing

2шт.

11

231-1444

NUT,1/4"-20, GB

2шт.

NSS

NOT SOLD SEPARAT

SPACER - not shown

2шт.

12

144847A1

RISER

BRACKET - mounting, seat, 3-1/4 inch high riser, prior to seat serial number 1348826

2шт.

12

222771A1

RISER

BRACKET - mounting, seat, 3-7/8 inch high riser, effective seat serial number 1348826 and after

2шт.

13

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

1954650C1

STUD

8 x 80 mm

4шт.

16

F15988

SPACER

seat mounting

4шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

190156A1

SHOCK ABSORBER

KIT - block, sheave

1шт.

NSS

NOT SOLD SEPARAT

BLOCK - sheave

1шт.

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

21

132868A1

SET OF PARTS

KIT - height adjustment, not shown, see fig. 9-86, item 33

1шт.
