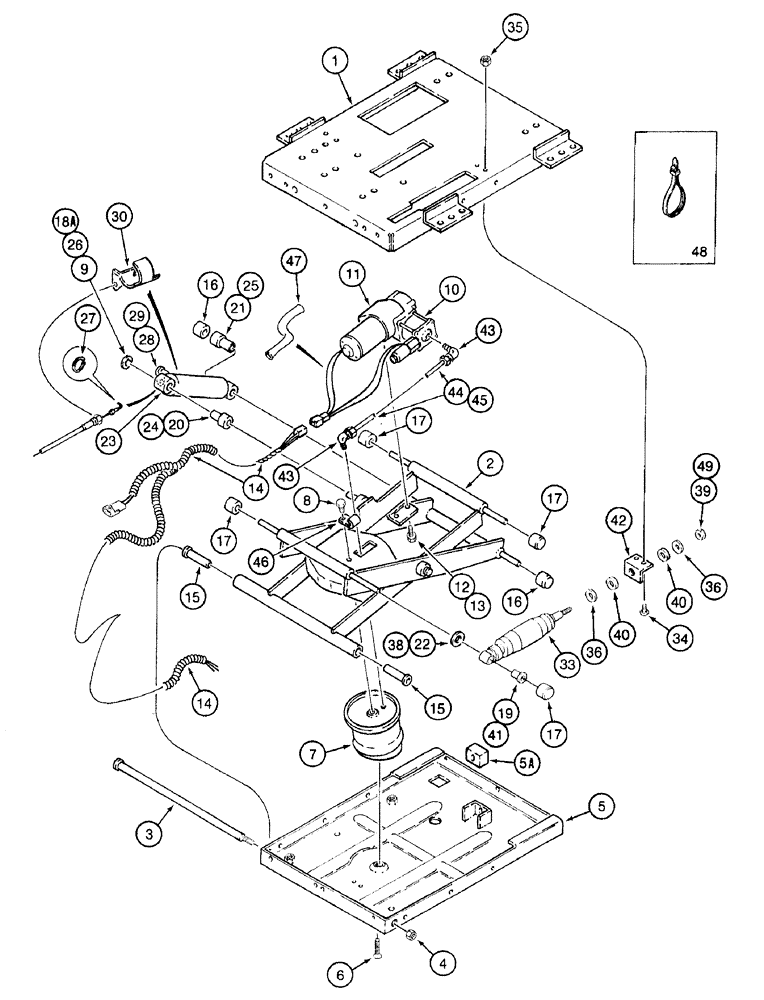

Запчасти Case IH 7210 (9-094) - DELUXE AIR SUSPENSION SEAT - SUSPENSION, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS

1999936C3

SEAT ASSY.

deluxe air suspension, parts list fig.'s 9-86 - 9-98

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, service, parts list fig.'s 9-90 - 9-98

1шт.

1

241189A1

HOUSING

upper, suspension, replaces 1990642C1 housing

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

bushing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

1шт.

5

226560A1

HOUSING

lower

1шт.

5a

A45054

BUMPER,Neoprene

seat, housing

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

197793A1

SPRING

KIT - air spring, includes air spring, J-clip and (3) tie straps

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

3шт.

132864A1

KIT

KIT - compressor/valve, includes compressor, valve, mount, air line tubing, (2) screws, (2) sleeves and (2) nuts

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

14

132867A1

HARNESS

wire

1шт.

180594A3

KIT

KIT - rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, also includes latch bar, bearing and spacer which are not shown

1шт.

15

A47760

BUSHING

TUBE - bearing, shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide

2шт.

18

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow, not shown

2шт.

18a

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

21a

NSS

NOT SOLD SEPARAT

BEARING - isolator tube, not shown, see item 7 on fig. 9-98

1шт.

21b

NSS

NOT SOLD SEPARAT

BEARING - patch bar, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

22a

NSS

NOT SOLD SEPARAT

SPACER - not shown

1шт.

132866A1

SHOCK ABSORBER

KIT - shock absorber, includes shock, (2) bearings, fastener, actuator arm, roll pin, bracket and retaining ring

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

144514A1

SUPPORT

BRACKET - cable control, shock

1шт.

227546A1

KIT

KIT - shock, fore/aft replaces 1990646C3 shock kit

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

35

231-1444

NUT,1/4"-20, GB

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

40

A49679

BUSHING

rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

42

1981845C1

ANGLE

mounting, shock mounting

1шт.

132871A1

SET OF PARTS

KIT - fitting

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

49

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.
