Запчасти Case IH 7210 (9-084) - DELUXE AIR SUSPENSION SEAT - BOOT & MOUNTS, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS

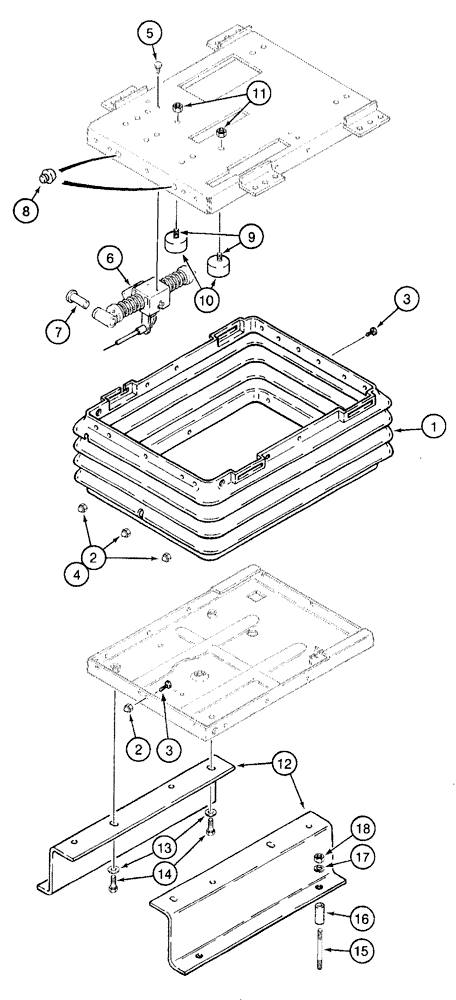

Схема запчастей Case IH 7210 - (9-084) - DELUXE AIR SUSPENSION SEAT - BOOT & MOUNTS, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS
11
14
3
17
6
9
1
15
16
2
12
13
10
5
8
7
3
2
4
18

Артикул

Название

Примечание

Количество

1999936C1

SEAT ASSY.

deluxe air suspension, parts list fig'.s 9-74 - 9-84, no longer available, order 1999936C3 seat assembly on fig. 9-86

1шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, parts list fig'.s 9-76 - 9-84, no longer available, order 132861A3 suspension kit on fig'.s 9-90 - 9-98

1шт.

133421A1

PACKAGE

KIT - boot, with buttons

1шт.

1

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - dome

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

23шт.

4

NSS

NOT SOLD SEPARAT

CLIP - dart

3шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

6

132863A1

ISOLATOR

LATCH - isolator, fore and aft, component parts not serviced separately

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, included in 1990644C2 roller and bearing kit on fig. 9-80

1шт.

8

133422A1

BUMPER

down stop

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch

2шт.

10

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing

2шт.

11

231-1444

NUT,1/4"-20, GB

2шт.

12

134147A1

SUPPORT

BRACKET - mounting, seat, 1-3/4 inch high riser, no longer used on deluxe seats, order 144847A1 riser bracket

2шт.

12

144847A1

RISER

BRACKET - mounting, seat, 3-1/4 inch high riser

2шт.

13

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

1954650C1

STUD

8 x 80 mm

4шт.

16

F15988

SPACER

seat mounting

4шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

Выбрано товаров: 23
