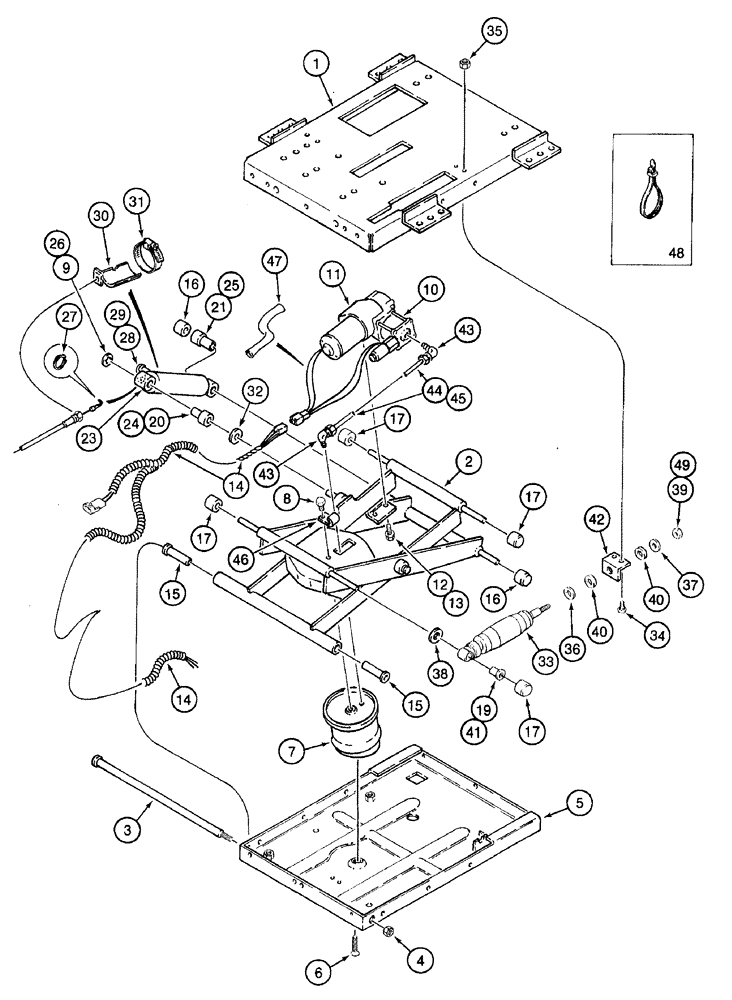

Запчасти Case IH 7210 (9-080) - DELUXE AIR SUSPENSION SEAT - SUSPENSION, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS

1999936C1

SEAT ASSY.

deluxe air suspension, parts list fig'.s 9-76 - 9-84, no longer available, order 1999936C3 seat assembly on fig'.s 9-86

1шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, parts list figures 9-76 - 9-84, no longer available, order 132861A3 suspension kit on fig'.s 9-90 - 9-98

1шт.

1

1990642C1

HOUSING

upper, suspension

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

bushing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

1шт.

5

1981834C1

HOUSING

lower

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

7

1981842C1

SPRING

air, no longer available, order 197793A1 kit on fig. 9-94

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

132864A1

KIT

KIT - compressor/valve, includes compressor, valve, mount, air line tubing, (2) screws, (2) sleeves and (2) nuts

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

132867A1

HARNESS

wire

1шт.

1990644C2

PACKAGE

KIT - rollers and bearings, no longer available, order 180594A3 kit on fig. 9-94

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see item 7 on fig. 9-84 for bearing

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

132866A1

SHOCK ABSORBER

KIT - includes shock, (2) bearings, fastener, actuator arm, roll pin, bracket and retaining ring, suspension

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

134145A1

SUPPORT

BRACKET - cable control, no longer available, order 144514A1 bracket on fig.9-94

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP - shock

1шт.

32

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

227546A1

KIT

KIT - shock, fore/aft, replaces 1990646C3 shock kit

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

35

231-1444

NUT,1/4"-20, GB

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

37

A49678

WASHER

flat, 21/64 x 1 x 5/64 inch

1шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

40

A49679

BUSHING

rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

42

1981845C1

ANGLE

mounting, shock mounting

1шт.

132871A1

SET OF PARTS

KIT - fitting

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

135536A1

TUBE

SLEEVE - guard, 419 mm (16-1/2 inch) long, cut from 179026A1 sleeve

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

49

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.
