Запчасти Case IH 7210 (9-076) - DELUXE AIR SUSPENSION SEAT - SWIVEL PLATE & SLIDES, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS

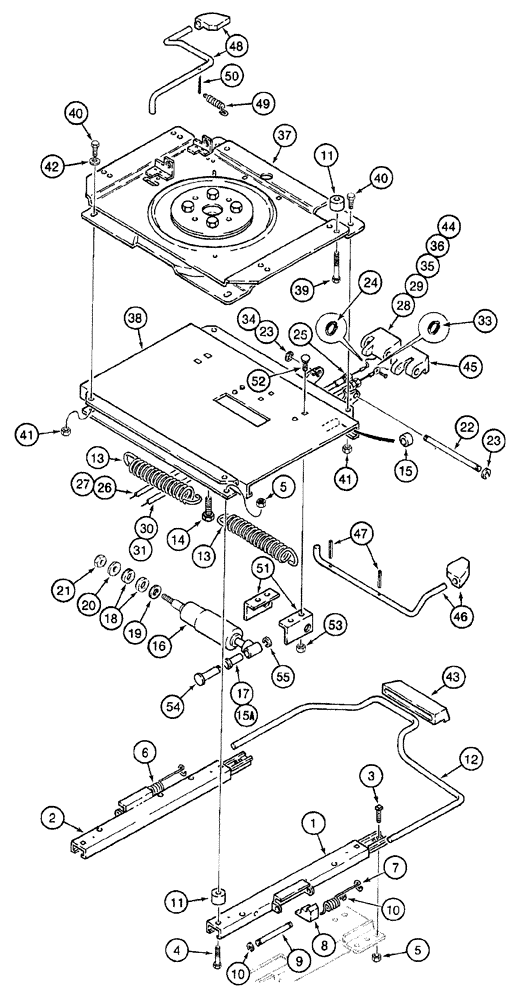

Схема запчастей Case IH 7210 - (9-076) - DELUXE AIR SUSPENSION SEAT - SWIVEL PLATE & SLIDES, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS
10
26
38
29
55
17
40
14
31
20
42
46
2
25
40
5
39
47
11
16
10
30
41
33
18
43
37
1
22
45
49
5
52
24
50
4
6
23
34
36
15a
11
9
41
13
19
12
27
15
23
7
35
21
51
28
53
8
44
13
48
54
3

Артикул

Название

Примечание

Количество

1999936C1

SEAT ASSY.

deluxe air suspension, parts list fig'.s 9-74 - 9-84

1шт.

132875A1

SLIDE

KIT - seat

1шт.

1

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

3

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

5

230-4215

NUT,5/16"-18, GA

8шт.

6

135513A1

SPRING

torsion, left-hand

1шт.

7

135514A1

SPRING

torsion, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

If used

2шт.

10a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

push-on type, 1/4 x 17/32 inch, if used, not shown

2шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, parts list also on fig'.s 9-76 - 9-84, no longer available, order 132861A3 suspension kit on fig'.s 9-86 - 9-98

1шт.

11

134144A1

SPACER

plate

8шт.

12

134146A1

CONTROL LEVER

slide control

1шт.

1987290C1

SET OF PARTS

KIT - spring, lateral isolator, includes (2) springs and (1) bolt

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - lateral

2шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

135512A3

PACKAGE

KIT - roller bearing, isolator, includes (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring, replaces 135512A1 and 135512A1 kits

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

15a

NSS

NOT SOLD SEPARAT

ROLLER - bearing

1шт.

15b

NSS

NOT SOLD SEPARAT

SPACER - shock, upper roller, not shown

1шт.

1987219C2

SET OF PARTS

KIT - lateral isolator shock, includes shock absorber, (1) bearing, (2) bushings, (1) nut, (2) washers, (1) spacer and (1) retaining ring

1шт.

16

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - rubber

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/32 x 13/16 x 1/16 inch, one required

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - flat, 21/64 x 1 x 5/64 inch, one required

2шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 5/16 inch NF, one required

2шт.

132869A1

KIT

KIT - ride firmness control

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - control pivot

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 1/4 inch NC

2шт.

26

NSS

NOT SOLD SEPARAT

CABLE - shock adjust

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, cable

3шт.

28

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, parts list on fig'.s 9-76 - 9-84, no longer available, order 132861A3 suspension kit on fig'.s 9-90 - 9-98

1шт.

132870A1

SET OF PARTS

KIT - isolator lock cable

1шт.

30

NSS

NOT SOLD SEPARAT

CABLE - isolator lock

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, cable

3шт.

32

NSS

NOT SOLD SEPARAT

RIVET - retainer, not shown

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

34

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

35

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

37

134148A1

SEAT SUPPORT

PLATE - swivel, complete, includes items 48-50

1шт.

38

132878A2

ISOLATOR

PLATE - lateral isolator, complete, includes items 13-21, replaces 132878A1 plate

1шт.

39

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

40

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

41

231-4115

NUT,5/16"-18, GB

4шт.

42

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

134143A1

SET OF PARTS

KIT - control knob

1шт.

43

NSS

NOT SOLD SEPARAT

KNOB - fore/aft slide

1шт.

44

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator

1шт.

45

NSS

NOT SOLD SEPARAT

KNOB - damping adjustment

1шт.

46

135510A1

ROD, ADJUSTMENT

ROD, ADJUSTING isolator, includes knob

1шт.

47

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

2шт.

48

135511A1

ROD, ADJUSTMENT

ROD, ADJUSTING swivel, includes knob

1шт.

49

A47375

SPRING

detent

1шт.

50

NSS

NOT SOLD SEPARAT

PIN - cotter

1шт.

51

NSS

NOT SOLD SEPARAT

BRACKET - angle

2шт.

52

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

53

231-4115

NUT,5/16"-18, GB

4шт.

54

1344025C1

PIVOT PIN

clevis, shock absorber

1шт.

55

100-3350

SNAP RING,#50, .392" Dia, E-Type

(Replaces A27804)

1шт.

Выбрано товаров: 68
