Запчасти Case IH 7210 (9-068) - STANDARD AIR SUSPENSION SEAT - SUSPENSION, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS

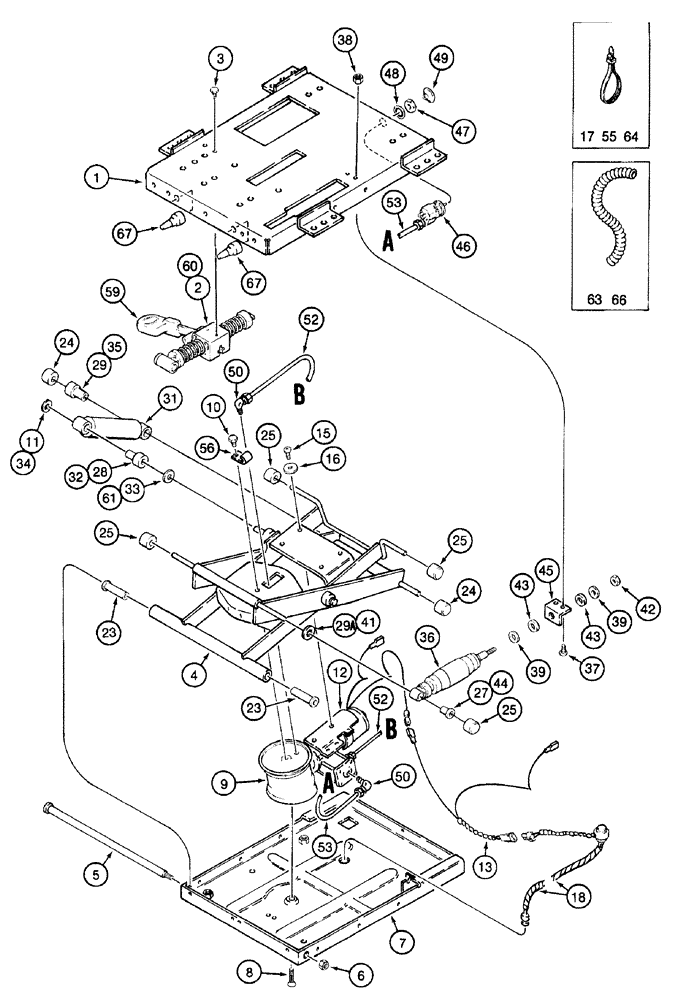

Схема запчастей Case IH 7210 - (9-068) - STANDARD AIR SUSPENSION SEAT - SUSPENSION, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS
17
32
29a
67
27
39
37
43
25
39
64
8
23
46
10
47
9
31
29
24
28
50
60
2
66
59
36
7
23
41
15
53
49
34
53
56
35
11
6
52
45
3
12
50
18
63
42
52
48
43
5
25
25
16
33
4
1
13
44
61
24
67
55
25
38

Артикул

Название

Примечание

Количество

1999934C2

SEAT ASSY.

standard air suspension, parts list fig. 9-64 - 9-72

1шт.

241196A1

SUSPENSION

KIT - suspension, service, parts list fig'.s 9-66 - 9-72, replaces 1990648C3 and 1990648C5 suspension kits

1шт.

1

241189A1

HOUSING

upper, suspension, replaces 1990642C1 housing

1шт.

2

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, component parts not serviced separately, see fig. 9-72 for exploded view of parts

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

4

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

5

A49529

SHAFT

bushing tube

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

1шт.

7

226560A1

HOUSING

lower, replaces 1981834C1 housing

1шт.

7a

A45054

BUMPER,Neoprene

seat, used with 226560A1 housing, not shown

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

197793A1

SPRING

KIT - air, includes air spring, J-clip and (3) tie straps

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

9

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

1999947C4

COMPRESSOR

KIT

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

13

134237A2

HARNESS

compressor wire

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 OD, not used, not shown

2шт.

15

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

16

495-31022

WASHER,#10

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

18

134456A1

HARNESS

wire adapter, with grommet

1шт.

19

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing, not shown, see item 15 on fig. 9-66 for bumper

2шт.

1990647C2

KIT

KIT - boot, suspension, with buttons, illustrated on fig. 9-72

1шт.

20

NSS

NOT SOLD SEPARAT

BOOT - suspension, not shown

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - dome, not shown

3шт.

22

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic, not shown

23шт.

22a

NSS

NOT SOLD SEPARAT

CLIP - dart, plastic, not shown

3шт.

180594A3

KIT

KIT - rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, also includes (1) spacer, not shown and item 34 nut

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

24

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide

2шт.

25a

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see item 13 or 18 on fig. 9-72 for bearing

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

29a

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

1344250C2

KIT

KIT - shock absorber, suspension

1шт.

31

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

33

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

227546A1

KIT

KIT - shock, fore/aft, replaces 1990646C3 shock kit

1шт.

36

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

37

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

38

231-1444

NUT,1/4"-20, GB

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

41

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

42

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

43

A49679

BUSHING

rubber

2шт.

44

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

45

1981845C1

ANGLE

mounting, shock mounting

1шт.

1981852C3

SWITCH

ASSEMBLY - air control, valve, replaces 1981852C2

1шт.

46

NSS

NOT SOLD SEPARAT

SWITCH - air control

1шт.

47

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 5/8 inch NF

1шт.

48

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

1шт.

49

1987186C2

KNOB

KNOB - switch, air suspension, replaces 1987186C1 knob

1шт.

1990548C4

KIT

KIT - air line and fittings, includes (2) elbows, (1) tee, (2) adapters, 3.5 feet nylon tubing, (5) tie straps and (1) J-clip, replaces 1990548C3 kit

1шт.

50

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

51

NSS

NOT SOLD SEPARAT

TEE - male, 5/32 x 5/32 tube x 1/8 NPT, not shown, not used

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch

1шт.

53

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch

1шт.

54

NSS

NOT SOLD SEPARAT

ADAPTER - tube, plastic, not used, not shown

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

56

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - air suspension, not shown

1шт.

57

NSS

NOT SOLD SEPARAT

KNOB - swivel latch, not used, not shown

1шт.

58

NSS

NOT SOLD SEPARAT

KNOB - lateral isolator, not used, not shown

1шт.

59

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator latch assembly, not shown, see item 17 on figure 9-72 for knob

1шт.

60

NSS

NOT SOLD SEPARAT

SPRING - isolator latch lock, not shown, see item 5 on fig. 9-72 for spring, order 1990645C1 kit on fig. 9-72

1шт.

61

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

63

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

65

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch, not shown, see item 14 on fig. 9-66 for screw

2шт.

66

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

67

133422A1

BUMPER

down stop, not shown, see item 12 on fig. 9-66 for bumper

2шт.

Выбрано товаров: 82
