Запчасти Case IH 7210 (9-064) - STANDARD AIR SUSPENSION SEAT - CUSHION, ARM REST & SEAT BELT, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS

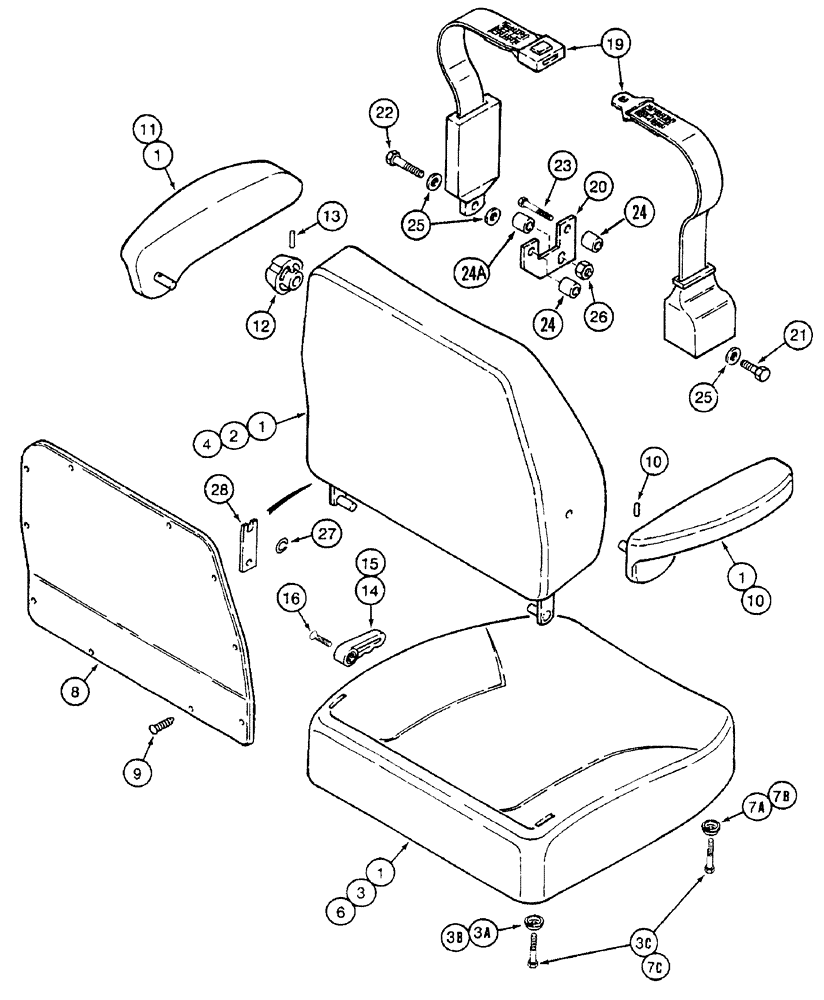

Схема запчастей Case IH 7210 - (9-064) - STANDARD AIR SUSPENSION SEAT - CUSHION, ARM REST & SEAT BELT, TRACTOR S/N JJA0061559 & AFTER (09) - CHASSIS/ATTACHMENTS
23
7a
3
10
13
24
25
2
1
3b
15
7b
19
7c
20
24a
21
25
14
8
27
11
1
22
4
1
6
26
24
12
10
16
3a
1
9
28
3c

Артикул

Название

Примечание

Количество

1999934C2

SEAT ASSY.

standard air suspension, parts list fig'.s 9-66 - 9-72

1шт.

1

134181A2

PACKAGE

KIT - seat top, without armrest, cushion and backrest, complete

1шт.

2

132886A1

BACKREST

KIT - cloth, with structure

1шт.

132888A2

PACKAGE

KIT - seat cushion, with structure

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - seat, with frame

1шт.

3a

187006A1

CUP

SPACER - cupped, 3/8 inch

2шт.

3b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch

2шт.

3c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

132884A1

BACKREST

KIT - backrest pad only, cloth

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

23шт.

223395A1

PACKAGE

KIT - seat cushion pad

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

32шт.

7a

187006A1

CUP

SPACER - cupped, 3/8 inch

2шт.

7b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch

2шт.

7c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

1999693C1

KIT

CLIP - christmas tree, package of 14, retaining, plastic

1шт.

10

143199A1

ARMREST

right-hand, black, includes armrest and switch cover plug

1шт.

11

1981818C1

ARMREST

KIT - armrest, left-hand, black

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, upper

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

13

38-31016

PIN,5/32" x 1", Coiled

2шт.

14

1974711C1

LEVER

KNOB - backrest tilt

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

17

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not shown, see item 11 on fig.9-66 for knob, order 1999691C1 kit on fig.9-54

1шт.

1344158C3

SAFETY BELT

KIT - seat belt, complete

1шт.

19

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

20

1975957C1

BRACKET

seat belt, left-hand

1шт.

21

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

22

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

23

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

24

1343875C1

SPACER

25/64 ID x 1/2 inch

2шт.

24a

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

1шт.

25

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened

3шт.

26

232-4617

LOCK NUT,7/16"-20, GC

1шт.

27

176091A1

PACKAGE,SERVICE

KIT - retaining, hog ring, package of 48 rings for cushions, package of 50 rings for cushions

1шт.

28

141566A1

LARGE PLATE

PLATE, LARGE reinforcement

1шт.

Выбрано товаров: 42
