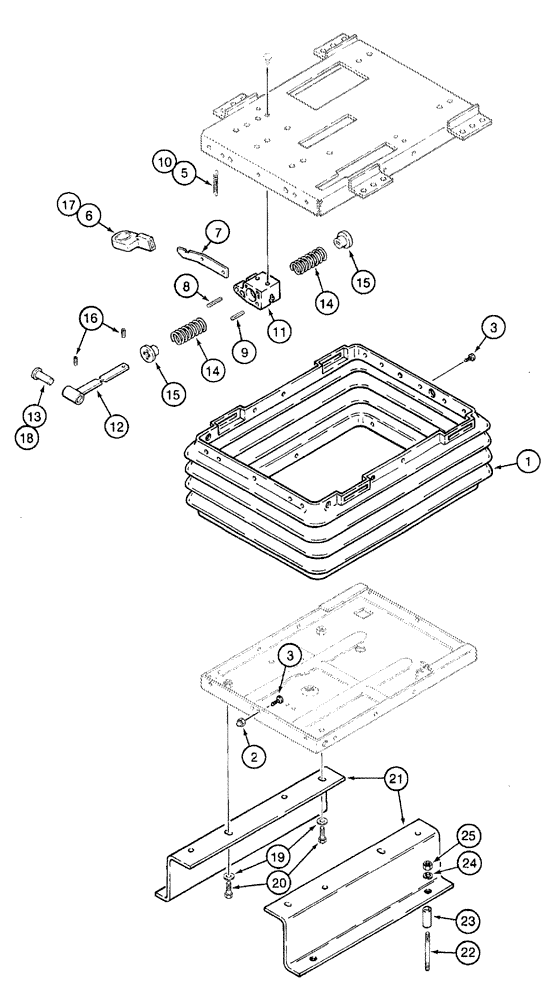

Запчасти Case IH 7210 (9-062) - STANDARD AIR SUSPENSION SEAT - BOOT & MOUNTS, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1999934C1
SEAT ASSY.
standard air suspension, parts list fig'.s 9-54 - 9-58
1шт.
1990648C5
PACKAGE
KIT - suspension, service, parts list fig'.s 9-56 - 9-58, replaces 1990648C3 suspension kit
1шт.
1990647C2
KIT
KIT - boot, suspension, with buttons
1шт.
1
NSS
NOT SOLD SEPARAT
BOOT - suspension
1шт.
132872A1
KIT
Boot pin, package of 23 retainers and 3 dome nuts
1шт.
2
NSS
NOT SOLD SEPARAT
NUT - dome
3шт.
3
NSS
NOT SOLD SEPARAT
CLIP - retaining, plastic
23шт.
4
NSS
NOT SOLD SEPARAT
CLIP - dart, not shown
3шт.
5
NSS
NOT SOLD SEPARAT
SPRING - isolator latch lock, order 1990645C1 kit below
1шт.
1990645C1
LATCH
ASSEMBLY - isolator, fore and aft
1шт.
6
NSS
NOT SOLD SEPARAT
KNOB - isolator control, fore and aft
1шт.
7
NSS
NOT SOLD SEPARAT
LATCH - isolator
1шт.
8
NSS
NOT SOLD SEPARAT
PIN - roll, 1/4 x 1-7/8 inch
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - roll, 3/32 x 5/8 inch
1шт.
10
NSS
NOT SOLD SEPARAT
SPRING - extension, isolator latch lock
1шт.
11
NSS
NOT SOLD SEPARAT
BLOCK - isolator
1шт.
12
NSS
NOT SOLD SEPARAT
BAR - spring
1шт.
13
NSS
NOT SOLD SEPARAT
BEARING - isolator latch tube
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - compression
2шт.
15
NSS
NOT SOLD SEPARAT
BUSHING - spring
2шт.
16
NSS
NOT SOLD SEPARAT
PIN - roll, 1/4 x 1 inch
2шт.
17
NSS
NOT SOLD SEPARAT
KNOB - isolator control, fore/aft, included in 1999692C1 knob kit on fig.9-58
1шт.
18
NSS
NOT SOLD SEPARAT
BEARING - isolator latch tube, included in 1990644C2 roller and bearing kit on fig. 9-58
1шт.
19
495-11034
WASHER,5/16", SAE
(flat, 11/32 x 11/16 x 1/16")
4шт.
20
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
4шт.
21
1977735C1
SUPPORT
BRACKET - mounting, seat
2шт.
22
1954650C1
STUD
8 x 80 mm
4шт.
23
F15988
SPACER
seat mounting
4шт.
24
892-11008
LOCK WASHER,8mm ID
4шт.
25
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
