Запчасти Case IH 7210 (9-058) - STANDARD AIR SUSPENSION SEAT - SUSPENSION, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS

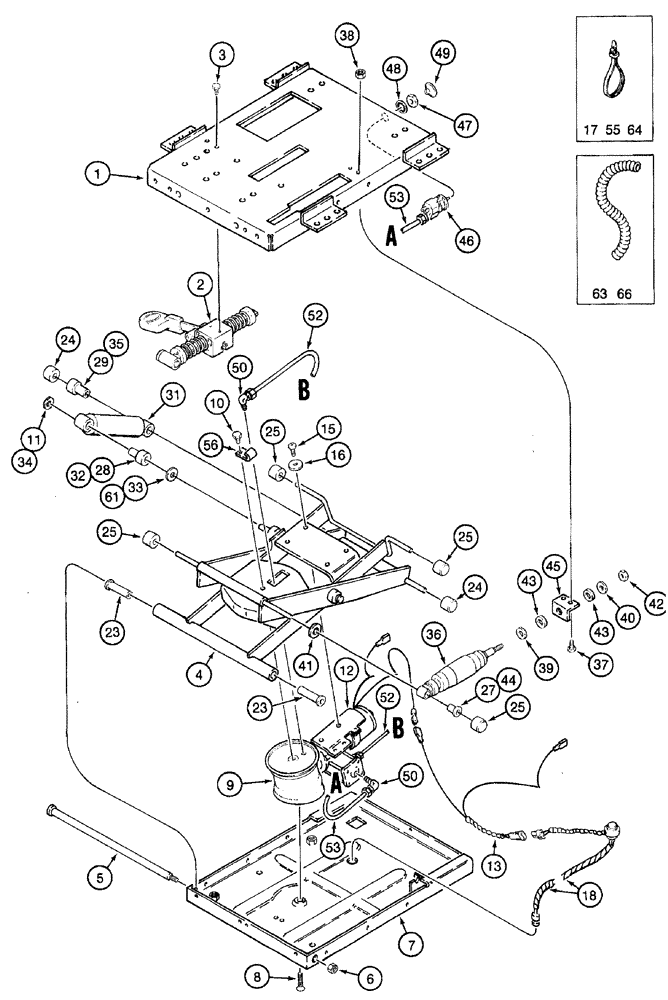

Схема запчастей Case IH 7210 - (9-058) - STANDARD AIR SUSPENSION SEAT - SUSPENSION, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS
32
16
29
61
25
64
44
35
13
31
10
52
45
23
43
42
50
12
53
7
56
9
5
2
25
6
49
23
52
40
33
63
53
17
43
39
55
1
15
4
27
46
25
8
24
25
48
28
18
41
50
24
3
36
37
47
38
11
34
66

Артикул

Название

Примечание

Количество

1999934C1

SEAT ASSY.

standard air suspension, parts list fig'.s 9-58 - 9-62

1шт.

1990648C5

PACKAGE

KIT - suspension, service, parts list fig'.s 9-56 - 9-62, replaces 1990648C3 suspension kit

1шт.

1

1990642C1

HOUSING

upper suspension

1шт.

2

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, component parts not serviced separately, see fig. 9-62 for exploded view of parts

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

4

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

5

A49529

SHAFT

bushing tube

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

1шт.

7

1981834C1

HOUSING

lower

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

9

1981842C1

SPRING

air, no longer available, order 197793A1 kit on fig. 9-68

1шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

1999947C3

COMPRESSOR

KIT

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

13

134237A2

HARNESS

compressor wire, replaces 134237A1 harness

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 OD, not used, not shown

2шт.

15

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

16

495-31022

WASHER,#10

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

18

134456A1

HARNESS

wire adapter, with grommet

1шт.

19

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing, not shown, see item 14 on fig. 9-56 for bumper

2шт.

1990647C2

KIT

KIT - boot, suspension, with buttons, not shown, see fig. 9-62 for illustration of boot kit

1шт.

20

NSS

NOT SOLD SEPARAT

BOOT - suspension, not shown

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - dome, not shown

3шт.

22

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic, not shown

23шт.

22a

NSS

NOT SOLD SEPARAT

CLIP - dart, plastic, not shown

3шт.

1990644C2

PACKAGE

KIT - rollers and bearings, no longer available, order 180594A3 kit on fig. 9-68

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

24

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

26

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see item 13 or 18 on fig. 9-62 for bearing

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

1344250C2

KIT

KIT - shock absorber, suspension

1шт.

31

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

33

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

227546A1

KIT

KIT - shock, fore/aft, replaces 1990646C3 shock kit

1шт.

36

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

37

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

38

231-1444

NUT,1/4"-20, GB

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - flat, 21/64 x 1 x 5/64 inch

1шт.

41

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

42

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

43

A49679

BUSHING

rubber

2шт.

44

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

45

1981845C1

ANGLE

mounting, shock mounting

1шт.

1981852C3

SWITCH

ASSEMBLY - air control, valve, replaces 1981852C2

1шт.

46

NSS

NOT SOLD SEPARAT

SWITCH - air control

1шт.

47

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 5/8 inch NF

1шт.

48

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

1шт.

49

1987186C2

KNOB

KNOB - switch, air suspension, replaces 1987186C1 knob

1шт.

1990548C4

KIT

KIT - air line and fittings, includes (2) elbows, (1 ) tee, (2) adapters, 3.5 feet nylon tubing, (5) tie straps and (1) J-clip

1шт.

50

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

51

NSS

NOT SOLD SEPARAT

TEE - male, 5/32 x 5/32 tube x 1/8 NPT, not shown, not used

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch

1шт.

53

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch

1шт.

54

NSS

NOT SOLD SEPARAT

ADAPTER - tube, plastic, not used, not shown

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

56

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, not shown

1шт.

57

NSS

NOT SOLD SEPARAT

KNOB - swivel latch, not used, not shown

1шт.

58

NSS

NOT SOLD SEPARAT

KNOB - lateral isolator, not used, not shown

1шт.

59

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator latch assembly, not shown, see item 17 on fig. 9-62 for knob

1шт.

60

NSS

NOT SOLD SEPARAT

SPRING - isolator latch lock, not shown, see item 5 on fig. 9-62 for spring, order 1990645C1 kit on fig. 9-62

1шт.

61

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

63

1343833C1

TUBE

GUARD - corrugated, 3/8 ID x 24 inch long, cut from 179026A1

1шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

65

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch, not shown, see item 13 on fig. 9-56 for screw

2шт.

66

135536A1

TUBE

SLEEVE - guard, 419 mm (16-1/2 inch) long, cut from 179026A1

1шт.

67

133422A1

BUMPER

down stop, not shown, see item 12 on fig. 9-56

2шт.

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.
