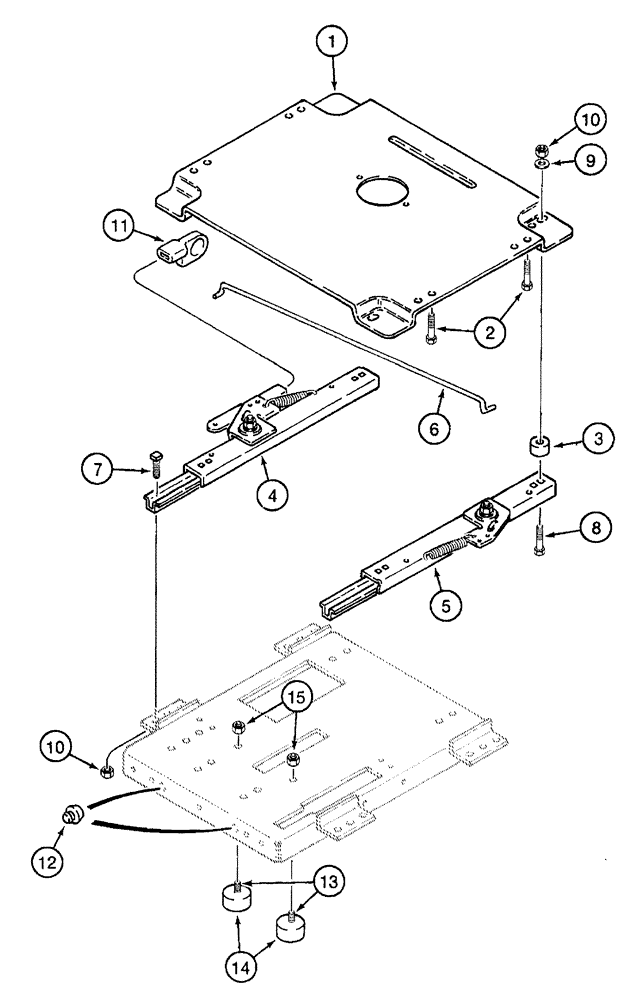

Запчасти Case IH 7210 (9-056) - STANDARD AIR SUSPENSION SEAT - MOUNT PLATE & SLIDES, PRIOR TO TRACTOR S/N JJA0061559 (09) - CHASSIS/ATTACHMENTS

1999934C1

SEAT ASSY.

standard air suspension, parts list fig'.s 9-58 - 9-62

1шт.

1

134180A1

PLATE

seat adapter

1шт.

2

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

3

134144A1

SPACER

plate

4шт.

1344248C1

SLIDE

KIT - double locking

1шт.

4

NSS

NOT SOLD SEPARAT

SLIDE - locking, with handle

1шт.

5

NSS

NOT SOLD SEPARAT

SLIDE - locking

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - slide

1шт.

7

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

10

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

8шт.

11

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, order 1999691C1 knob kit on fig. 9-54

1шт.

1990648C5

PACKAGE

KIT - suspension, service, parts list fig'.s 9-58 - 9-62, replaces 1990648C3 kit

1шт.

12

133422A1

BUMPER

down stop

2шт.

13

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch

2шт.

14

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing

2шт.

15

231-1444

NUT,1/4"-20, GB

2шт.
