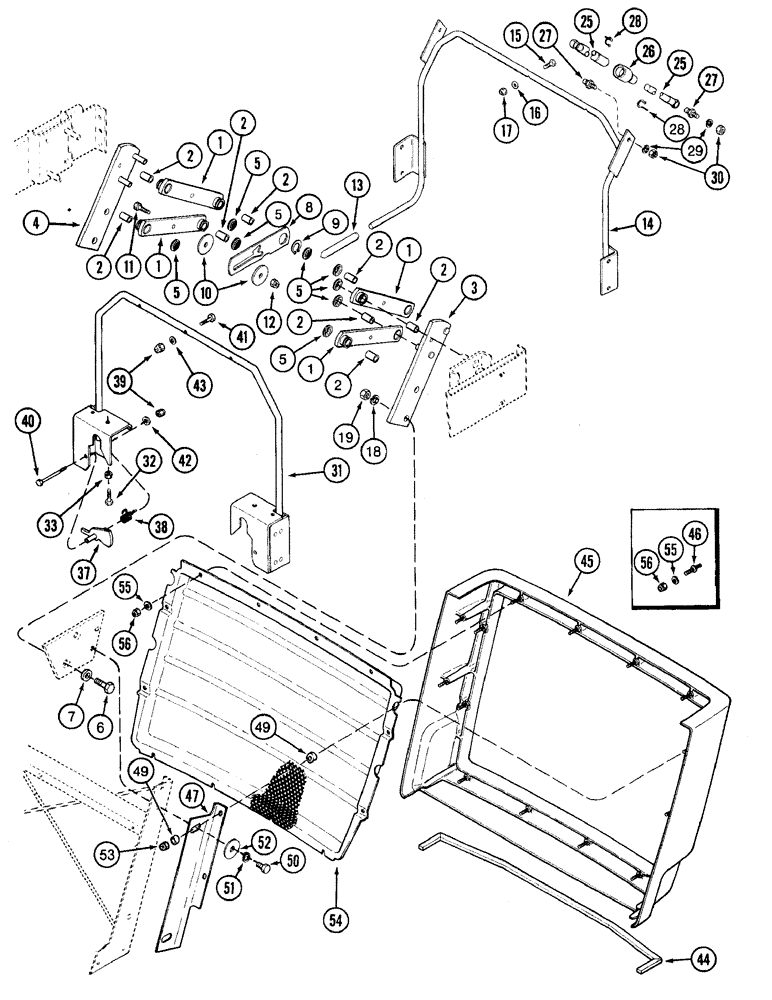

Запчасти Case IH 7210 (9-034) - HOOD SUPPORTS, HINGE AND LATCH AND LOWER GRILLE, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

1

1968100C3

DRAG LINK

ASSEMBLY - hood tilt

4шт.

2

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

hood tilt link

2шт.

3

1334698C4

SUPPORT

BRACKET - hinge support, right

1шт.

4

1334697C4

SUPPORT

BRACKET - hinge support, left

1шт.

1348418C1

COVER

STRIP - non-slip, not shown

1шт.

5

131-425

PUSH-ON NUT,Push, 1/2"

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

1976756C2

WASHER

flat, hinge

4шт.

8

A185252

LEVER

hood lock

1шт.

9

100-11100

SNAP RING,#100, Ext

Hood lock lever

1шт.

10

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

131-206

NUT,3/8"-16

Heavy hex, self-locking

1шт.

13

1348231C1

HANDLE

GRIP - hood

1шт.

14

1960835C3

SUPPORT

BRACE - hood, center and cylinder

1шт.

16

495-81286

WASHER,.281" x 1 1/8" x .060"

3шт.

17

231-1444

NUT,1/4"-20, GB

3шт.

18

892-11012

LOCK WASHER,M12

4шт.

19

829-1412

NUT,M12, Cl 10.9

4шт.

25

1968168C3

GAS STRUT

CYLINDER ASSEMBLY - hood tilt

2шт.

26

NSS

NOT SOLD SEPARAT

SEAL - gas cylinder, order 1968168C3 cylinder assembly

1шт.

27

3234063R1

BALL STUD,M10 x 1.5

STUD

4шт.

28

3233348R1

CLIP

retaining, ball stud

4шт.

29

892-11010

LOCK WASHER,M10

4шт.

30

825-1410

NUT,M10, Cl 8

4шт.

31

1289137C1

BRACE

hood support, rear

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

33

425-105

NUT,5/16"-18, G5

2шт.

37

A147728

TRIGGER

LATCH - hood lock

2шт.

38

1978450C2

SPRING

hood lock

2шт.

39

231-1444

NUT,1/4"-20, GB

5шт.

40

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

42

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

43

495-81286

WASHER,.281" x 1 1/8" x .060"

3шт.

44

1289381C2

SEAL - foam, adhesive back, 862 mm (33-15/16 inch) long, cut from 1348430C1 bulk seal, lower housing

1шт.

45

105509A1

HOUSING

lower grille

1шт.

46

1968127C1

STUD

1/4 inch NC

1шт.

47

112994A1

ANGLE

grille support, right, shown

1шт.

48

112995A1

ANGLE

grille support, left

1шт.

49

A147030

SPACER

SPACER - grille screen

8шт.

50

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

51

492-11038

LOCK WASHER,3/8"

4шт.

52

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

4шт.

53

231-1444

NUT,1/4"-20, GB

4шт.

54

1976793C4

SCREEN

lower grille, replaces 1976793C2 screen

1шт.

55

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

12шт.

56

231-1444

NUT,1/4"-20, GB

12шт.

1348430C1

SEAL

foam, adhesive back, 6.4 (1/4) x 12.7 (1/2) x 15240 mm (600 inch) long

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

41

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
